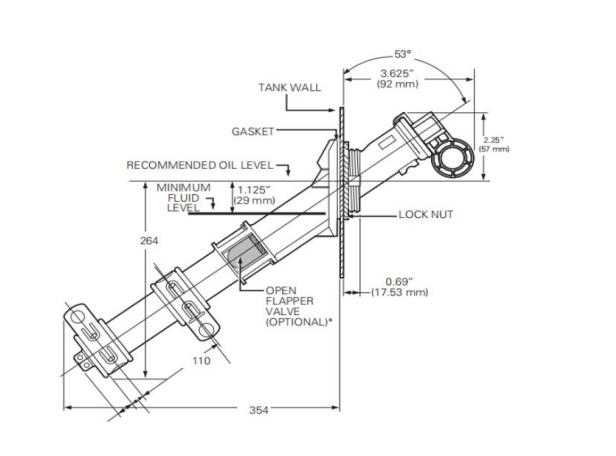

Padmount Transformer Bayonet Fuse Holder 8.3kV 15.5kV 24kV 38kV

Bay-o-net Fuse 8.3kV 15.5kV 24kV 38kV

A "Transformer Bayonet Fuse" typically refers to a specific type of fuse used in electrical transformers. Transformers are devices that transfer electrical energy between two or more circuits through electromagnetic induction.

In transformer applications, bayonet fuses are often used to protect the transformer and the connected electrical circuits from excessive current. These fuses are designed to be easily replaceable and provide a secure and reliable connection.

The bayonet fuse design incorporates a bayonet base, which consists of pins or blades that fit into corresponding slots or sockets in the fuse holder. The fuse is inserted into the holder and rotated to lock it in place. This bayonet connection ensures proper electrical contact and secure mounting of the fuse.

The specific ratings and characteristics of transformer bayonet fuses may vary depending on the application and the size and type of the transformer. These fuses are typically designed to protect against overcurrent conditions and short circuits, and they may have specific voltage and current ratings to match the requirements of the transformer.
