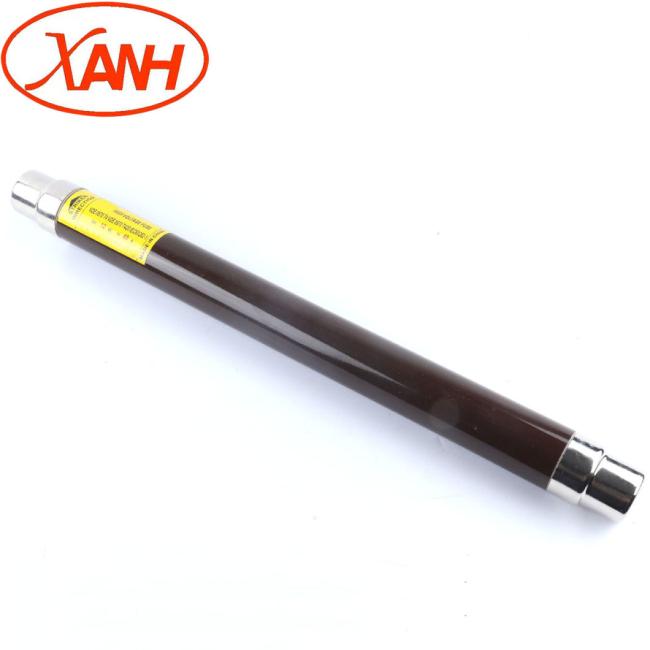

Xrnp Xrnt Series High Voltage Current Limiter Fuse 12kv 20A Electric Operation

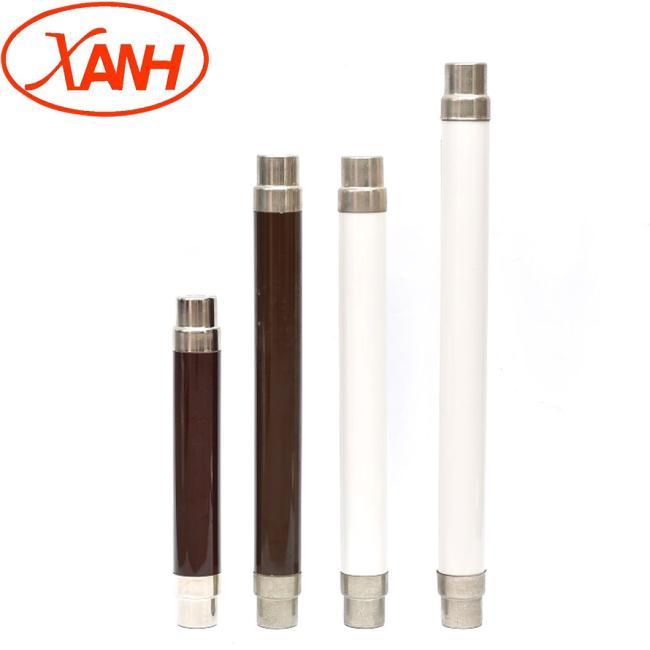

Factory Wholesale Price Xrnp and Xrnt Series High Voltage Current Limiting Fuse Backup Fuse
Product Description
High Voltage Current LImited Back Up Fuse
Protect the Power Equipment
XRNT Type: 12kV, 24kV and 35kV, 3A...315A
For Gas And Air Insulated Switch and Outdoor Switch.
XRNP Type: 12kV, 24kV and 35kV, 0.2A...3.15A
For Current Transformer and Voltage Transformer
Standards:
IEC 60282-1, VDE 0670 Part4, DIN 43625
| Model of fuse | Rating current(A) | Size | Breaking capacity (KA) |
| XRNP1-3.6 | 0.2, 0.3, 0.5, 1, 2, 3.15 4.5 | Ø25*195 | 50 |
| XRNP1-7.2 | |||
| XRNP1-12 | |||
| XRNP1-24 | 0.2, 0.3, 0.5, 1, 2, 3.15 | Ø25*324 | 50 |
| XRNP1-40.5 | Ø25*465 | 31.5 | |
| XRNP2-7.2 | 0.5, 1, 2, 3.15 , 6.3, 10, 16 | Ø51*192 | 50 |
| XRNP3-7.2 | 0.5, 1, 2, 3.15, 6.3, 10 | Ø45*210 | 50 |
| XRNP-7.2 | 0.5, 1, 2, 3.15, 6.3, 10, 16 | Ø51*210 | 50 |
| XRNP2-12 | Ø51*192 | 50 | |
| XRNP3-12 | 0.5, 1, 2, 3.15, 6.3, 10 | Ø45*210 | 50 |
| XRNP2-40.5 | Ø51*465 | 31.5 | |
| XRNP3-40.5 | 0.5, 1, 2, 3.15, 6.3 | Ø45*465 | 31.5 |
| XRNP6-40.5 | 0.5 | Ø40*440 | 31.5 |
These fuses can be used in indoor system of 50Hz and 3.6kV, 7.2kV, 12kV, 24kV, 35kV and 40.5kV. It used together with other switch equipments such as air load break switch, SF6 gas load break switch, vacuum contactors. It can protects electric transformers and other electric equipments against over load current or circuit break current. It is also a neccessary accessoriy for high-voltage switchgear, Ring Main Units, transformer substation.
Design and construction
Wuhuan HV Fuse-links have parallel connected pure silver fuse-elements. The design and method of production of the elements ensures narrow tolerances of time-current characteristics.
The fuse elements are wound on a ceramic support and are attached to the silver plated connection caps by means of spot-welding. The connection caps are fitted inside the silver plated copper end caps by spot welding.
The copper end caps themselves are press-fitted onto the porcelain tube which is glazed inside and outside.
The end caps are furthermore mechanically fixed to the porcelain tube and additionally sealed by a durable elasticsealing medium. This sealing method has been proven over many decades of positive field experience and ensures tightness against ingress of humidity.
Wuhuan HV Fuse-links are available with striker pins of the force 80N and 120N.
The characteristics of both striker pins corresponds to IEC 60282-1, VDE 0670 Part 4 and are of the energy category "medium".
The striker pin system is connected by means of a high resistance parallel conductor. After melting the main fuse elements the striker pin will indicate the operation status of the fuse and open a load break switch or actuate a micro-switch for remote indication.
Wuhuan HV Fuse-links up to and including 160 A with a striker pin of 80 N are equipped with an integrated temperature limiter as standard. The temperature limiter is fitted inside the striker pin system. The XIKAI striker pin system therefore has the following functions:
thermal protection of adjacent equipment, especially SF6 Insulated switchgear
limitation of failure current at the overload region
improved properties for the switch-fuse combinations according IEC 60420
The integrated temperature limiter avoids inadmissible high temperatures - no matter for whatever reason they are
generated - in gas-insulated switchgear or narrow switchgear enclosures. By means of a melting activator
temperatures inside the fuse link enclosure are limited to below approx. 100°C. This design especially considers
continuity of current supply for the end user for as long as possible. The system reacts in such a way that short time
overloads do not cause the fuse to interrupt the circuit unnecessarily. Only when inadmissible values are exceedes the
fuse will open the switch via the striker pin.
Higher temperatures on plastic fuse enclosures in SF6-insulated switchgear can be caused by:
selection of a fuse rating too low for transformer protection
fuses are loaded with fault currents below the minimum operating current
deterioration of fuse links caused by transient fault currents (e.g. lightning strike)
transformer faults currents (e.g. winding short-current)
overloading of the fuse when loaded with currents as described in IEC 420 Test Duty 3
additional temperatures rise because of poor clip fitting
Fuse-links with integrated temperature limiter are compatible with standard Fuse links. All coordination schedules can be used.
Characteristics of the strikers
| Type | Rated Voltage (kV) |
Fuse Current (A) |
Dimension ØA*L(mm) |
Weight (kg) |
Breaking Current (kA) |
| XRNT1-7.2 | 7.2 | 3.15,4,5,6.3,10,16,20,25,31.5,40,50,63 | Ø51*292 | 1.8 | 50 |
| 71,80,100,125,160 | Ø76*292 | 3.8 | |||
| 200,224,250 | Ø88*292 | 3.8 | |||
| XRNT1-12 | 12 | 2,3.15,4,5,6.3,10,16,20,25,31.5,40,50,63 | Ø51*292 | 1.8 | 50 |
| 71,80 | Ø76*292 | 4.6 | |||
| 100,125 | Ø76*292 | 3.8 | |||
| 160,200 | Ø88*292 | 3.8 | |||
| 224,250 | Ø88*442 | 3.4 | |||
| 315 | Ø88*537 | 8.2 | |||
| XRNT1-24 | 24 | 6.3,10,16,20,25,31.5 | Ø51*442 | 2.3 | 50 |
| 40,50,63,71,80 | Ø76*442 | 4.6 | |||
| 100,125 | Ø88*442 | 5.4 | 40 | ||
| 160,200 | Ø88*537 | 8.5 | 31.5 |
1.Are you manufacture?
We are a professional factory with more than 10 years of experience,Our projects supplied to Airprot/Subway/Railway/power station.
2.What is your technical advantages?
Our engineers worked in the power distribution industry field for 20~30 years.In particular, in non-standard customization of electric field, High altitude, non-standard voltage frequency field.
3.What is your price advantages?
we have 5 branch factorier for electric components,all raw materials are one stop shopping,so we can save the value for you!
4.How about your quality advantage?
We are 100% guarantee the quality for 3 years.
5.How about your delivery time?
The delivery time with 1-6 working days after get your deposit.Our factory is located in
Xi'an , Shannxi . In terms of quality and strength, we are both ahead of the market .
