Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate
Price:
Negotiate
MOQ:
3050Meters
Delivery Time:
7-30days
Brand:
XSD Cable
Product Description
Product Description:
AWM 1032 90ºC 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate
-Rated temperature: 90ºC
-Rated voltage: 1000V/1200V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

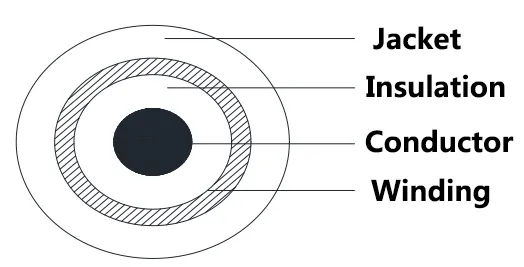

![Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate]()
![Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate]()
![]()
![]()
![]()
-Rated temperature: 90ºC
-Rated voltage: 1000V/1200V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
Technical Parameters:
| Attribute | Value |
|---|---|
| Product Name | Single Conductor Wire |
| Ul Certification | 2468 |
| Application | General Purpose |
| Rated Temperature | 80°C |
| Stranding | Solid |
| Ul Style | 2468 |
| Color | Black |
| Conductor Strand | Solid |
| Conductor Size | 18 AWG |
| Conductor | Copper |
| Temperature Rating | 90°C |
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) |
|||
| AWG | Construction (No./mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
|
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 150 |
| 24 | 7/0.20 | 0.60 | 0.26 | 1.12 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 36.7 |
| 18 | 16/0.254 | 1.18 | 0.27 | 1.70 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.31 | 14.6 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 8.96 |
| 12 | 65/0.254 | 2.36 | 0.60 | 3.56 | 5.64 |
| 10 | 66/0.32 | 3.00 | 0.60 | 4.20 | 3.55 |
Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.
★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.
★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.
