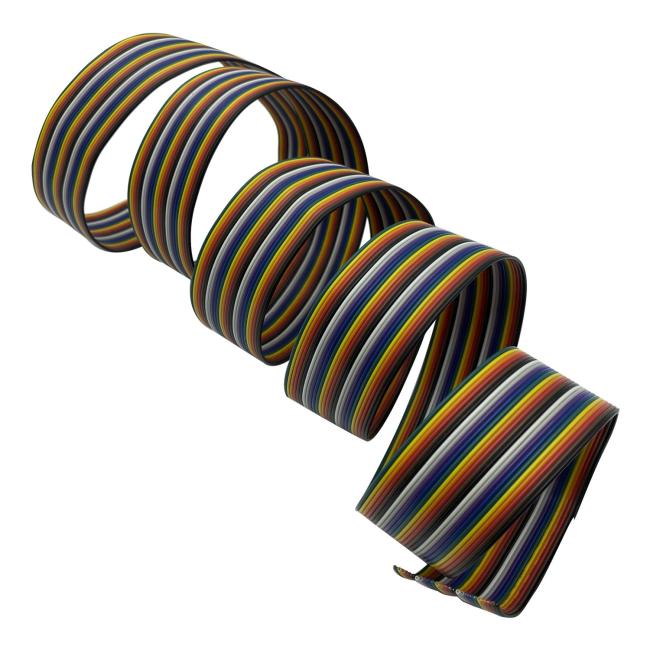

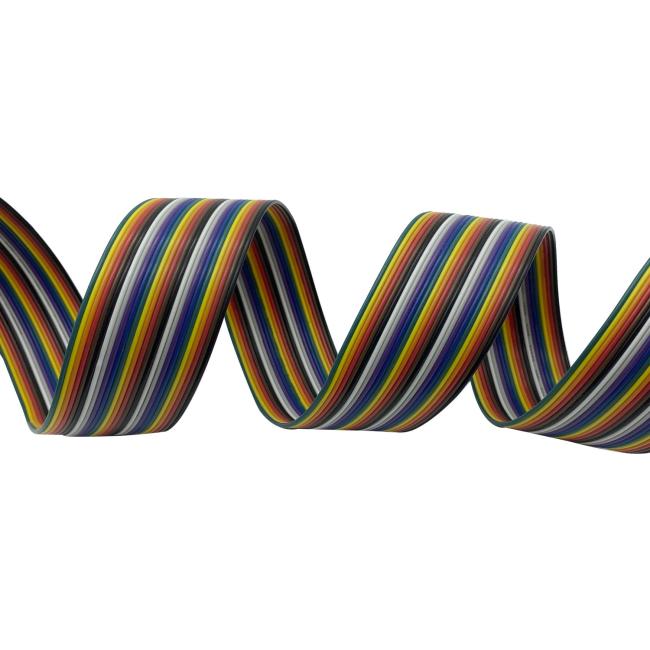

Flat Rainbow Electric Cable FEP High Temperature 150℃ OEM

Price Negotiable

Price: Negotiate

MOQ: 300sets

Delivery Time: 7-30days

Brand: XSD Cable

Product Description

Conductor			Insulation		Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
28	1/0.32 7/0.12	0.32 0.36	0.305 0.305	0.87 0.91	381.00
26	7/0.16 19/0.10	0.48 0.48	0.305 0.305	1.09 1.11	150.00
24	1/0.50 7/0.20 19/0.12	0.5 0.6 0.6	0.305 0.305 0.305	1.11 1.21 1.21	94.20
22	1/0.65 7/0.254 19/0.15	0.65 0.76 0.75	0.33 0.33 0.33	1.31 1.42 1.41	59.40
20	1/0.81 7/0.31 26/0.16	0.81 0.93 0.93	0.33 0.33 0.33	1.47 1.59 1.59	36.70
18	1/1.02 7/0.39 19/0.235	1.02 1.17 1.17	0.33 0.33 0.33	1.68 1.83 1.83	23.20
16	1/1.30 7/0.49 19/0.30	1.30 1.47 1.50	0.33 0.33 0.33	1.96 2.13 2.16	14.60
14	19/0.37	1.85	0.33	2.51	8.96
※The above datasheet is for reference only, please refer to the final specification.

Flat Rainbow Electric Cable FEP High Temperature 150℃ OEM

Rated voltage: 300V
Rated temperature: 150ºC
Insulation Material: FEP
Conductor: Tinned Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment.

Q: What is the brand name of this product?
A: The brand name of this product is XSD Cable.
Q: What is the model number of this product?
A: The model number of this product is Flat cable.
Q: Where is this product manufactured?
A: This product is manufactured in Guangdong, China.
Q: What certifications does this product have?
A: This product is certified by UL, CE, and ISO:9001.
Q: Can the price of this product be negotiated?
A: Yes, the price of this product can be negotiated.
Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 7-30 days.
Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T.
