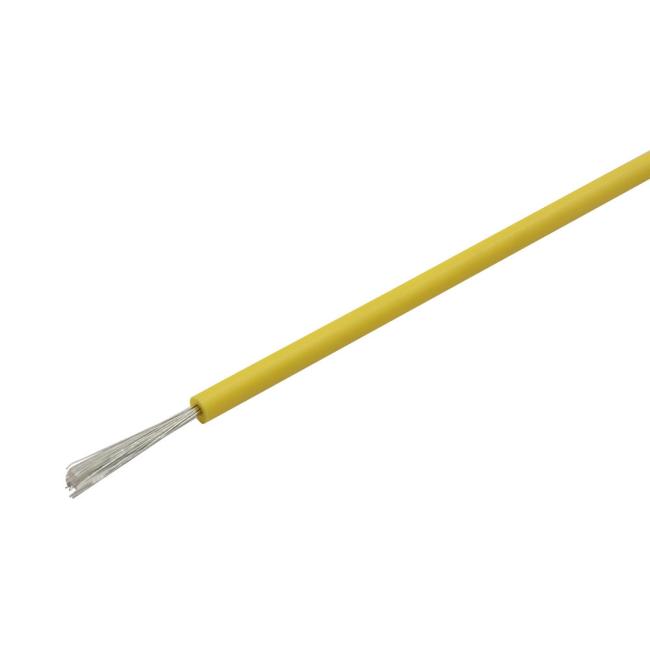

UL3619 XLPE Wire LSZH AWM Wire
Product Description:
UL3619 XLPE Coated Single Core Crosslinking Heat Resistant
-
Rated Voltage: 150V
-
Rated Temperature: 105ºC
-
Insulation Material: XLPE
-
Conductor: Tinned or Bare, Stranded or Solid Copper
-
Reference Standard: UL758, UL1581, C22.2 No.210
-
Uniform insulation thickness of wire to ensure easy stripping and cutting.
-
For internal wiring of electrical equipment, home appliance, transformers, motors, ballasts, solenoids, etc.
Technical Parameters:
| Conductor | Insulation | Max. Cond. Resistance at 20°C (Ω/km) |
|||
| AWG | Construction (No./mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
|
| 30 | 7/0.10 | 0.30 | 0.20 | 0.70 | 381.00 |
| 28 | 7/0.127 | 0.38 | 0.20 | 0.78 | 239.00 |
| 26 | 7/0.16 | 0.48 | 0.20 | 0.88 | 150.00 |
| 24 | 11/0.16 | 0.61 | 0.20 | 1.01 | 94.20 |
| 22 | 17/0.16 | 0.76 | 0.20 | 1.16 | 59.40 |
| 20 | 26/0.16 | 0.94 | 0.20 | 1.34 | 37.40 |
| ※The above datasheet is for reference only, please refer to the final specificatio | |||||
Packing and Shipping:
Packaging and Shipping:
Single Conductor Wire is typically packaged in spools or coils, depending on the length and gauge of the wire. Each spool or coil is then placed in a sturdy cardboard box for protection during shipping.
The boxes are labeled with the product name, gauge, and length of the wire for easy identification. In addition, each box is marked with handling instructions and any necessary safety warnings.
For smaller orders, the wire may be packaged in plastic bags or wrapped in bubble wrap before being placed in boxes. This ensures that the wire stays organized and protected during transportation.
Shipping is usually done through a reliable courier service, such as UPS or FedEx. The boxes are carefully packed and sealed to prevent any damage during transit.
For larger orders, the wire may be shipped on pallets and delivered by a freight carrier. The pallets are securely wrapped and strapped to prevent shifting and damage during transport.
We strive to ensure that our Single Conductor Wire arrives at its destination in excellent condition, ready for use.
