High Pressure Hydraulic OK Piston Compact Seal
Price:
$0.10/pieces >=100 pieces
MOQ:
100 pieces
Delivery Time:
Negotiable
Brand:
CRW
Product Description
Product Description
Title goes here.

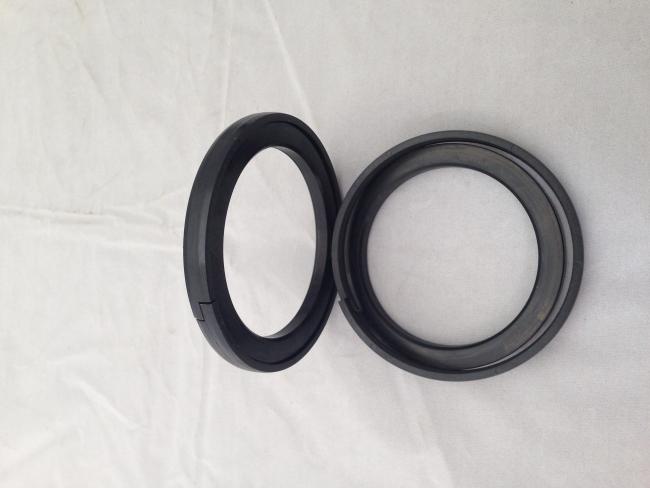

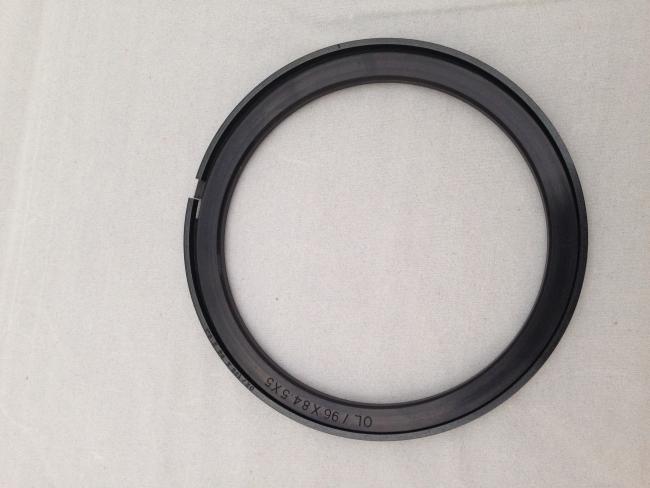

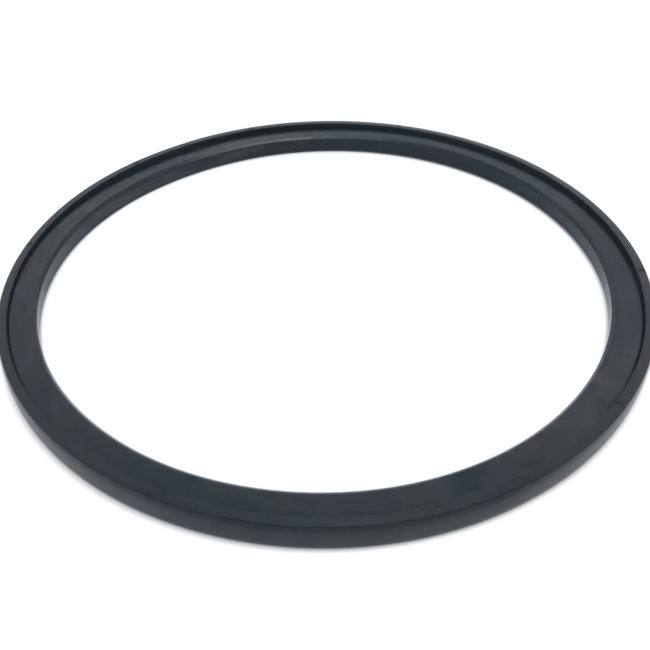

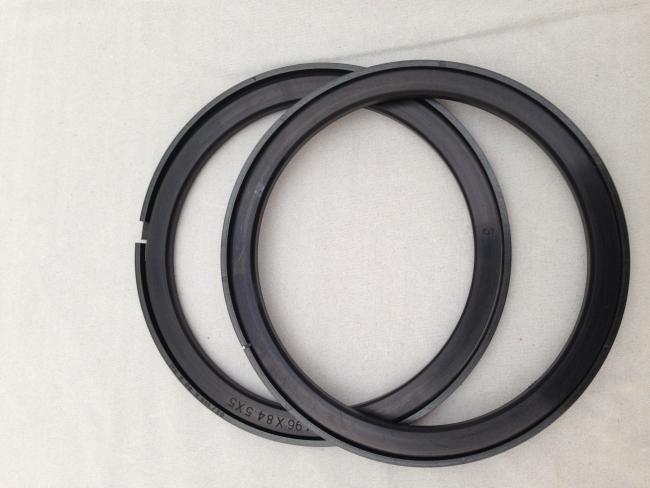

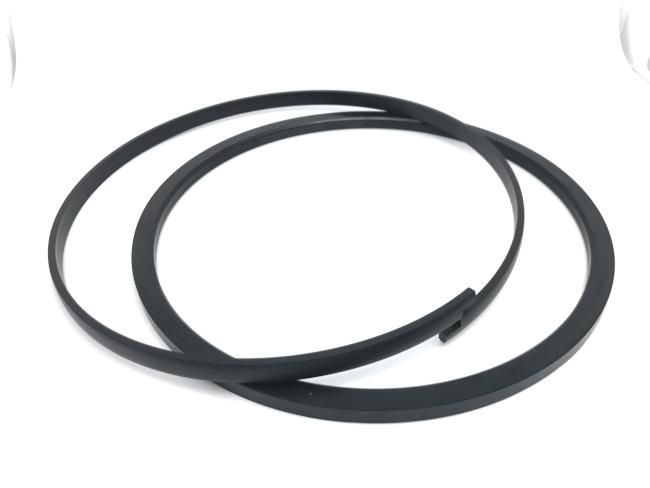

OK piston combination seal The OK seal is mainly used for the piston seal of hydraulic cylinder. It is composed of two components, one is a seal ring with a high hardness opening made of special materials, and the other is a rubber rectangular ring which can provide elastic force. Because the sealing ring adopts the open structure, it solves the problem that special tools are needed to install the ring. In addition, the sealing ring is very hard, not easy to scratch, break, extrusion, so it is more convenient than the tecon material sealing ring installation and not easy to damage. Advantages: - Small installation space, simple groove, simple and convenient installation, no need to match tools. - Resistant to impact load. - Low friction resistance, no viscous phenomenon. - Excellent abrasion resistance. - Due to the excellent material characteristics of the open sealing ring, it has good extrusion resistance, even in high pressure and large gap use effect is good. Technical data: Movement speed :≦1m/s Working pressure: Maximum 50Mpa Operating temperature -30°C~+110°C Material: Open seal ring: composite thermoplastic material. Rectangular rubber body: butadiene ubber, hardness 70A. Type OK piston seals are primarily used in heavy hydraulic equipment, especially for double acting pistons, suitable for pressure up to 500bar
Specification
item | value |
Size | custom size |
Place of Origin | China |
Hebei | |
Brand Name | CRW |
Model Number | OK seal |
Product name | OK seal |
Standard or Nonstandard | Standard |
Material | POM NBR |
Color | Black |
Pressure | ≤50MPa |
Working temperature | -35~+110℃ |
Style | Hydraulic |
Application | Excavator Cylinder |
Feature | Low friction resistance |
Packing | Carton |
