Hydraulic cylinder seals are used to seal the opening between various components in the hydraulic cylinder.

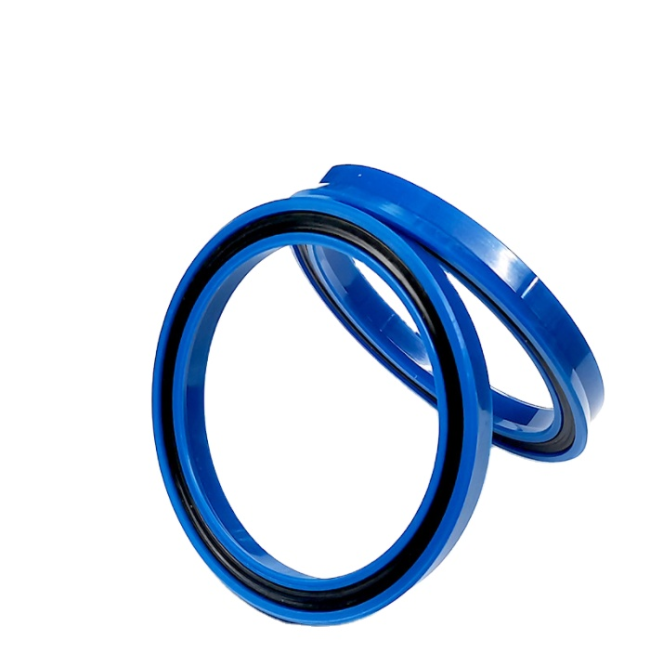

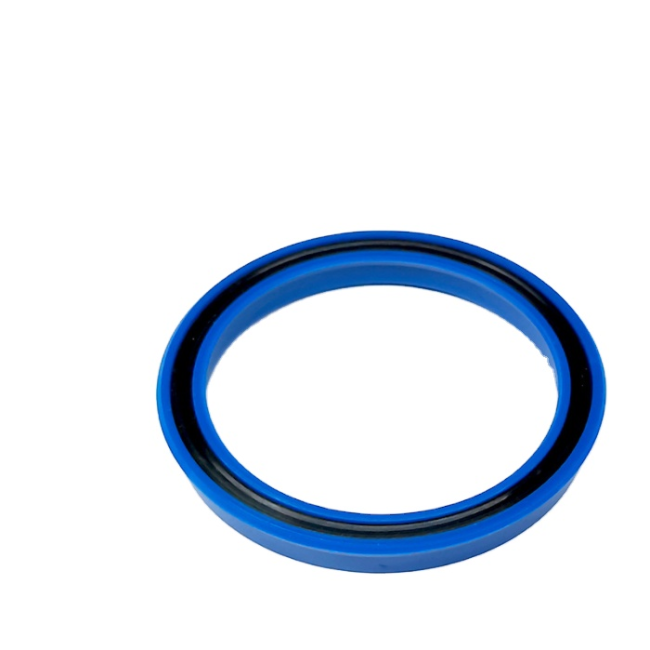

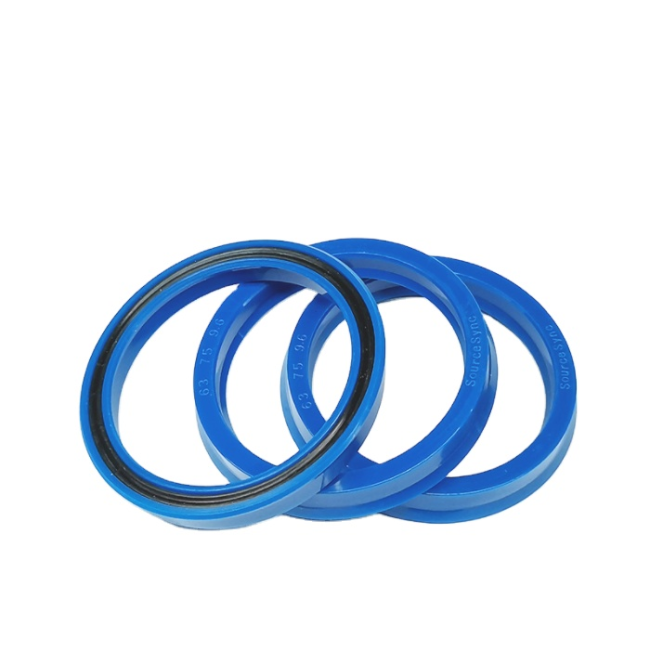

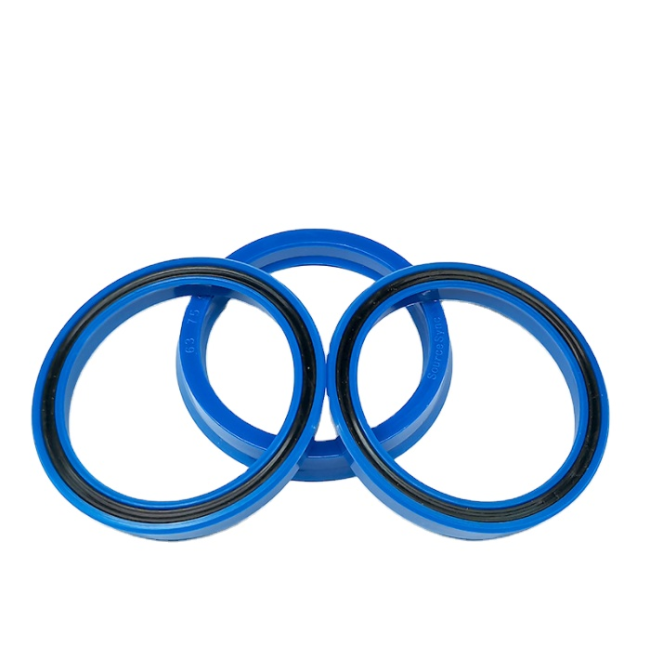

Polyurethane U-cup profile; single-acting; may be used in double-acting cylinders when using two seals in back-to-back arrangement; suitable for medium duty applications.
U-CUP SEAL SIZE LIST | ||||||
6.3*16.3*8 | 25*35*8 | 65*85*12 | 110*130*16 | |||
8*18*8 | 28*43*10 | 67*87*12 | 112*132*16 | |||
10*20*8 | 30*45*10 | 71*91*12 | 118*138*16 | |||
12.5*22.5*8 | 35*50*10 | 75*95*12 | 120*140*16 | |||
14*24*8 | 40*55*10 | 80*100*12 | 125*145*16 | |||
15*25*8 | 45*60*10 | 85*105*12 | 130*150*16 | |||
16*26*8 | 53*73*10 | 90*110*12 | 140*160*16 | |||
18*28*8 | 55*75*10 | 95*115*12 | 150*170*16 | |||
20*30*8 | 60*80*12 | 100*120*12 | 31.5*46.5*10 | |||
22.4*32.4*8 | 63*83*12 | 105*125*16 | ||||
Name: H Wiper
Feature: Secondary U Cup; Radius wiper lip
Application:Low pressure seal; Resists ingression;
Reduce oil leaks
Temperature range: -40 °F to +200 °Fconsumption, high Double lip wiper is designed for light duty applications. It is ideal for demanding seal applications in most hydraulic fluids
The sealing lips are accurately machined trimmed to ensure good low pressure sealing while the material resists extrusion at high pressures.
single-acting U-cup seals made of thermoplastic polyurethane (TPU). They are suitable for pressures up to 350 bar
od seal profiles are designed with similar inside and outside sealing geometry and, therefore, can also be used as single-acting piston seals in single- or double-acting cylinders
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 55 (L) * 60(W) * 45 (D) | |
Weight | 30kg | |
Packaging Details | The normal package is paper box(Size: L*W*H). Or pack it according to customers special request. | |
Packaging | ||
Size | 55 (L) * 55 (W) * 60 (D) | |
Weight | 35KG | |
Packaging Details | The normal package is plastic round and paper box for outter(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
