Highway Guardrail Traffic Road Barrier Stainless Steel Metal Crash Barrier
Price:
$24.00/meters 10-999 meters
MOQ:
10 meters
Delivery Time:
Negotiable
Brand:
UKEN
Product Description
Traffic Safety Road Barrier Guard Rail Stainless Steel Metal Crash Barrier Highway Guardrail
Product Description
10+ YEARS GUARDRAIL ODM/OEM EXPERIENCE

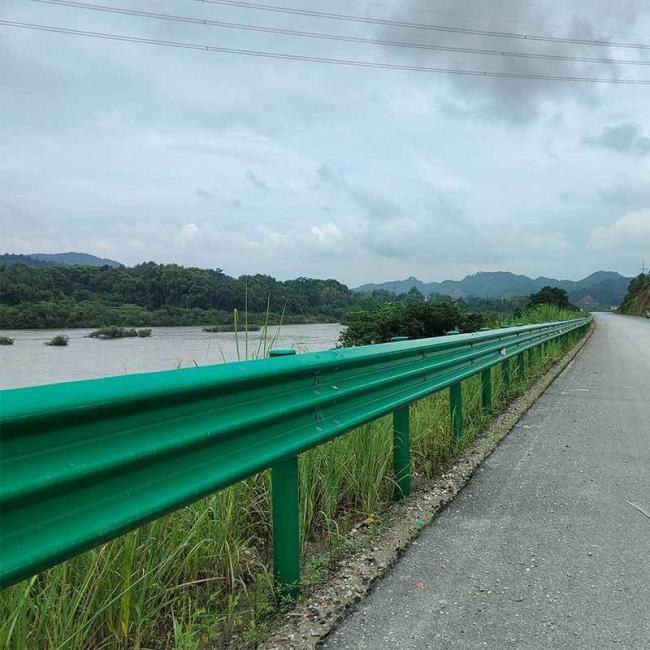

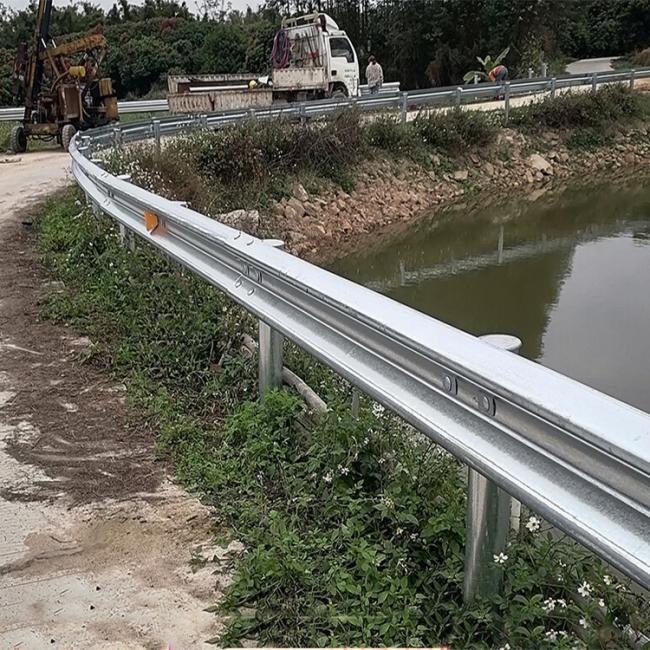

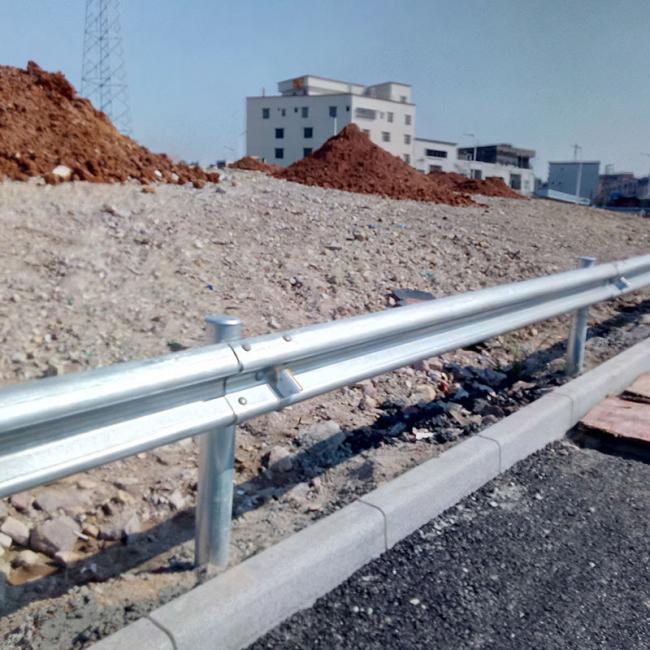

W-beam highway guardrails are widely used for highway safety, and fixed on the side of the roads or middle of the road especially on curves and slopes for preventing vehicles from riding out from roads.
|
|

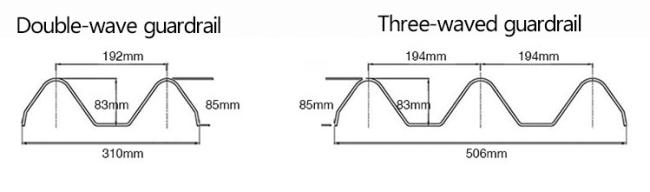

L:3200/3810/4000/4300/4320
W:306/310/312/380 Height : 80/82/83/85 Thickness :2.75/3/4mm. Available in different sizes. |
|
Size of post
|
As standard or customized
|
|
Guardrail material
|
Q235,Q345
|
|
Guardrail beam style
|
W beam,thrie beam
|
|
Surface treatment
|
Hot dipped galvanized or plastic sprayed coating
|
|
Guardrail standard
|
JT/T2811995(corrugated sheet steel beams for expressway/highway guardrail-China)
AASHTO M180(corrugated sheet steel beams for expressway/highway guardrail-USA) RAL RG620(corrugated sheet steel beams for expressway/highway guardrail-German) AS NZS 3845-1999(corrugated sheet steel beams for expressway/highway guardrail-AU/NZS) |
|
|
Grade Q235B (equivalent to S235JR,according to DIN EN 10025 and GR. according to ASTM A283M)
Q345(S355JR/ASTM A529M 1994) |
|
Full side galvanized
|
550 (80µ) / 610 (85µ) / 1100 (160µ) / 1200 g/m2 (170µ) or as per your request
|
|
|
Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,
environmental protection, etc. |
|
Guardrail relevant parts
|
Post, Spacer (C, U,H and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors
|
|
Delivery
|
10-15 working days
|
|
MOQ
|
10 Meters
|
Features:
1. The barriers ensure minimum damage to the vehicle and its occupants. 2. During collision, the beam absorbs maximum energy by flattening out laterally and restrains the vehicle from veering over. 3. Preventing vehicles from skidding back onto the carriageway by controlling exit angles through gradual deceleration and effective redirection of the vehicle back on to the road. 4. To enable quick repairs in case of accidents.

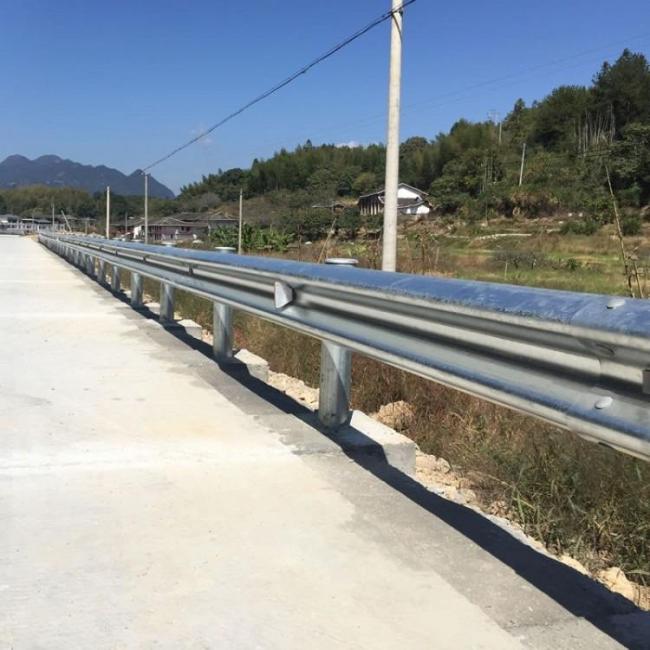

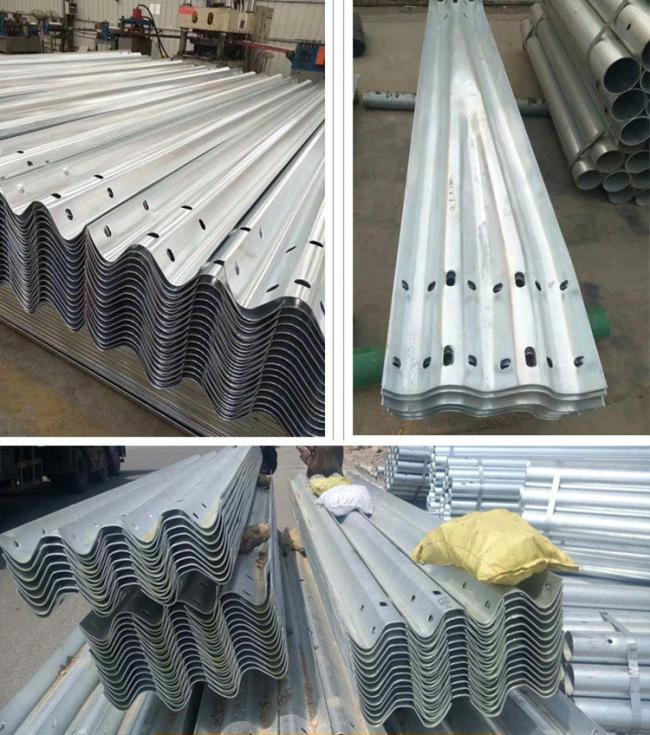

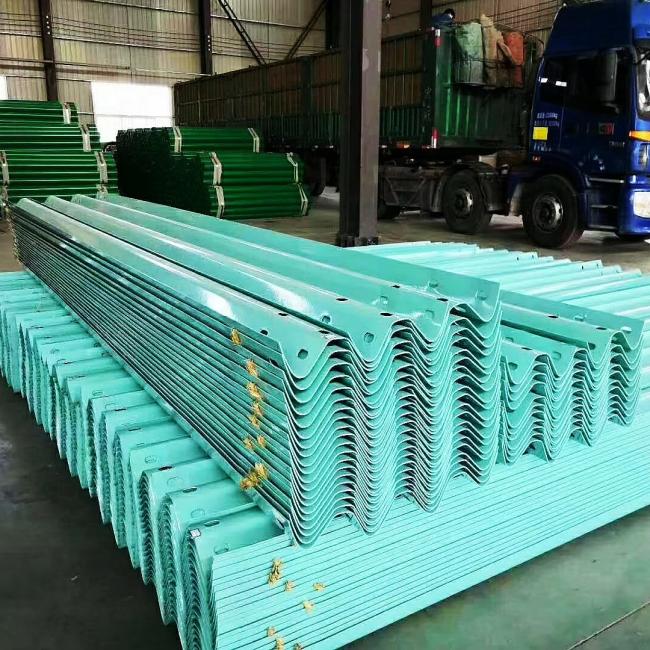

Product Display

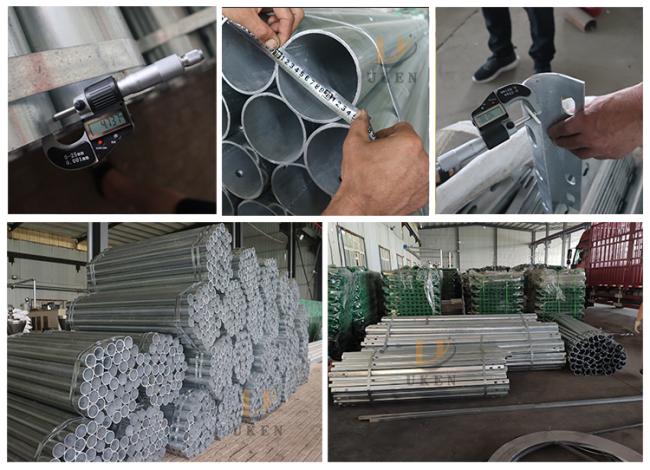

Quality Control
Company Profile
The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the different construction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
>>> Customer and Team <<<

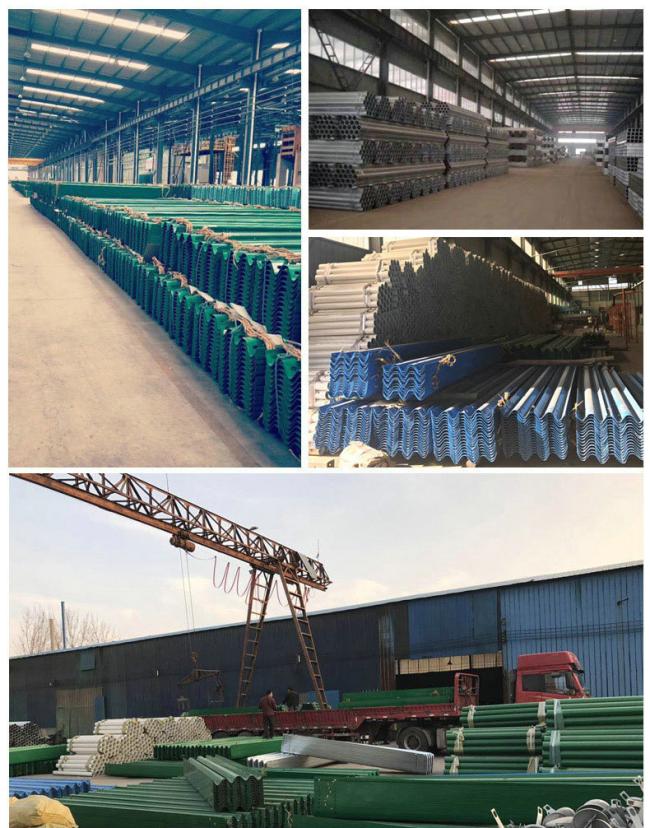

>>> Warehouse and Shipping <<<
