Industrial 12KW Electric Steam Generator Low Noise And Small Size
Product Name: High Pressure Electric Steam Generator
Item No.: LDZK-0.02-0.7
Characteristics:
1. Easy maintenance: daily maintenance, only need to drain once or twice a day when off work.
2. Low noise: quiet operation, effectively improving the working environment.
3. Convenient operation
4. Environmental protection: The emission of carbon monoxide is zero
5. Durable: all stainless steel material, overall reduction of material oxidation, long service life.
6. Small size: light and handy, easy to install, and does not occupy working space.
7. Safety: There are 6 major functions such as water cut, overheating, overtemperature, overpressure, Safety measures, all-round protection.
8. Wide applicability: suitable for catering industry, hospital disinfection, sauna, school canteen, greenhouse equipment, hair salons, dishwashers, food processing factories etc.
Technical Parameter
| LDZK-0.02-0.7 | |
| Evaporation capacity | 20KG |
| Power | 12KW |
| Related voltage | 0.7MPa |
| Steam temperature | 170℃ |
| Input power supply | 3 phase 5 wires 380V |
| Alternating current | |
| frequency:50Hz | |
| Leakage switch | 40A-63A |
| Electric current | 18A |
| Main power cord | 6Square mm standard copper wire |
| Control | Gear 1(380V)/Gear 2(220Vand380V Universal version) |
| Machine size | 660*400*1150mm |
| Machine weight | 70KG |
| Water capacity | 26L |
| structure | External water pump of auxiliary water tank |
| Power of water pump | 550W |
| Diameter of water intake | DN15 |
| Diameter of sewage outlet | DN25 |
| Diameter of steam outlet | DN15 |
| Diameter of safety valve | DN15 |
| Power consumption /hour | 12KW |

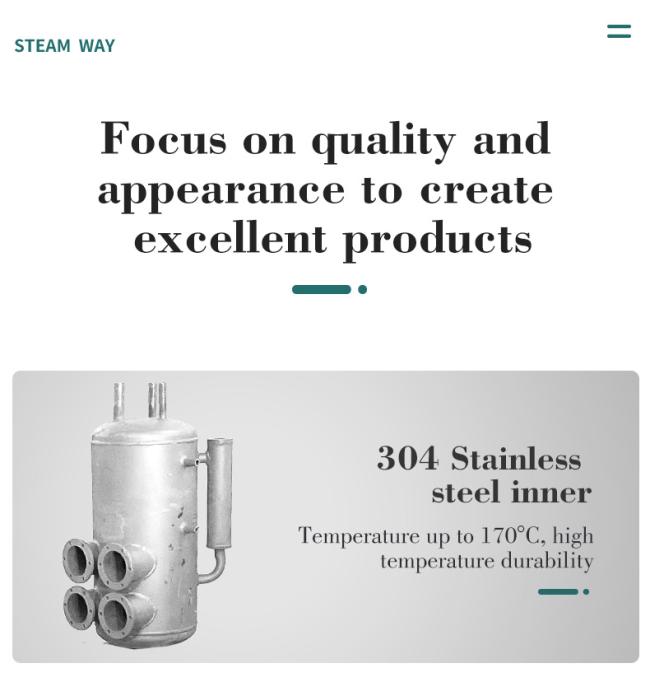

| Materials | Inner material-SUS 304,outer- SUS 201 |
| Heater(Qty) | Single heater |
