High Performance DC EV Charger Waterproof Electric Vehicle Fast Charging Pile
Price:
$7,588.80/pieces 2-4 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
BENY high-performance OEM ODM waterproof 60kw-240kw electric vehicle DC electric vehicle charging pile DC fast charging
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Details Images
Product Paramenters
|
Models
|
BADC-S60
|
BADC-S150
|
BADC-S240
|
||
|

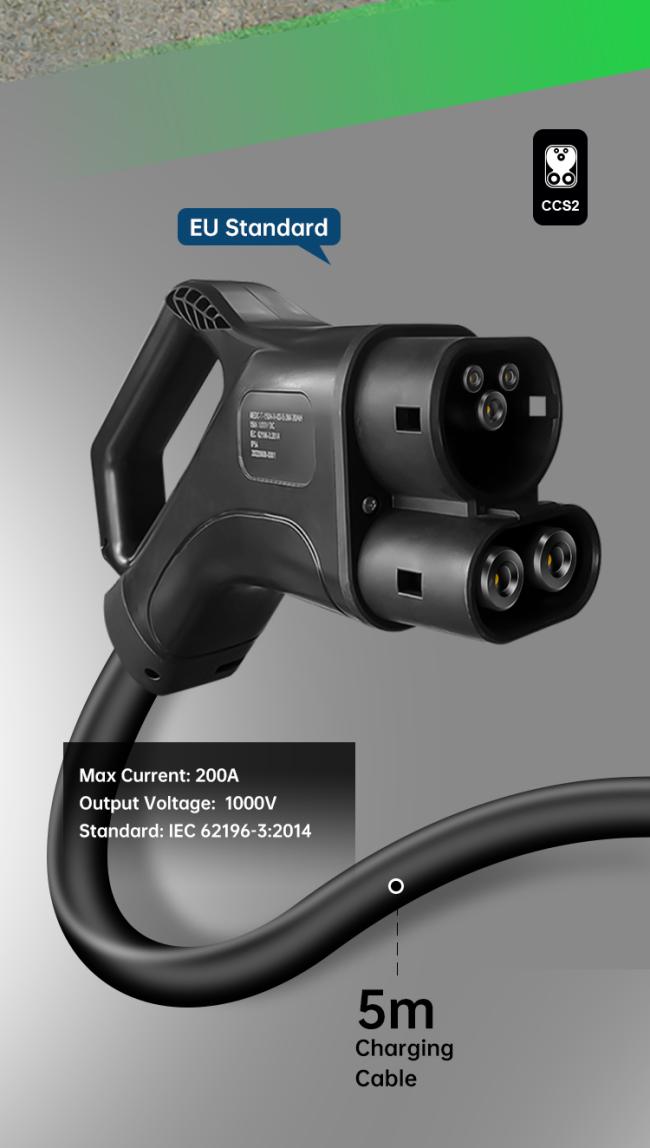

Connectors
|
Optional
|
CCS2
|
CCS2
|
||
|
Number of plugs
|
3
|
1
|
1
|
||
|
DC output power
|
60KW
|
150KW
|
240KW
|
||
|
AC input voltage
|
AC380V±15%
|
AC380V±15%
|
AC380V±15%
|
||
|
AC input frequency
|
50Hz/60Hz
|
45-65Hz
|
45-65Hz
|
||
|
DC output voltage range
|
Optional
|
DC50-1000V
|
DC50-1000V
|
||
|
DC output current
|
Optional
|
single connector 100A
|
single connector 120A
|
||
|
Cable length
|
Standard 5m(customizable)
|
|
|
||
|
Efficiency
|
≥94%
|
|
|
||
|
Noise emission
|
≤65dB
|
|
|
||
|
IP Rating
|
IP55
|
|
|
||
|
Warranty
|
12 Months
|
|
|
||
|
Enclosure Protection
|
IK10
|
|
|
||
|
Standard
|
IEC/EN 61851, IEC/EN 62196,ISO-15118,DIN 70121
|
|
|
||
|
Communication Protocol
|
OCPP 1.6J
|
|
|
||
|
Status indication
|
9.1 inch LCD screen/LED light
|
|
|
||
|
Connectivity Authorization
|
RFID/NFC, App, VIN
|
|
|
||
|
Network connection
|
4G/Ethernet
|
|
|
||
|
Electrical protections
|
Under voltage,Over voltage,Short circuit,Over current,Leakage Protection,Over temperature,Emergency stop ,Surge protection,Insulation detection
|
|
|
||
|
Cooling method
|
Forced-air cooling
|
|
|
||
|
Operating temperature
|
-30℃~+55℃
|
|
|
||
|
Storage temperature
|
-40℃〜+80℃
|
|
|
||
|
Operating humidity
|
5%~95%
|
|
|
||
|
Maximum installation height
|
2000m
|
|
|
||
|
Dimension (W x H x D)
|
800*800*2000(L*W*T)
|
|
|
||
