China 380V DC EV Charger Floor Mounted Custom Fast Charging Pile Station for sale

380V DC EV Charger Floor Mounted Custom Fast Charging Pile Station

Name: 380V DC EV Charger Floor Mounted Custom Fast Charging Pile Station
Brand: Zhejiang Benyi New Energy Co., Ltd

Price Negotiable

Price: $18,170.00/pieces 2-4 pieces

MOQ: 2 pieces

Delivery Time: Negotiable

Brand: beny

Product Description

BENY DC fast charging pile custom cheap china wholesale ac and DC ev charging station dual dc&one ac

You are here:Home>>DC EV Charger>>BADC Charging Station>>BADC 82-262

Why Choose Us

Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System

QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER

We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.

Product Specification

Models	BADC-82	BADC-172	BADC-202	BADC-262
Connectors	CCS1,CCS2,CHADEMO,GB/T,type2
Number of plugs	DC2+AC1	DC2+AC1	DC2+AC1	*DC2+AC1*
DC output power	82KW	172KW	202KW	262KW
AC input voltage	AC380V±15%,3P+N+PEAC
AC input frequency	50Hz/60Hz
Output voltage range	CCS1 or CCS2:0~250A 150VDC-1000V or CHADEMO 0~133A 150V-500V
Efficiency	≥94%	≥94%	≥94%	≥94%
Consumption	≤2W	≤2W	≤2W	≤2W
IP Rating	IP55
Warranty	12 Months
Standard	IEC61851-1:2011, IEC61851-23:201,EN61851-1:2011;EN61851-23:2014,IEC61851-21-2:2018;EN61000-6-2:2005;
Power factor	≥0.99(load:100%)
Connectivity authorization	RFID,APP	RFID,APP	RFID,APP	RFID,APP
Communiction	OCPP 1.6j	OCPP 1.6j	OCPP 1.6j	OCPP 1.6j
Cable Length	5M(Customizable)
Network	Ethernet/4G
Cooling	Forced-air cooling
Working Temperature	-30℃~+55℃
Screen	9.1inch LCD screen/LED light
Function	Emergency Stop Button,LED Indicator,RFID,TouchScreen
Shell Material	Carbon Steel
Weight	≤350KG	≤350KG	≤350KG	≤350KG
Dimension	8008002000(LWT)

Product Introduction

Highlights :

*82kW - 262kW Optional
* 3 Guns ( CCS1, CCS2,Chademo,AC Optional)
* Floor-stand
* 9.1inch LCD screen/LED light
* OCPP 1.6
* IP55
* 12 Months Warranty

* Time-saving - Fast charging

* Power saving - High conversion efficiency and low standby power consumption

* High Safety - Dual protection to both manual operation and vehicles

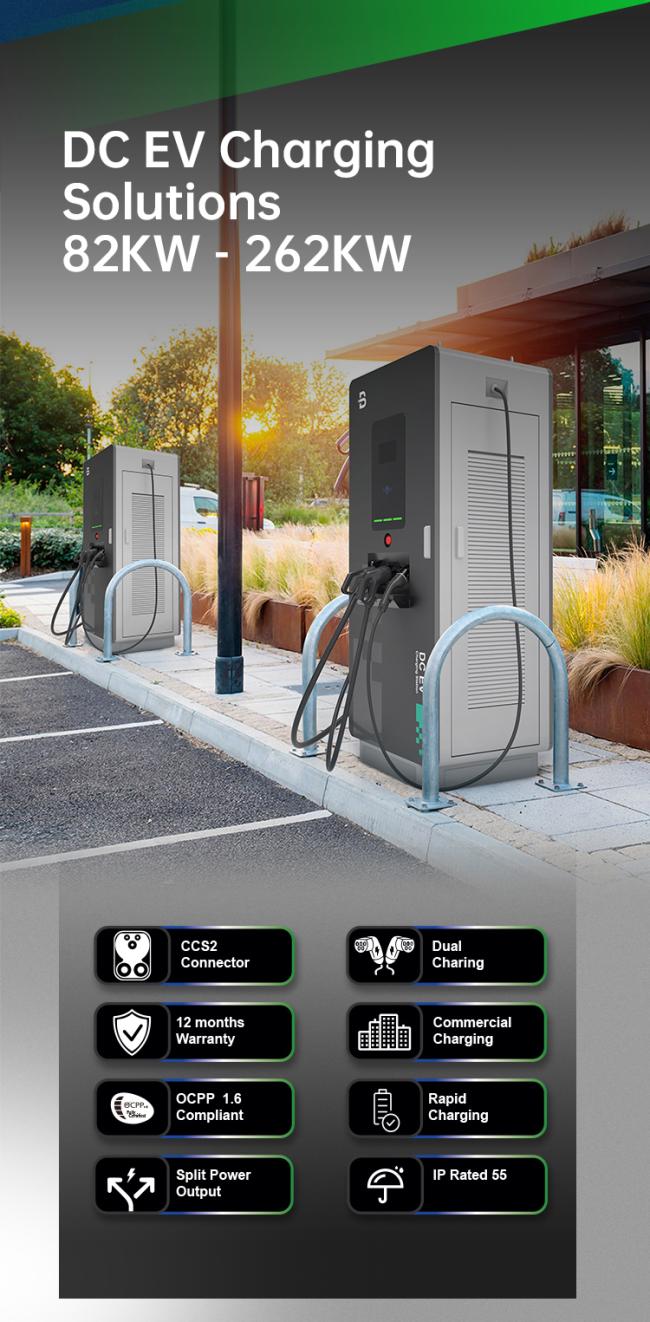

FAST, EFFICIENT AND SAFE EV CHARGING STATION

BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.
The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.

Product advantages

High Reliability

High reliability and low failure rate withlow operation and maintenance costs.Always available easy to use andprofitable.

High Efficiency

Efficient and power saving. Low heat loss and heat dissipation.Low overall power consumption and operating costs High Safety

Dual protection.Active protective function.No fire or electric shock risk.Safety of network and supply. Fast charging

Constant power output at different voltage and temperatures Fast charging capability in all scenarios,Dispatching power according todifferent demand Intelligent

Intelligently connect multiple operating devices with information-based remote operation management. Environment friendly

Low noise and easy to use Environment friendly.

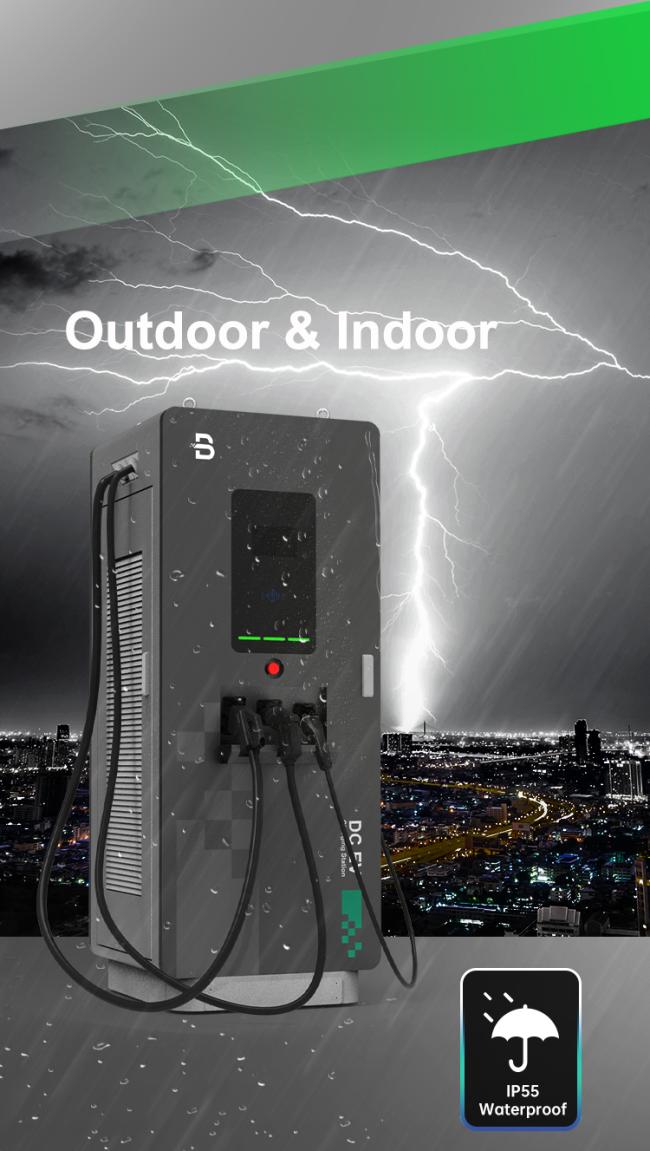

BUILT TO LAST

Reliable in every situation

Reliable in every situation From its durable and weatherproof design to its integrated electrical protections, the new generation of EVB DC EV charging stations takes reliability up a notch. With built-in Wi-Fi and 4G LTE, it’s always connected so you can track and manage your charging stations, receive remote firmware updates, and earn revenue.

Smart Device APP/Charging Administrator Program

Our intelligent software manager handles charging and data collection that monitors operations and frequency of activities 24/7.
The data is accessible through an app overseeing the station’s overall performance to inform the following.

* Automated Load Balancing efficiently distributes energy to units.

* Provide reports of any issues like power surges during charges
* Remotely control operations, whether on-site or off-site

SMART AND SCALABLE
Expand your charging network, easily

Built with scalability in mind, EVB DC EV charging station meets your needs today and in the future. Hub-Satellite lets you connect up to 20 charging points per network and manage an unlimited number of networks via the software of your choice. Plus.thanks to load balancing, you can reduce your infrastructure and energy costs.

Support Every Step of the Way

EVB provides training and marketing materials, fully assisting you in introducing EV charging options to your customers and providing the following perks.

*All-inclusive dealer sales training for you to be competent in product knowledge essential for a successful sale.
* Brochures for added marketing materials to attract potential clients
* Updated with our special promos that give your sales a boost

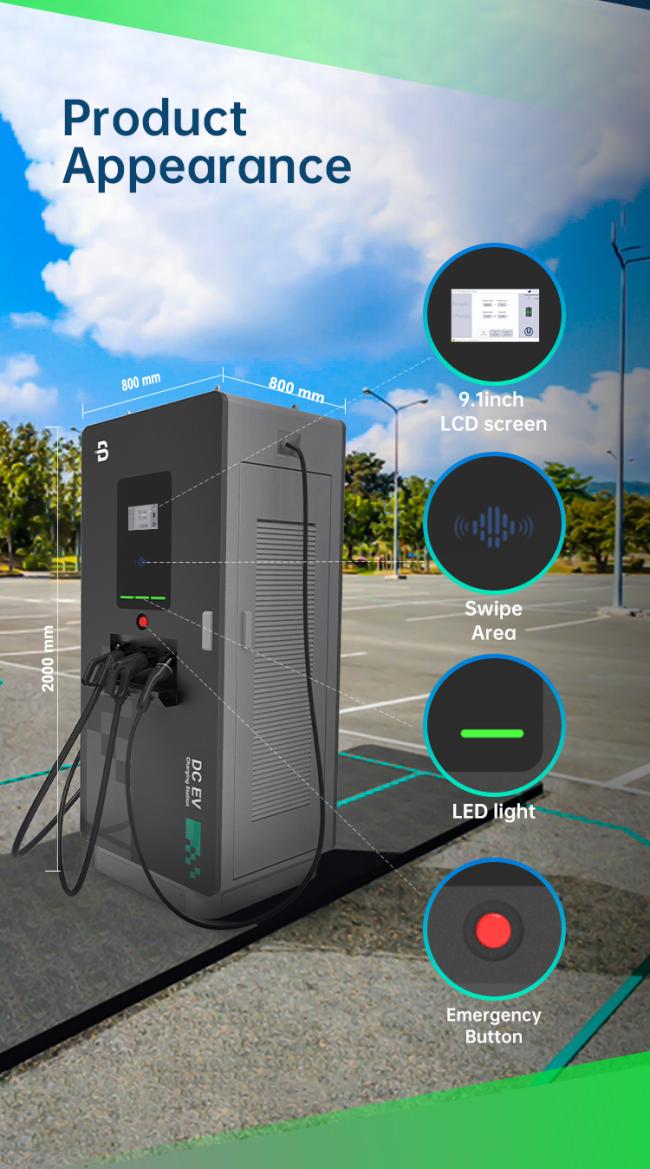

Details Images

OUR EV CHARGER PRODUCT LINE

Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 262kW.

BENY is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.

The robust build of our EV charger lets you satisfy various business goals while driving your brand. Contact us for a free consultation

ENRICHING EV CHARGER FEATURES

Open Charge Point Protocol (OCPP)
Allow EV charging stations and central management systems from different vendors to communicate with each other.

Dynamic Load Balancing (DLB)
Consumes the house’s power supply efficiently without costly upgrades to your building’s grid connection.

Customize All Types of Connectors
Compatible with all electrical cars manufactured in the world.

With Emergency Stop Switch
In case of problems, an emergency switch can immediately shut down our EV charger.

Self-developed OCPP Platform EVsaas
EVsaas is a EV chargers and charging station management system developed by BENY. Suitable for EV charging station operators,achieve revenue through simple setup.

PEN Fault Detection
Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.

Compatible with Solar PV System
Use our Solar DLB Box to charge an EV with your own solar-generated electricity.

Built-in Type B RCD for Leakage Protection
Each of our EV chargers protects everyone from the dangerous electrical ground.

Company Profile

BENY Electric is a specialist in EV charging station installations around China in multiple different scenarios. Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification. We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways. Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use. BENY Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.

Product Application Case

BENY With 30+ years experience in professional manufacture,

our products have been attracting customers from 100+ countries

that spread all over the world from Europe, Asia, Australia, theMiddle East and the South America.

Exhibition

BENY Electric attends all types of exhibitions every year,thus closely keeping contact with partnerships from different countries, learning the newest trend and the newest market demand,then improving our cutting-edge technology.

With the sincere service and profesional manufacture towards our customers over 30+ years,our producrs have been attractingnumerous customers from Europe, Austrilia, the Middle East and tothe South Asia.

BENY EV Charger has been enjoying a good reputation across the world from the coldest area lreland to the hottest area South Africa.

Therefore, BENY EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc
