22KW EV Car Charger Ocpp Wallbox With Fixed Cable Type 2 Connector

Price Negotiable
Price: $742.99/pieces 2-99 pieces
MOQ: 2 pieces
Delivery Time: Negotiable
Brand: BENY
Product Description

BENY 22kw ev charging station ocpp wallbox type2 2 plugs ev charging station

Why Choose Us

Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System

QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
OUR EV CHARGER PRODUCT LINE
Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 262kW.
BENY is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.
The robust build of our EV charger lets you satisfy various business goals while driving your brand. Contact us for a free consultation
ENRICHING EV CHARGER FEATURES
Open Charge Point Protocol (OCPP)
Allow EV charging stations and central management systems from different vendors to communicate with each other.

Dynamic Load Balancing (DLB)
Consumes the house’s power supply efficiently without costly upgrades to your building’s grid connection.

Customize All Types of Connectors
Compatible with all electrical cars manufactured in the world.

With Emergency Stop Switch
In case of problems, an emergency switch can immediately shut down our EV charger.

Self-developed OCPP Platform EVsaas
EVsaas is a EV chargers and charging station management system developed by BENY. Suitable for EV charging station operators,achieve revenue through simple setup.

PEN Fault Detection
Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.

Compatible with Solar PV System
Use our Solar DLB Box to charge an EV with your own solar-generated electricity.

Built-in Type B RCD for Leakage Protection
Each of our EV chargers protects everyone from the dangerous electrical ground.
Product Paramenters
Wallbox Models
BCP-A2N-L
BCP-B2N-L
 BCP-AT2N-L
BCP-BT2N-L
BCPC-DT2N-P
Categorization
OCPP Version



OCPP Version
Maximum Power
7.4kW

22kW

2x22kW
Input Voltage/Output voltage
AC230 1-Phase

AC400 3-Phase

AC400 3-Phase
Input Frequency
50/60Hz



50/60Hz
RFID
×
Meter
Metering Chip



MID Meter
Display
LED Lights



LCD Screen+LED Lights
DLB
Optional



×
Wi-Fi
APP
Over Voltage &Under Voltage Protection
Emergency Stop
Over Current Protection
CP Signal Short Circuit Protection
Over Temperature  Protection
Lightning Protection
Contactor Adhesio Protection
Protection Degree
IP65
IP55
IP65
IP55
IP55
Environment Temperature
-25℃~+55℃



-25℃~+55℃
Maximun Altitude
<2000m



<2000m
RFID card to charge automatically
Dual socket, Type 2 (IEC 62196-2)
* Type A + DC6mA or Type B RCBO
* Over Current Protection
* Over Voltage & Under Voltage Protection
* Over Temperature Protection
* Lightning Protection
* Contactor Adhesion Protection
* Emergency Stop
* The type 2 plug socket makes highly flexible and compatible with all electric vehicles.
Key features of the EVB charging app for business
High Tech Charger for High Power Charging Electricity metering, monitoring, and reporting Fee charging online or offline Diagnostic files upload for notices Remotely start or stop chargers Remotely schedule charging Artificial intelligence load balancing Emergency stop button OCPP Compliant Wi-Fi/Ethemety/4G RFID /app /VIN
PRODUCT CHARACTERISTIC
1.Complete national certification
The product has passed all relevant certifications in Europe to ensure that the product can be sold and used safely
2.Type1 and Type 2 AC RCD
The product is ecupped AC leakage protector,which complies with the latest EU safety standards.
3.Efficient Charging
This product has 1-phase AC, the maximum power can reach 7kw, and 3-phase AC, the maximum power can reach 22kw
4.APP control
All charging parameters can be set and displayed on the APP, so as to keep abreast of the charging situation, and the operation is simple and convenient
5.Easy to install
BENY EV saas platform is self-developed charging management based on OCPP 1.6J With a simple setup, it allows you to track,manage and optimize your EV charging and earn extra income

DYNAMIC LOAD BALANCING FUNCTION

To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.

PEN FAULT DETECTION

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.
If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground, once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected, there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

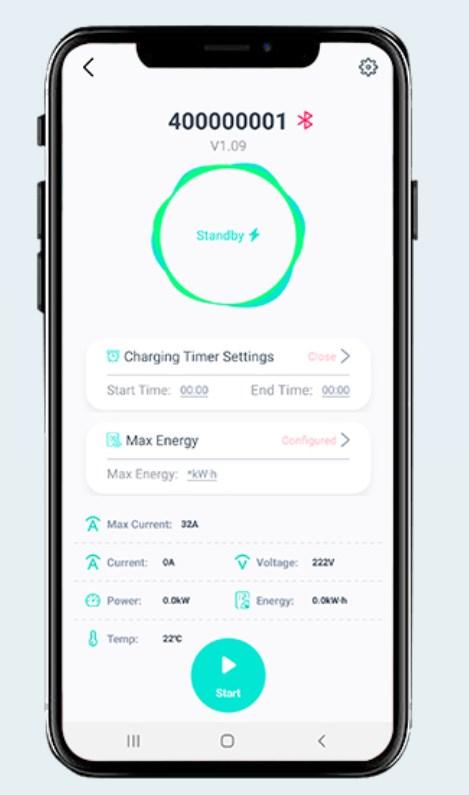

SMART APP
Remote Control Charging Take more control over your charging with our system to bring all your attention to your business. Our EV chargers can be controlled through a Z-Box application to ensure remote control charging, giving more flexibility to charging networks and other applications and saving energy costs.

SMART APP FOR OPTION

BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:
One to one binding EV charger by resetting the password, prevent the EV charger being stolen;
View charging data and status;
Set up various charging configurations, charging current, DLB mode, etc.
Scheduled charging;
Firmware update;
1.Start and Stop Charging Saving time, power, and costs, Z-box grants users more control over when charging takes place by choosing when to start or stop charging. 2.Time Setting Charging Users can set an appointed time and degree for charging for optimal control and peace of mind as you focus on your important business operations. 3.Charging by kWh Users can set the maximum kWh setting for a single charge, and it will stop charging after the charge reaches the maximum kWh. 4.Weekly appointment charging Our EV chargers can be set to a specific starting and finishing time for the whole week, helping save on costs while ensuring control over the time for users to use your charging stations.
Company Profile
BENY Electric is a specialist in EV charging station installations around China in multiple different scenarios. Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification. We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways. Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use. BENY Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.
Product Application Case
BENY With 30+ years experience in professional manufacture,
our products have been attracting customers from 100+ countries
that spread all over the world from Europe, Asia, Australia, theMiddle East and the South America.

Exhibition



BENY Electric attends all types of exhibitions every year,thus closely keeping contact with partnerships from different countries, learning the newest trend and the newest market demand,then improving our cutting-edge technology.
Partners
With the sincere service and profesional manufacture towards our customers over 30+ years,our producrs have been attractingnumerous customers from Europe, Austrilia, the Middle East and tothe South Asia.
BENY EV Charger has been enjoying a good reputation across the world from the coldest area lreland to the hottest area South Africa.
Therefore, BENY EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc
