Plug And Play Micro Grid Inverter 700W Single Output For Solar System
Price:
$190.00/pieces 100-499 pieces
MOQ:
100 pieces
Delivery Time:
Negotiable
Brand:
BENY
Product Description
BENY plug and play microinverter microinverter solar 700W
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Product Advantages

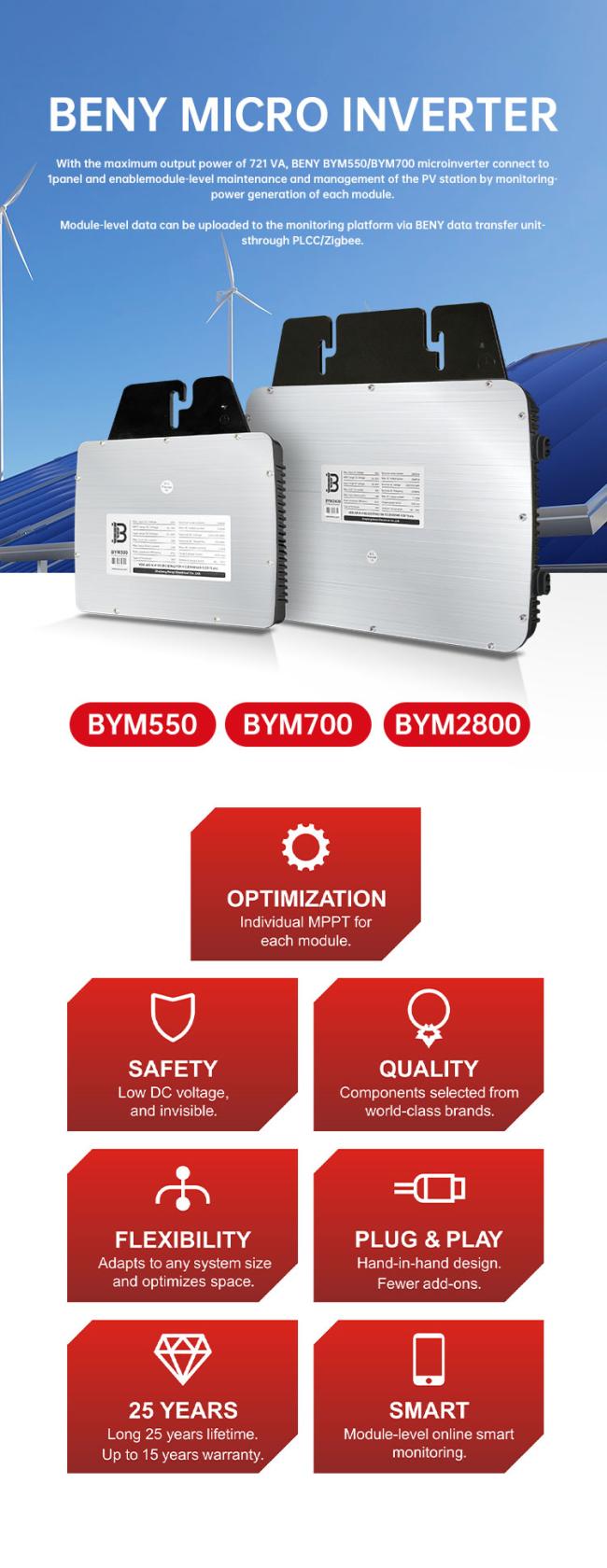

OUR MICROINVERTER PRODUCT LINE
Single-In Microinverter 500W
Single-In Microinverter 550W
Single-In Microinverter 600W
A microinverter is a solar inverter technology that is mounted on each individual solar panel. Microinverters have the ability to achieve maximum power point tracking (MPPT) at the module level, which has advantages over centralized inverters. This allows the overall output power to be maximized by optimizing the output power of each module. BENY microinverters offer many advantages, such as rapid shutdown, flexibility in panel layout, and module-level monitoring and diagnostics. You can get more from your installation with BENY microinverters.
Receive a free quote today!
Products Description

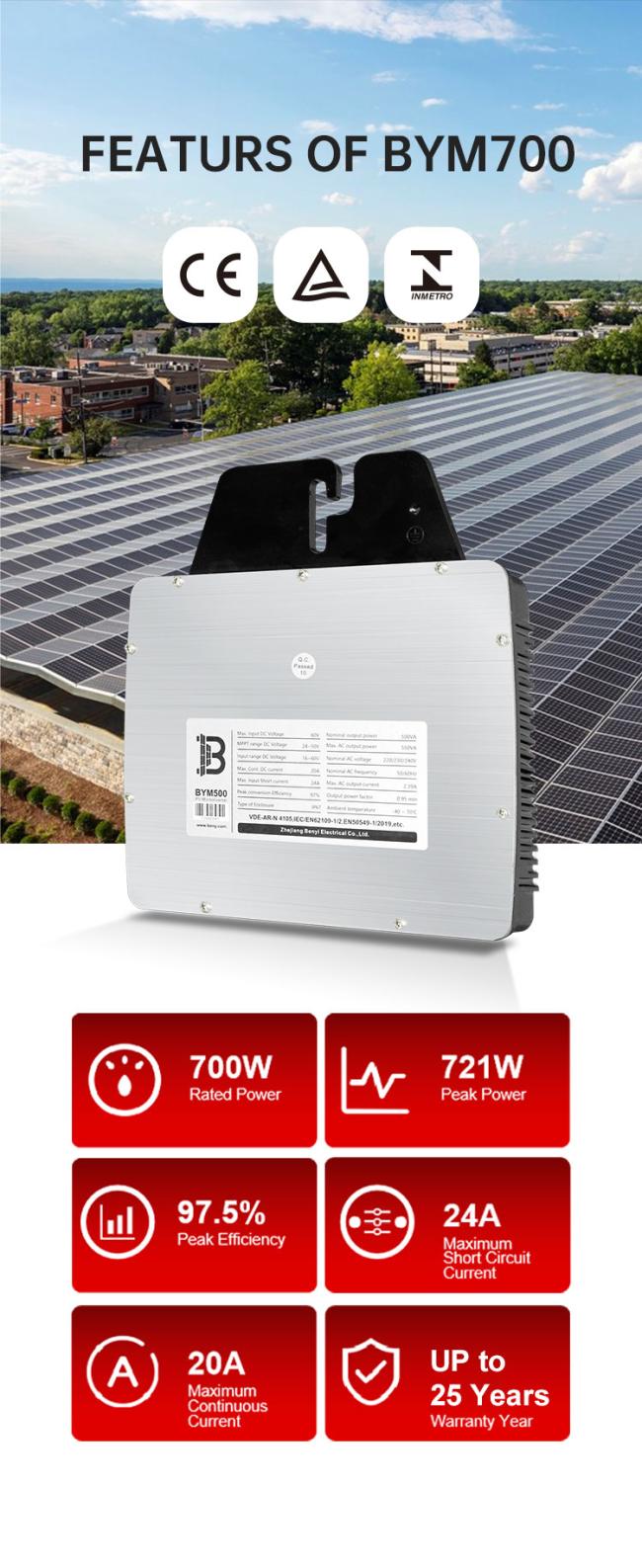

700w Solar Micro Inverter
* Rated Power 700W
* Peak Power 721W
* Peak efficiency 97.5%
* Maximum short circuit current 24A
* Maximum continuous current 20A
* Up to 25 years warranty
Application
Module-level data can be uploaded to the monitoring platform via BENY data transfer units through PLCC/Zigbee.
The products are fully designed, with real materials, the main control chips, power devices, magnetic components and resistance components are all selected from the top international manufacturers, MTBF> 25 years. The structure and heat dissipation design are fully designed to ensure that it can still work at full load when the ambient temperature is 55℃.
|
Model
|
BYM700
|
|
|
Input Data(DC)
|
|
|
|
PV module power range(recommended)
|
450-750W, 60,66,72 Cell/(300-400W)*2, 72 Cell recommended
|
|
|
MPPT voltage range
|
24V-50V
|
|
|
Operating voltage range
|
16V-56V
|
|
|
Maximum DC input voltage
|
60V
|
|
|
Maximum short circuit input current
|
24A
|
|
|
Maximum continuous input current
|
20A
|
|
|
Output Data(AC)
|
|
|
|
Rated output power
|
700VA
|
|
|
Maximum output power
|
721VA (Vac≥230,Vmp≥38)
|
|
|
Rated voltage/range
|
230V/184-253V
|
|
|
Rated frequency/range
|
50Hz/60Hz(46.5-61)Hz
|
|
|
Maximum continuous output current
|
3.04A
|
|
|
Maximum harmonic distortion
|
<3%
|
|
|
Power factor
|
+/-0.95
|
|
|
Maximum connection number in one string
|
8 units(30A circuit breaker, 9AWG cable)
|
|
|
Efficiency
|
|
|
|
Peak efficiency
|
97.50%
|
|
|
European efficiency
|
97.00%
|
|
|
MPPT efficiency
|
>99.8%
|
|
|
Night power consumption
|
<100mW
|
|
|
Other parameters
|
|
|
|
Communication method
|
PLCC/Zigbee dual module
|
|
|
Safety protection class
|
Class I
|
|
|
Enclosure rating
|
IP67
|
|
|
Operating temperature
|
-40℃ to +70℃
|
|
|
Storage temperature
|
-40℃ to +85℃
|
|
|
Relative humidity
|
0-98%
|
|
|
Transformer design
|
High frequency transformer, Galvanically isolated
|
|
|
Overvoltage class
|
OVC III (AC main circuit),OVC II (PV)
|
|
|
Warranty period
|
10 years / 25 years(Optional)
|
|
|
Safety regulations
|
VDE-AR-N 4105, IEC/EN61000,IEC/EN62109-1/2,EN50549-1/2019,
TOR2019 C10/11:2019, UTE C15-712-1:2013, VFR2019 |
|
ULTRA-HIGH OUTPUT & ULTRA-HIGH EFFICIENCY
The world’s first mature micro inverter applying GaN, the third-generation semiconductor technology.
UP TO 97.5% PEAK EFFICIENCY
The peak efficiency of most microinverters on the market is around 96%.
BENY’s newly developed microinverter has a Peak Efficiency of 97.5% and a European Efficiency of 97%.
Higher efficiency allows you to convert more DC power from solar panels to AC power, allowing you to get more from your
installation.
BENY’s newly developed microinverter has a Peak Efficiency of 97.5% and a European Efficiency of 97%.
Higher efficiency allows you to convert more DC power from solar panels to AC power, allowing you to get more from your
installation.
REMOTE MONITORED
Communicating with BENY microinverters through PLCC/Zigbee enables users to manage the systems in a smart digital way. Thereby isolating a problem much faster than other inverters.
EASILY EXPANDABLE
Due to BENY microinverters’ modularity, a solar system can be easily expandable from a single panel to multiple panels independent of each other.
You can use BENY BYPO-2 to Parallel Optimizer to connect PV modules in parallel to increase the output current of the PV array,
thereby obtaining greater output power.
You can use BENY BYPO-2 to Parallel Optimizer to connect PV modules in parallel to increase the output current of the PV array,
thereby obtaining greater output power.
It has the characteristics of ultra-low voltage drop and ultra-low loss, which can solve the problem that the current backflow reduces the life of PV modules or damages PV modules in parallel, and can improve the MPPT efficiency of PV modules in parallel.
UP TO 25 YEARS WARRANTY
String inverters typically come with only a five-year limited warranty and must be replaced at least once during the 25-year life of the solar PV system.
BENY microinverter offers a warranty of up to 25 years, with a life expectancy that matches that of the solar module under real-world conditions, making it more economical.
BENY microinverter offers a warranty of up to 25 years, with a life expectancy that matches that of the solar module under real-world conditions, making it more economical.
HIGH-GRADE MICROINVERTER
We take into account market demands for solar PV solutions when manufacturing our microinverter, leading to many brand-building features.
