dc solar panel string box 6 input 3 output PV array dc combiner box
Price:
$183.48/pieces 1-28 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
Live Stream
Now Click for More
Products Description

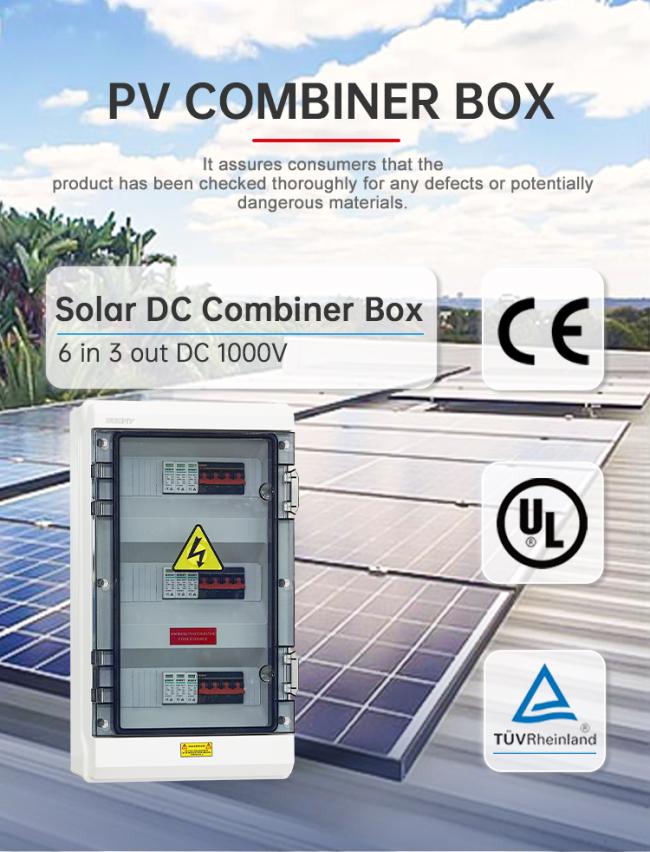

BHS-6/3 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.
BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box

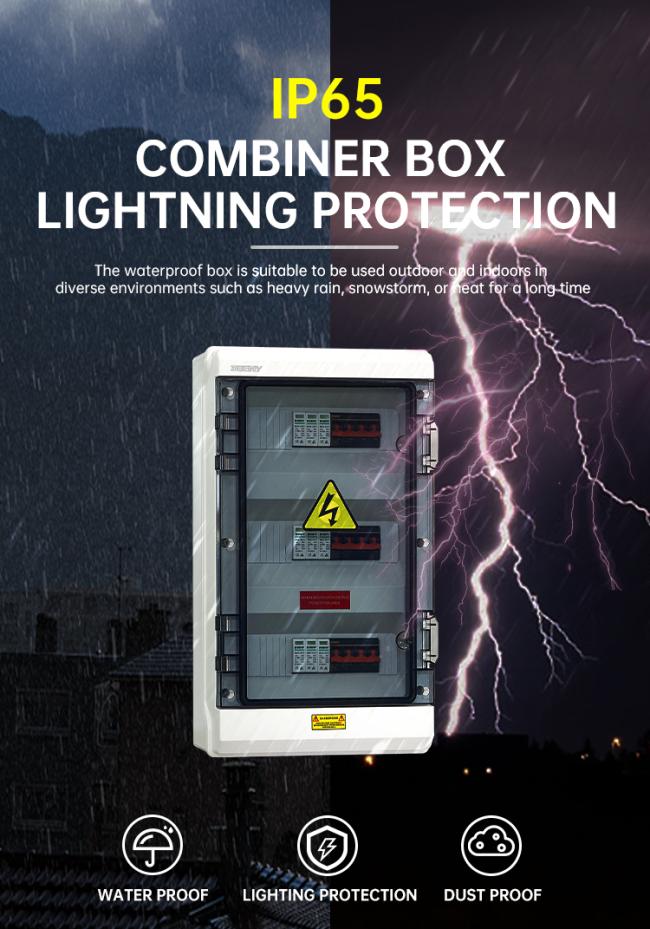

*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||||
Model No. | BHS-6/3 | |||
Input | 6 strings | |||
Output | 3 strings | |||
Max Voltage | 1000V | |||
Rated Current of DC breaker | 40A/40A/40A | |||
Max Current Output | 40A/40A/40A | |||
Enclosure | ||||
Material | Polycarbonate/ABS | |||
Degree of Protection | IP65 | |||
Degree of Resistance to Impacts | IK10 | |||
Dimension（L*W*H） | 313*55.*149mm | |||
Input Cable Gland | PG09 2.5-16 | |||
Output Cable Gland | PG21 2.5-16 | |||
Company Profile

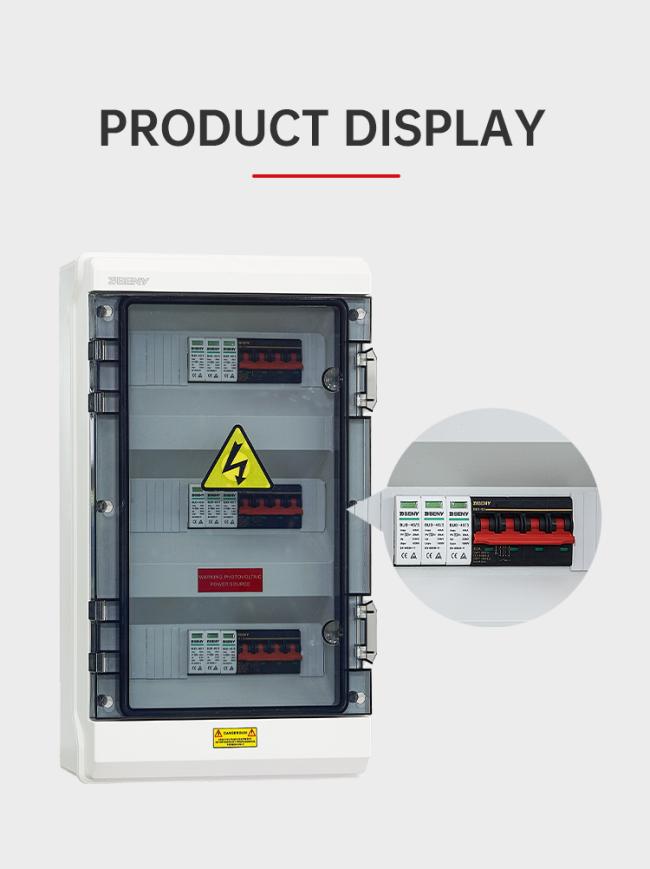

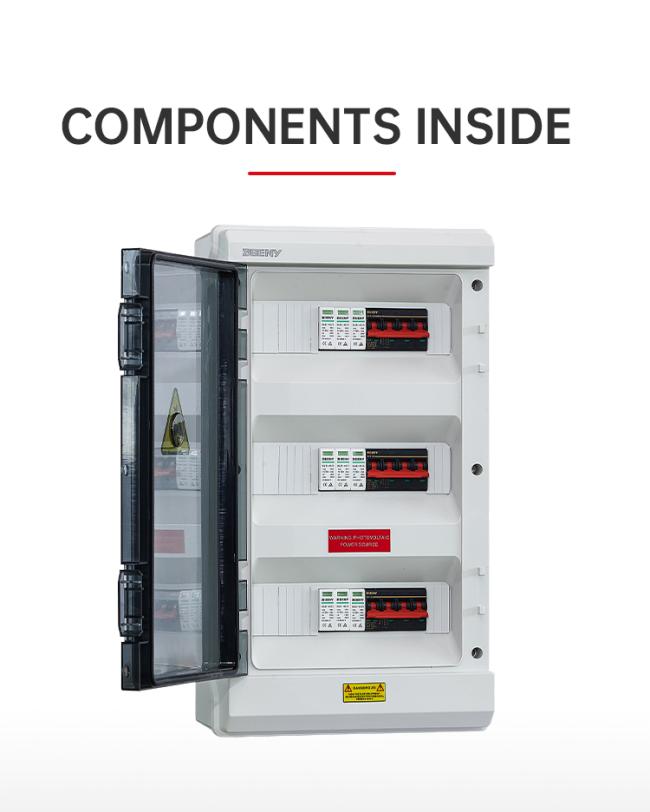

Details Images
