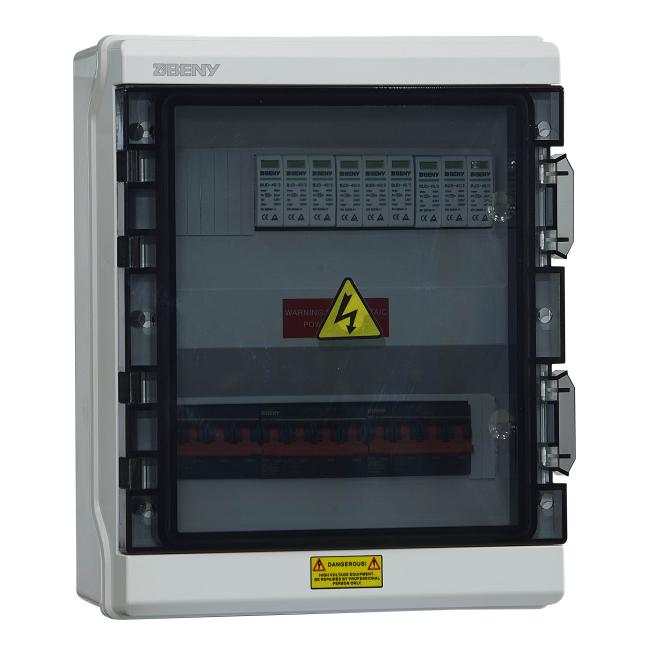

solar dc string box 3 input 3 output waterproof IP65 pv DC string box
3 input 3 output 600VDC / 1000VDC
IP65 DC string box is designed for 3 string PV system.
For surge protection and current protection at solar DC side.
DC Breaker
*UL489B PV standard
*IEC60947-2
*Over-load and short circuit Protection
*Non Polarity
DC SPD
*New IEC 61643, UL1449
*Designed for solar PV protection
*Higher capacity In 20KA ( IEC, UL )
*Response time <25ns
| Specification |
| |
| Model Number | BHS-3/3 | |
| Input | 3 strings | |
| Output | 3 strings | |
| Max Voltage | 600V | 1000V |
| Rated Current of DC Breaker | 40A | 40A |
| Max Current Output | 63A | 40A |
|
| ||
| Enclosure |
| |
| Material | Poly carbonate/ABS | |
| Degree of Protection | IP65 | |
| Impacts | IK10 | |
| Dimensions | L302*W373*H131mm | |
| Input Cable Glands | PG09, 2.5-16 | |
| Output Cable Gland | PG21, 2.5-16 | |
|
| ||
| Environment |
| |
| Operating temperature | -25℃ - +60℃ | |
Q:Can I get a sample before I place an order ?
A:Yes,of course and sample fee will be charged but it is refundable if you place order afterwards.
Q:When will I receive my order normally?
A:Normally , It takes 1 week from 1-100 pieces, 2 weeks from 100- 500 pieces, 3-4 weeks if it ups to 500 pieces..
Q:What is your payment methods ?
A:We can accept 100% TT via Alibaba .
Q:What is your shipping methods?
A:Normally we ship goods by express ,by air or sea.
Q:How long the warranty lasts for?
A:Our policy allows to exchange within 5 years.
