AC solar PV Combiner Box 6 strings input 1 out 800V solar junction box
AC Combiner Box for up to 6* 80kW inverters
Solar string inverters are used more and more in the solar PV plants, requires reliable combiner and protection at AC side.

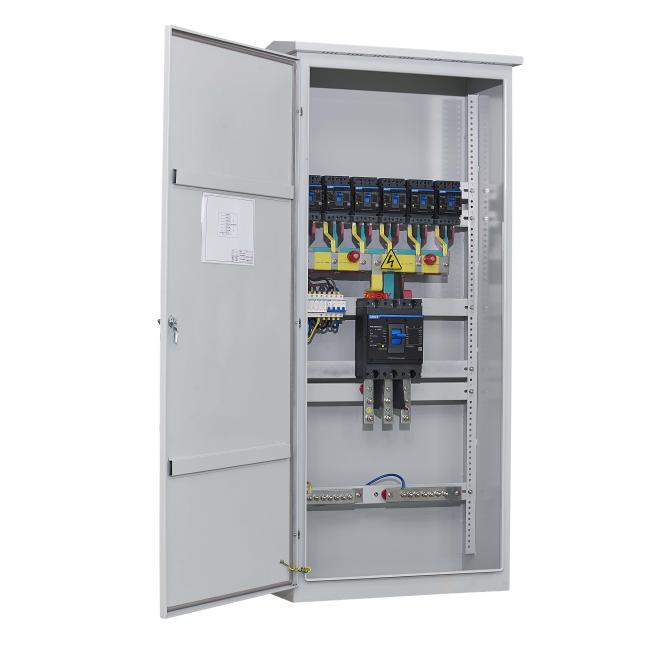

BBWX-6 is a solution with AC MCCB build-in for AC inputs and output, type 2 AC SPD for over-voltage protection.
Customized solutions are available for different projects requirements.
Features:
*3 phase inverter protection
*AC breaker or NH00 fuse switch for option
*Rated voltage 800V
*6 AC input
*1 AC output
| Model | BBWX-6 | ||
| Grid topology | TN-S (5-conductor system:L1, L2, L3, PE, N) | ||
| Rated Voltage (UN) | 800V | ||
| Rated Insulation Voltage (Ui) | 1000V | ||
| Frequency | 50Hz/60Hz | ||
| Operating Temperature | -25 °C up to +60 °C | ||
| Enclosure | Up to IP65 (IEC 60529) / IK 10 (IEC62262) | ||
| Material | Powder Coating Metal | ||
| Dimension | 194*100*40cm | ||
| AC Input |
| ||
| Number (Inverter) | 6 *up to 100KW solar inverters | 6 *up to 120KW solar inverters | 6 *up to 160KW solar inverters |
| AC Breaker | 6*800V 160A | 6*800V 200A | 6*800V 250A |
| Rated Current per Input (Inc) | Up to 160A | Up to 200A | Up to 250A |
| Connection | Via V-clamp (for Al and Cu cables) | ||
| AC Output |
| ||
| Number | 1 per phase (Optionally 2) | ||
| AC Breaker | 1*800V 1000A | 1*800V 1250A | 1*800V 1600A |
| Rated Current Output(InA) | 1000A | 1250A | 1600A |
| Connection | Via V-clamp (for Al and Cu cables) | ||
| Surge Protection Device |
| ||
| Type | Type 2 AC 4P | ||
