Arc Fault Circuit Interruption (AFCI) Combiner Box Solar panel DC Combiner Box
Price:
$441.10/pieces 1-9 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBNEY
Product Description
Live Stream
Now Click for More
Products Description

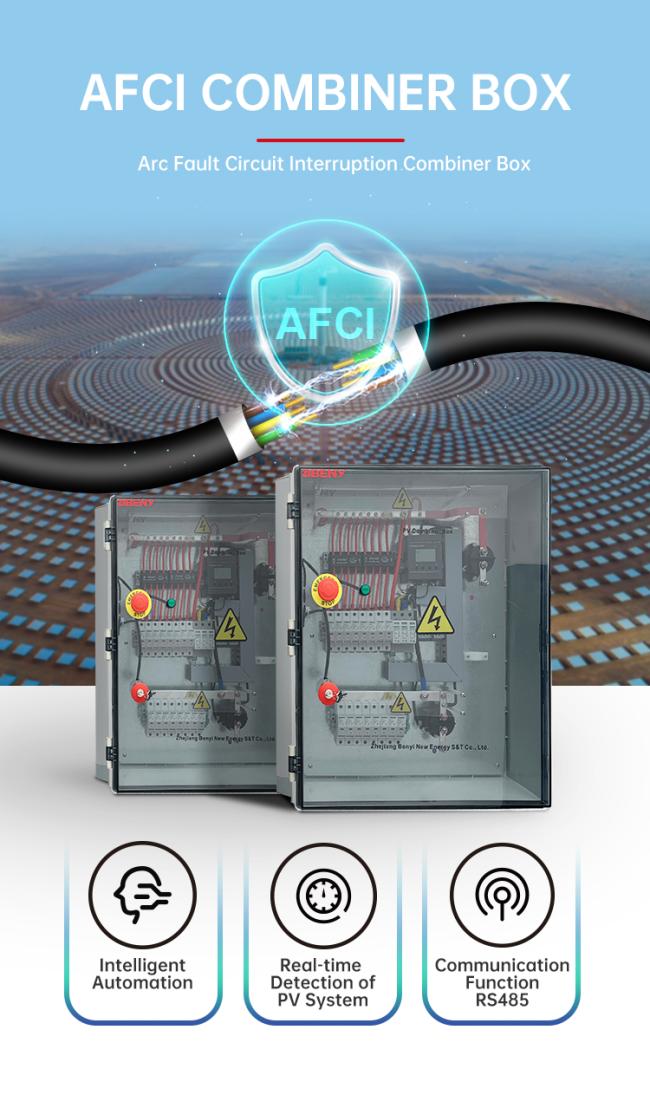

BHSZ-8/1 1000V AFCI Combiner Box for Solar PV
-Intelligent AutomationRemotely control switch turning on and off
-Real-time Detection of PV System
-Real-time Detection of PV System
Detect your PV System such as electric current, voltage, the temperature level of combiner box , lightning arrester ,DC vacuum contactor and DC arc fault.
-Communication Function
Detects harmful arcing in DC circuits
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box

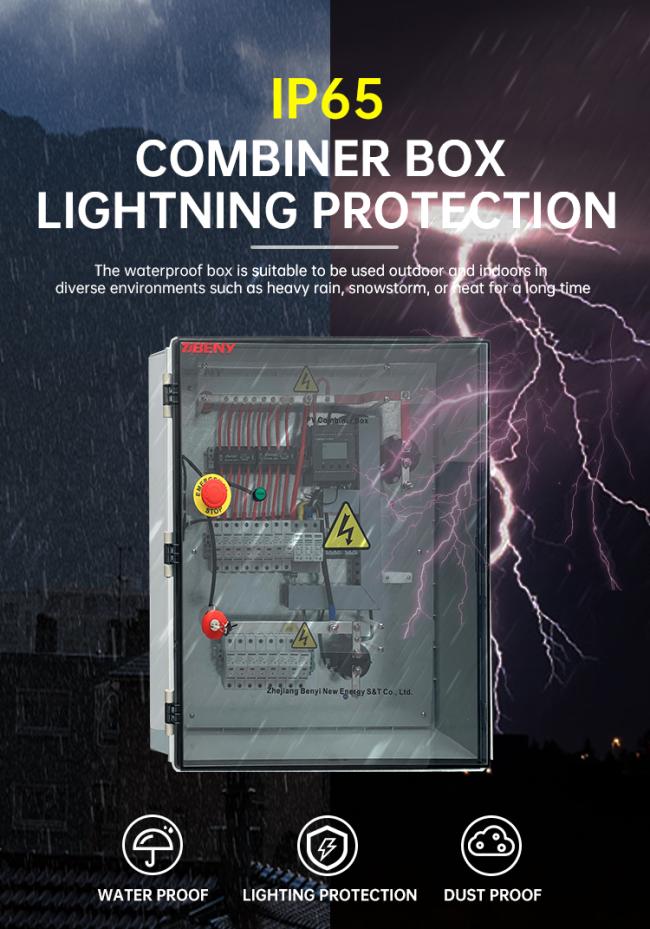

*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions

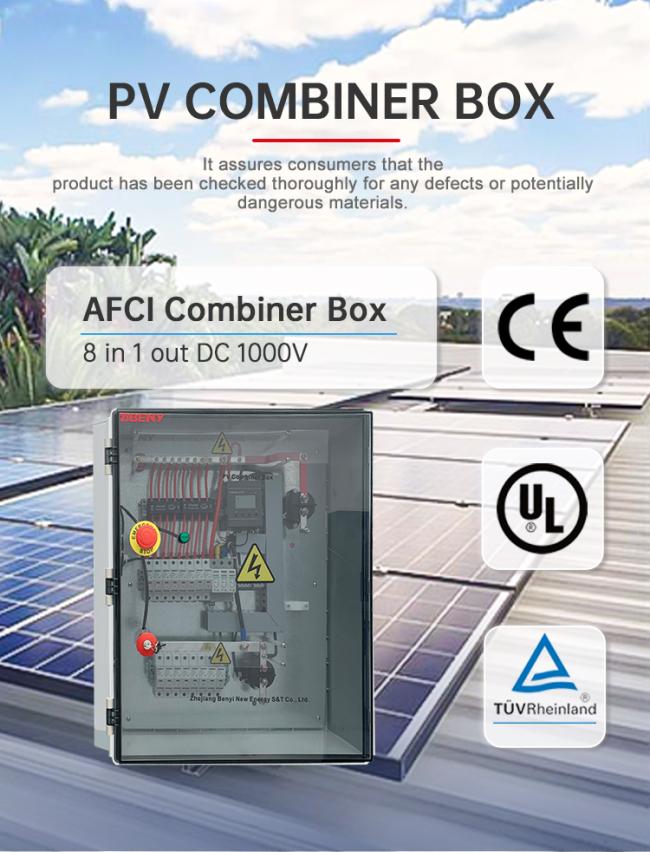

*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
-Communication Function
Detects harmful arcing in DC circuits
BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||
Model No. | BHSZ-8/1 | |
Input | 8 strings | |
Output | 1 string | |
Max Rate Voltage | 1000V | |
Max Input Current Per Each String | 10A/15A/20A/25A/30A | |
Connection Type of Input | PG09 | |
Enclosure | MC4 | |
Input Cable Size | Φ4-8mm | |
Max Output Current | 100A/125A/250A | |
Connection Type of Output | PG 36,Φ22-23MM | |
Customizable | ||
DC Surge Arrest | T2/T1+2,In=20KA,Imax=40KA,Ucpv=600VDC | |
Voltage of Monitoring Device | 450VDC~1000VDC | |
Voltage of Contactor | 24VDC(Built-in Power Supply) | |
Plastic | ||
DC Switch Disconnector | Powder Coated Stainless Steel | |
Protection Degree | NEMA13(IP65) | |

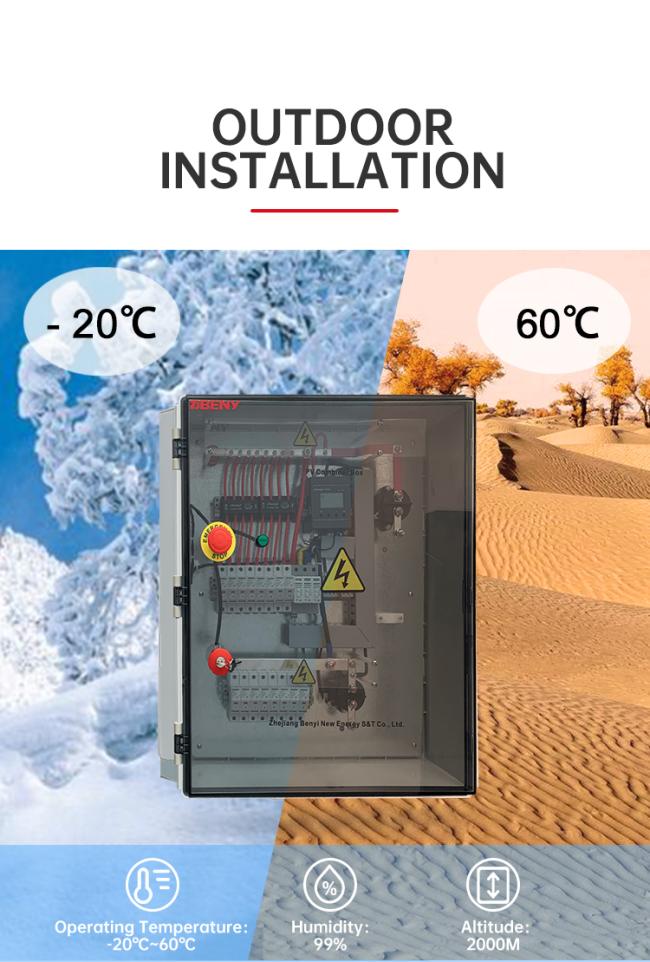

Ambient Temperture | -20℃~+60℃ | |
Humidity | 0-99％ | |
Altitude | ≤2000M（derating＞2000M） | |
Installation method | Vertical/Horizontal | |
Standard | IEC62109/IEC61439(EN62109/EN61439) | |
