16 Strings Combiner Box Solar Equipped with True 1000V 1500V DC Components
Price:
$300.00/pieces 1-9999 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
TIPS of combiner box
Tips of the Quality Solar Combiner Box:
1. Enclosure: A direct impact on the life of the combiner.
- Most combiners box are installed outdoor, IP65 IP66 degree is important.
- UV resistance and good flame retardant for PC plastic enclosure.
- The larger enclosure for better cooling of internal components.
2. True DC components for solar PV.
- As TOP 1 solar DC components manufacturer in China, the solar combiner box is equiped with TRUE DC disconnect switch, 1000V DC surge arrester which is used in SolarEdge Inverter too and Finger safe touch 1000V DC fuse holder.
- The fuse should be TOP brands from LITTEL or Bussmann.
Product Description
Build-in premium solar DC components for maximum protection

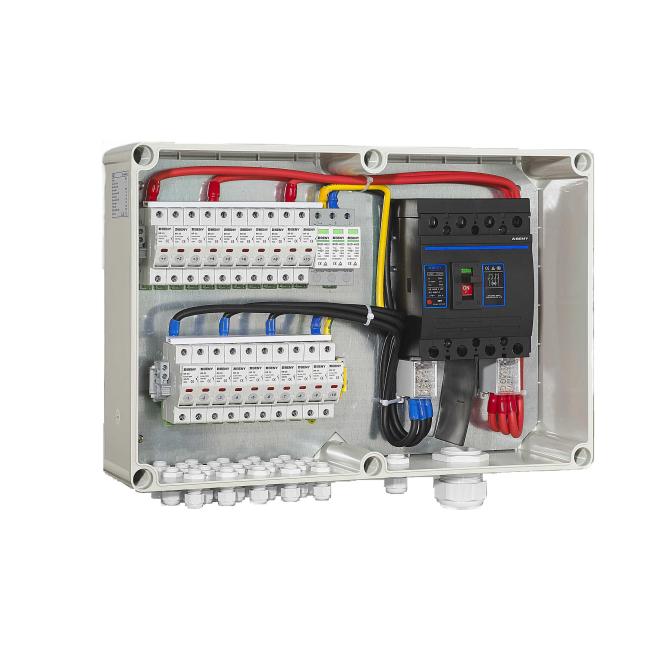

BHS-16/1 solar PV combiner box is equipped with DC-PV2 disconnect switch, finger safe touch DC fuse holder and type 2 DC surge arrester.
All the best DC components are pre-assembled in a durable enclosure.
These reliable PV components bring maximum protection.
Keep the solar PV system safe and in good operation condition, longer the system working life.
Highlight:
* 1000V
* 16 strings input
* 1 string output
Enclosure:
* IP65 protect degree for outdoor and indoor
* Powder coated metal
DC Switch:
* 1200V 4P 250A
* DC-PV2 category Highly reliable
* IEC 60947.3
Type 2 DC Surge Arrester: BUD-40/3
* Over-voltage protection
* 1000V 40KA
* IEC61643 / EN50539
* Recommend by top inverter brands
DC Fuse Holder: BR-30
* Over-current protection
* LED indicator
* Finger safe touch
* 10x38mm LITTEL 1000V 15A
BHS-16/1 solar PV combiner box is equipped with DC-PV2 disconnect switch, finger safe touch DC fuse holder and type 2 DC surge arrester.
All the best DC components are pre-assembled in a durable enclosure.
These reliable PV components bring maximum protection.
Keep the solar PV system safe and in good operation condition, longer the system working life.
Highlight:
* 1000V
* 16 strings input
* 1 string output
Enclosure:
* IP65 protect degree for outdoor and indoor
* Powder coated metal
DC Switch:
* 1200V 4P 250A
* DC-PV2 category Highly reliable
* IEC 60947.3
Type 2 DC Surge Arrester: BUD-40/3
* Over-voltage protection
* 1000V 40KA
* IEC61643 / EN50539
* Recommend by top inverter brands
DC Fuse Holder: BR-30
* Over-current protection
* LED indicator
* Finger safe touch
* 10x38mm LITTEL 1000V 15A
Please contact us for a customized solution from 1 string to 24 strings
1000V 1500V combiner box for solar project
In Projects
Find the true DC components manufacturer.
You find the reliable supplier of reliable solar combiner box.
You have the string level protection for your projects.
Exhibitions
Company Information
ZJBENY is located in Yueqing City, the switch city of China.
We are specialized in solar DC components for 30 years.
The first DC switch manufacturer listed by AS 60947.3:2018 and UL508i in China.
Top 1 DC components and DC string box supplier in China.
Testing
