Solar Panel Combiner Box 4 input 1 Output IEC Standard TRUE DC components Protection
Tips of the Quality Solar Combiner Box:
1. Enclosure: A direct impact on the life of the combiner.
- Most combiners box are installed outdoor, IP65 IP66 degree is important.
- UV resistance and good flame retardant for PC plastic enclosure.
- The larger enclosure for better cooling of internal components.
2. True DC components for solar PV.
- As TOP 1 solar DC components manufacturer in China, the solar combiner box is equiped with TRUE DC disconnect switch, 1000V DC surge arrester which is used in SolarEdge Inverter too and Finger safe touch 1000V DC fuse holder.
- The fuse should be TOP brands from LITTEL or Bussmann.

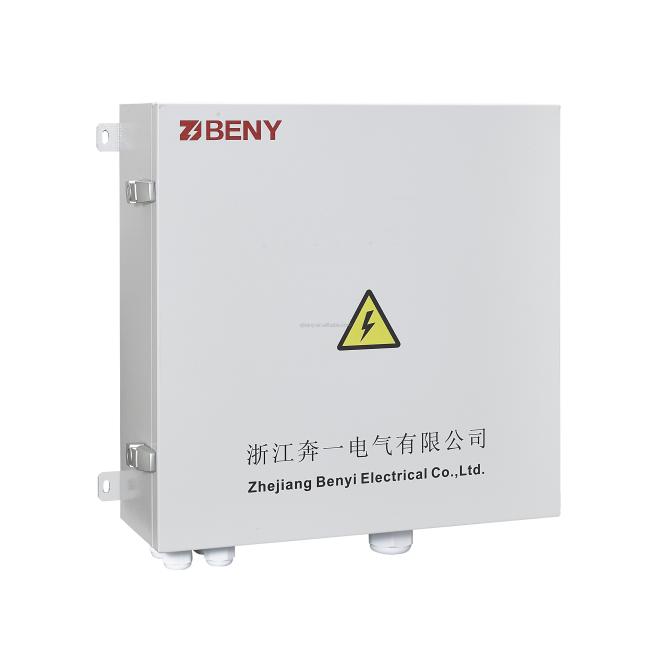

BHT-4/1 solar PV combiner box is equipped with 63A disconnect switch, finger safe touch DC fuse holder with 15A fuse link and type 2 1000V DC surge arrester.
All the best DC components are pre-assembled in a durable enclosure.
These reliable PV components bring maximum protection.
Keep the solar PV system safe and in good operation condition, longer the system working life.
Highlight:
* 1000V
* 4 strings input
* 1 string output
Enclosure:
* IP65 powder coating metal enclosure
DC Switch:
* 1200V 4P 63A
* DC-PV2 category Highly reliable
* IEC 60947.3
Type 2 DC Surge Arrester: BUD-40/3
* Over-voltage protection
* 1000V 40KA
* IEC61643 / EN50539
* Recommend by top inverter brands
DC Fuse Holder: BR-30
* Over-current protection
* LED indicator
* Finger safe touch
* 10x38mm 1000V 15A
| Model | BHT-4/1 |
| Certificate | TUV |
| Standard | IEC62109 IEC61439 |
| Warranty | 5 Years for any quality problems |
| Voltage | 1000V |
| DC Switch Mechanical Cycle | 15000 |
| DC Switch Electrical Cycle | 1000 |
| Protection Degree | IP65 |
| Dimension | 440*250*150mm |
