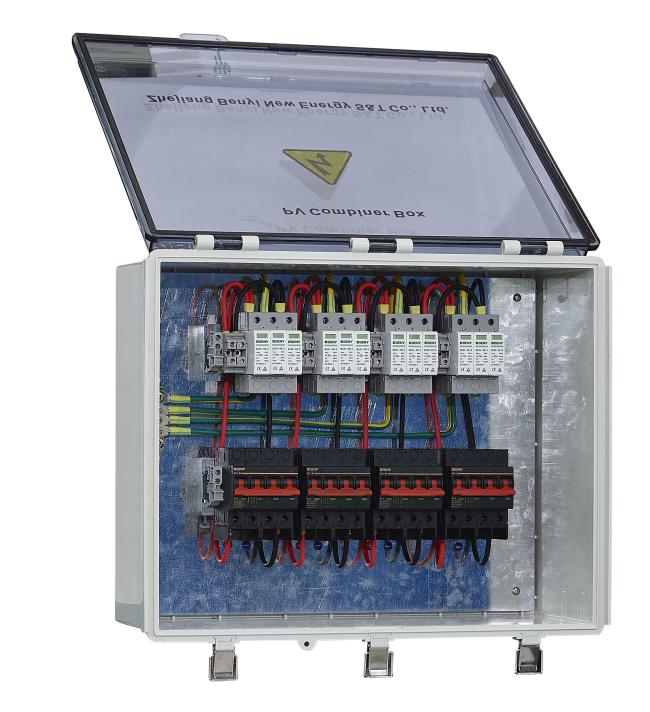

dc solar combiner box string box 4 input 4 output waterproof IP65 pv DC string box
4 input 4 output 600VDC / 1000VDC
IP65 DC string box is designed for 4 strings PV system.
For surge protection and current protection at solar DC side.
DC Breaker
*UL489B PV standard
*IEC60947-2
*Over-load, short circuit Protection
*Non Polarity for easier wiring
DC SPD
*New IEC 61643, UL1449
*Designed for solar PV protection
*Higher capacity In 20KA ( IEC, UL )
*Response time <25ns
| Specification |
|
| Model Number | BHS-4/4 |
| Input | 4 strings |
| Output | 4 strings |
| Max Voltage | 1000V |
| Rated Current of DC Breaker | 32A/32A/32A/32A |
| Max Current Output | 63A/63A/63A/63A |
|
| |
| Enclosure |
|
| Material | Poly carbonate/ABS |
| Degree of Protection | IP65 |
| Impacts | IK10 |
| Dimensions | 400*500*200mm |
| Input Cable Glands | PG09, 2.5-16 |
| Output Cable Gland | PG21, 2.5-16 |
|
| |
| Environment |
|
| Operating temperature | -25℃ - +60℃ |
