1000V 4 String Combiner Box Customized Solutions for PV Projects
Price:
$104.50/pieces 1-49 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBNEY
Product Description
Live Stream
Now Click for More
Products Description

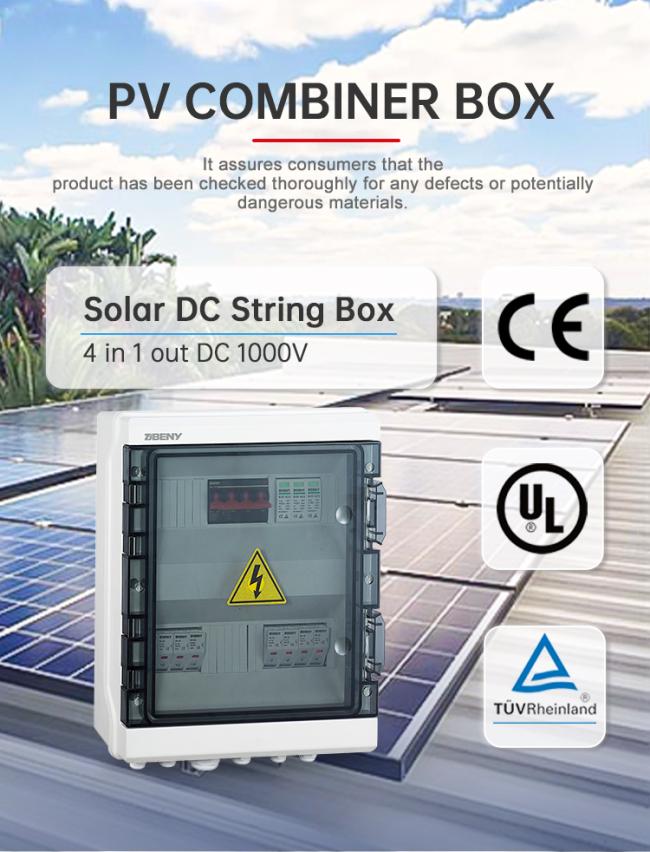

BHS-4/1 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.
BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box

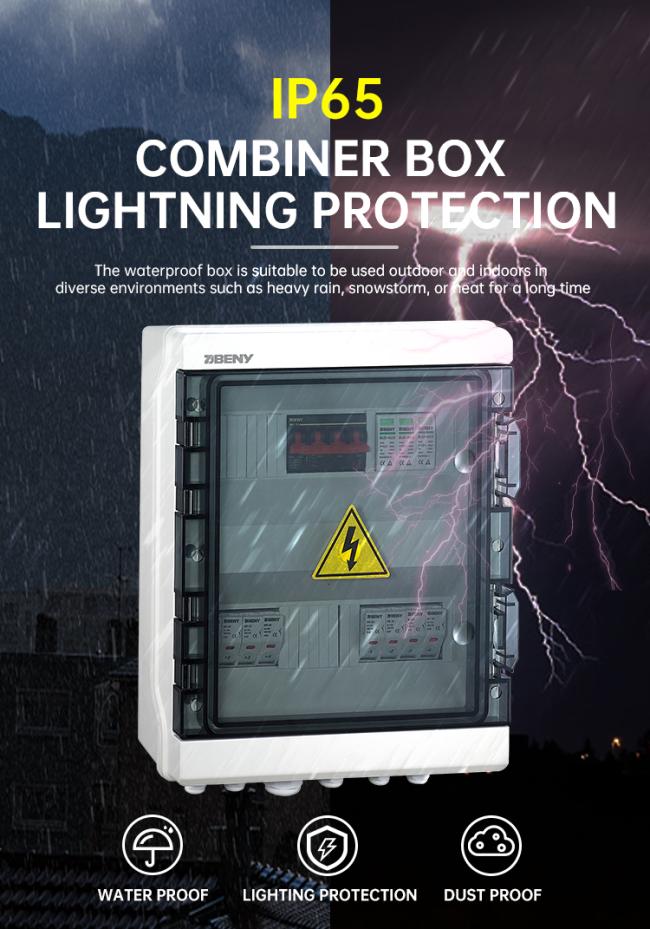

*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||
Model No. | BHS-4/1 | |
Input | 4 strings | |
Output | 1 string | |
Maximum Voltage | 1000V | |
Max DC Short Circuit Current Per Input（Isc） | 15A（Changeable） | |
Maximum Current Output | 63A | |
Enclosure | BX-26 | |
Material Type | Polycarbonate/ABS | |
Degree of Protection | IP65 | |
Degree of Resistance to Impacts | IK10 | |
Dimension（W*H*D） | 292*370*132mm | |
Cable input Entry | PG09 Cable Gland,2.5-16mm² | |
Output Cable Gland | PG21 2.5-16mm² | |
DC Switch Disconnector | BB1H-63 | |
Rated Insulation Voltage （Ui） | 1000V | |
Rated Current（Le） | 63A | |
Certification | CB,CE | |
DC Surge Arrester | BUD-40/3 | |
Max Operation Voltage（Ucpv） | 1000V | |
Maximum Discharge Current | 40KA | |
Certification | TUV,CE | |
DC Fuse Holder | BR-30 | |
Rated WorKing Voltage | 1000V | |
Fuse Link | 10*38mm Littel 15A | |
Certification | UL,CB,CE | |
