dc solar panel string box 4 input 2 output PV array dc combiner box
Price:
$116.60/pieces 1-46 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
Live Stream
Now Click for More
Products Description

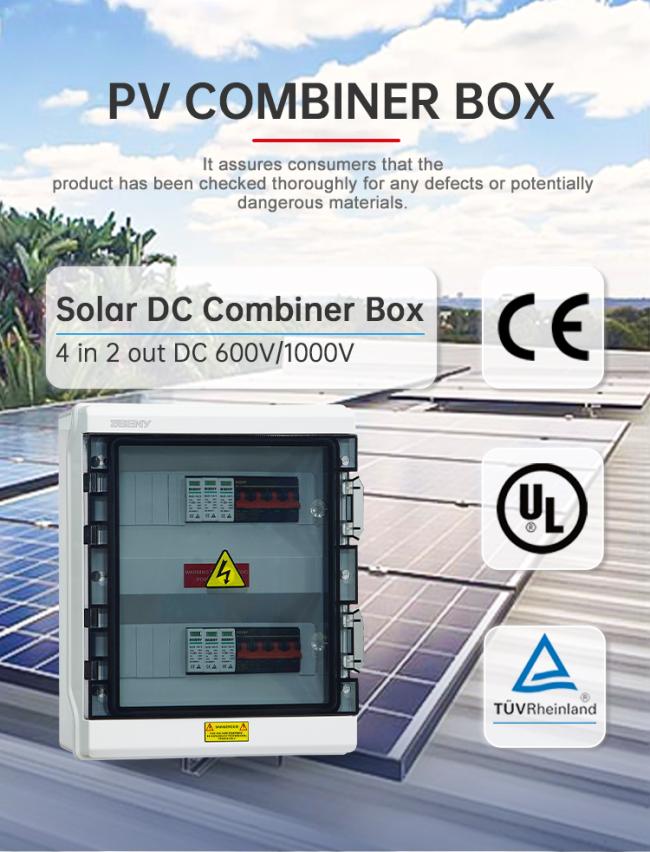

BHS-4/2 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.-Protections including over-voltage, over-load for longer the solar system working life.

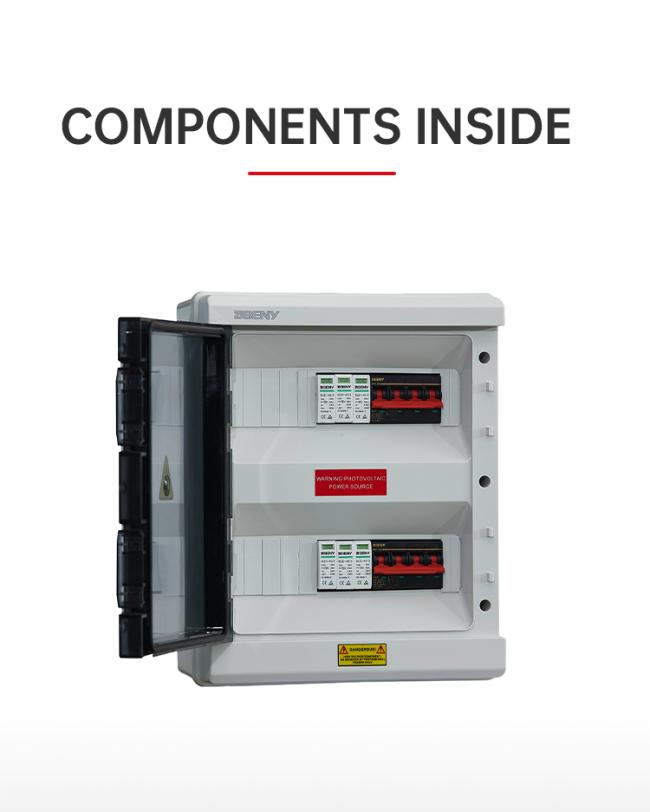

-Equipped with the most reliable DC components bring maximum protection.
BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box

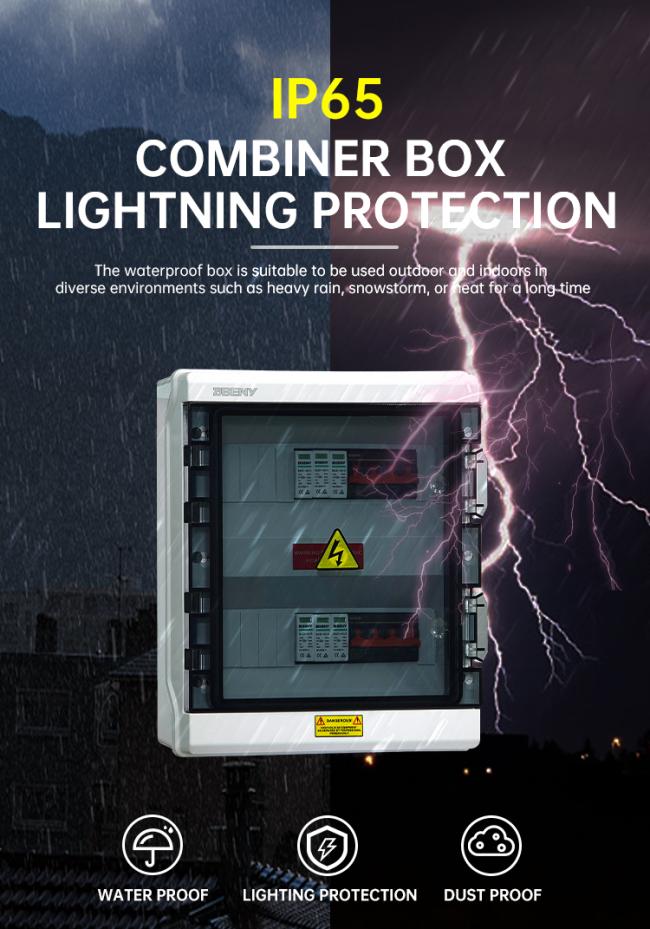

*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | |||
Model No. | BHS-4/2 | ||
Input | 4 strings | ||
Output | 2 strings | ||
Maximum Voltage | 600V | 1000V | |
Rated Current of DC Breaker | 25A/25A | 25A/25A | |
Maximum Current Output | 63A/63A | 63A/63A | |
Enclosure | |||
Material Type | Polycarbonate/ABS | ||
Degree of Protection | IP65 | ||
Degree of Resistance to Impacts | IK10 | ||
Dimension（L*W*H） | 302*373*131mm | ||
Cable input Entry | PG09 2.5-16mm² | ||
Output Cable Gland | PG21 2.5-16mm² | ||
