solar pv strings dc combiner box 4 strings IP66 hot sale for solar Pv safety
Price:
$97.20/pieces 1-59 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
Live Stream
Now Click for More
Products Description

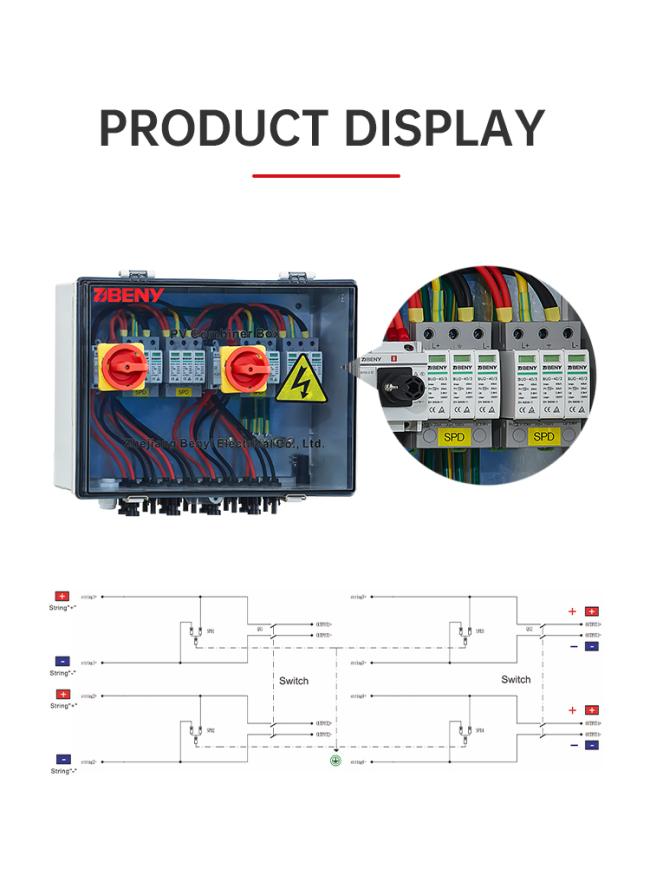

BHS-4/4 1000V DC Door Clutch Box for Solar PV
IP66 DC string box is designed for 3 string PV system. For surge protection and isolating at solar DC side.BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||
Model No. | BHS-4/4 | |
Input | 4 strings | |
Output | 4 strings | |
Max Voltage | 1000V | |
Short Circuit Current per Input(ISC) | 12A-30A(changeable) | |
Max Current Output | 50A | |
Enclosure | ||
Material Type | Polycarbonate | |
Degree of Protection | IP65 | |
Degree of Resistance to Impacts | IK10 | |
Dimension（W*H*D） | 300*400*180mm | |
Input Cable Glands | PG09 ,2.5-16mm² | |
Output Cable Gland | PG21 2.5-16mm² | |
