Solar pv string box solar panel combiner box 2 input 2 output 600VDC / 1000V
Price:
$84.70/pieces 1-58 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
Live Stream
Now Click for More
Products Description

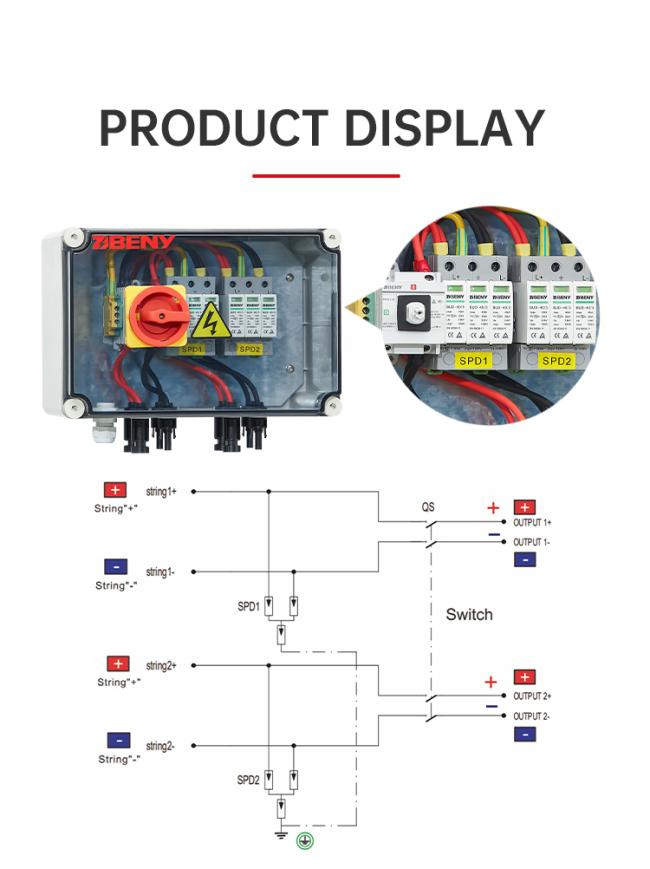

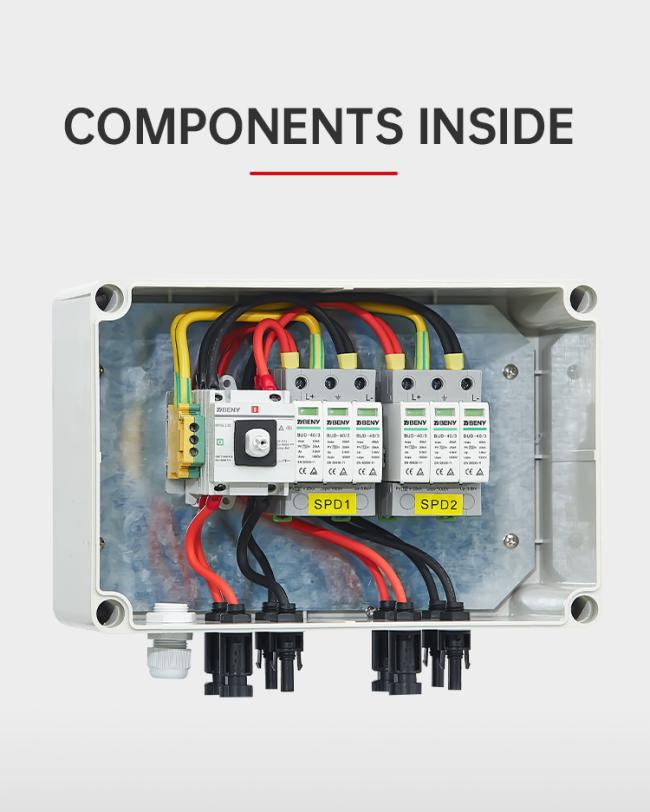

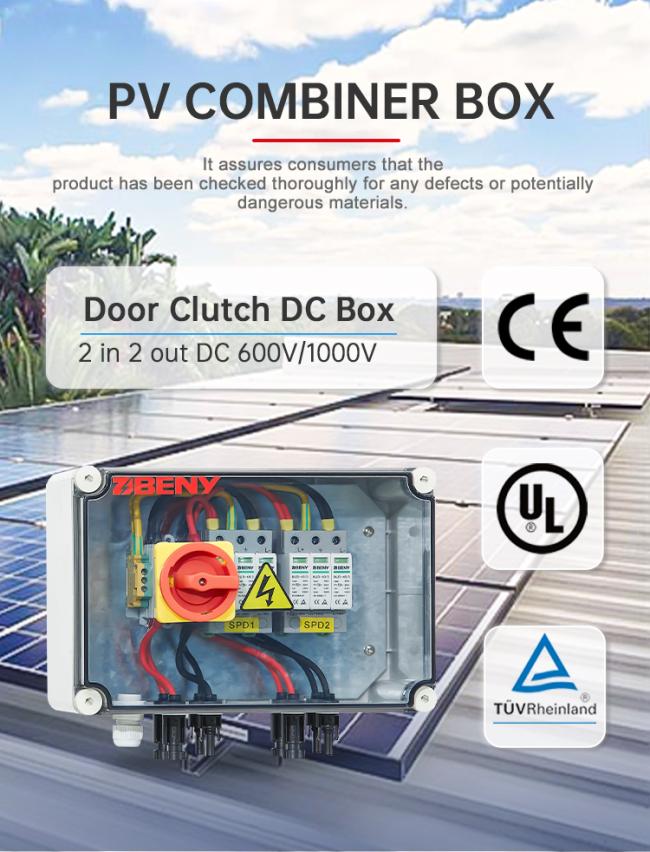

BHS-2/2 600V&1000V DC Door Clutch Box for Solar PV

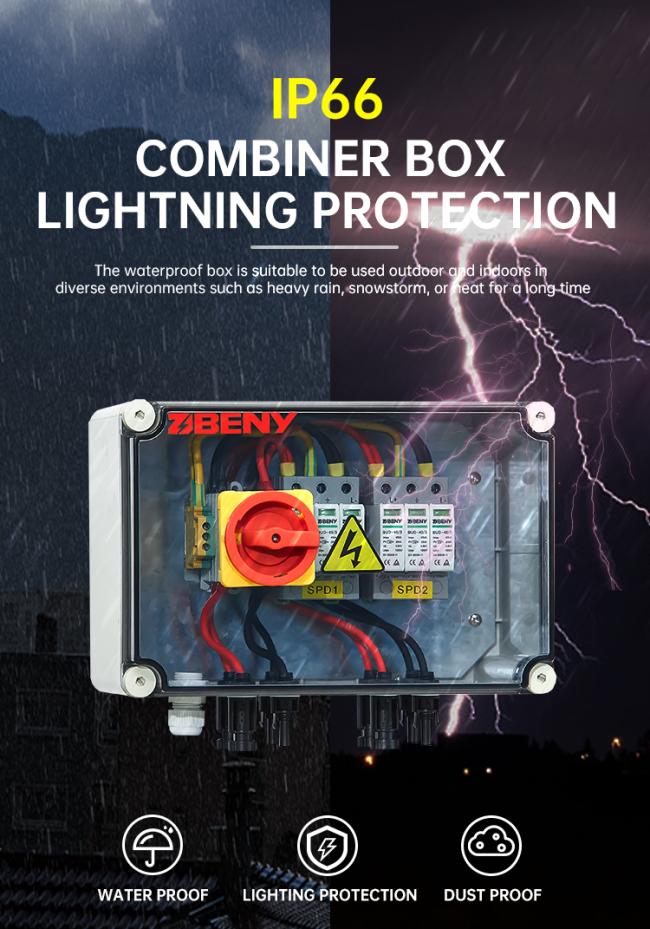

IP66 DC string box is designed for 2 string PV system. For surge protection and isolating at solar DC side.BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||||
Model No. | BHS-2/2 | |||
Input | 2 strings | |||
Output | 2 strings | |||
Max Voltage | 600V | 1000V | ||
Short Circuit Current per Input(ISC) | 15A-30A(changeable) | |||
Max Current Output | 50A | 50A | ||
Enclosure | ||||
Material Type | Polycarbonate | |||
Degree of Protection | IP65 | |||
Degree of Resistance to Impacts | IK10 | |||
Dimension（W*H*D） | 200*300*150mm | |||
Input Cable Glands | PG09 ,2.5-16mm² | |||
Output Cable Gland | PG21 2.5-16mm² | |||
