Solar panel string box 12 input 1 output 1500V IP66 DC combiner box for PV safety
12 input 1 output 1500V

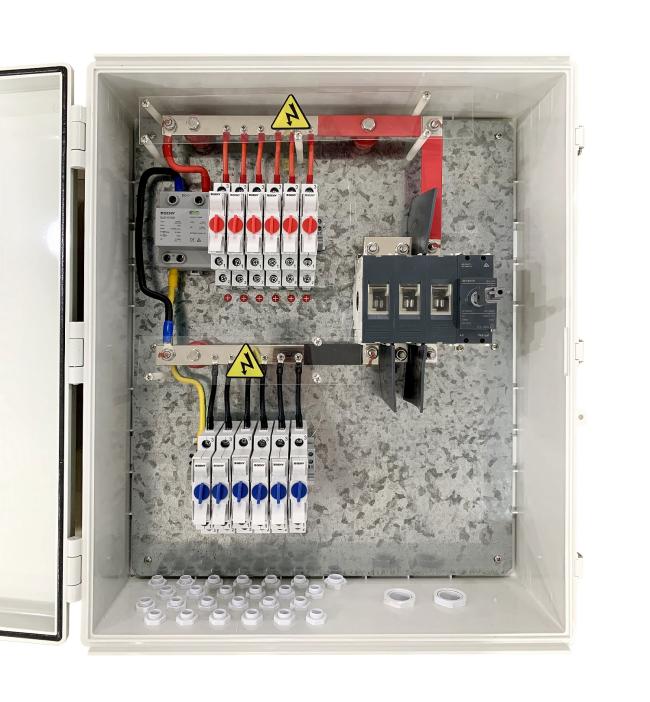

BHS-12/1 IP66 DC combiner box is designed for 1500V PV system up to 12 strings.
With over-voltage protection, fuse over-current protection build-in.
DC Isolator Switch
*IEC60947, UL98B approval
*Door clutch easier operating and lockable handle
*Patented DC arc extinguish chamber
DC SPD
*New IEC 61643, UL1449
*Designed for solar PV protection
*Higher capacity In 20KA ( IEC, UL )
*Response time <25ns
| Specification |
|
| Model Number | BHS-12/1 |
| Input | 12 strings |
| Output | 1 string |
| Max Voltage | 1500V |
| Short Circuit Current per Input (Isc) | Fuse link 15A-30A (changeable) |
| Max Current Output | 250A |
| Certificate | TUV CE |
|
| |
| Enclosure |
|
| Material | GLASS FIBER |
| Degree of Protection | IP65 |
| Impacts | IK10 |
|
| |
| Environment |
|
| Operating temperature | -25℃ - +60℃ |
Q:Can I get a sample before I place an order ?
A:Yes,of course and sample fee will be charged but it is refundable if you place order afterwards.
Q:When will I receive my order normally?
A:Normally , It takes 1 week from 1-100 pieces, 2 weeks from 100- 500 pieces, 3-4 weeks if it ups to 500 pieces..
Q:What is your payment methods ?
A:We can accept 100% TT via Alibaba .
Q:What is your shipping methods?
A:Normally we ship goods by express ,by air or sea.
Q:How long the warranty lasts for?
A:Our policy allows to exchange within 5 years.
