600V 1000V Solar DC Box for Solar Rooftop Systems Protection

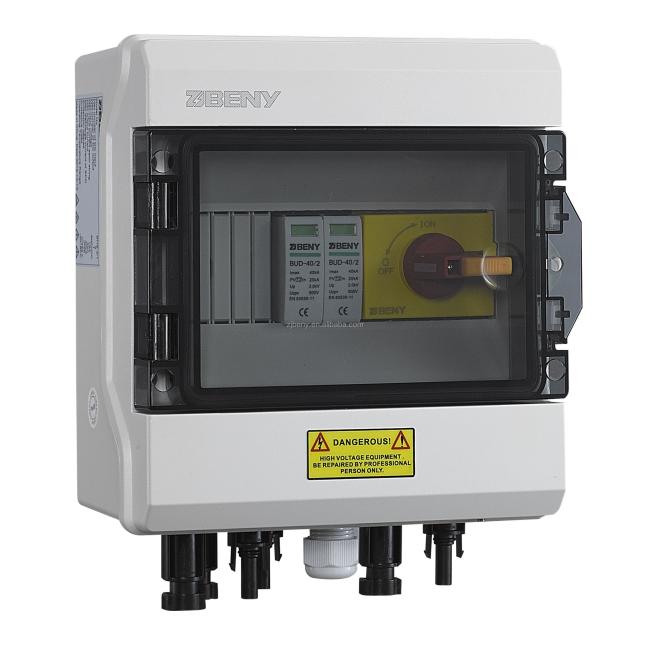

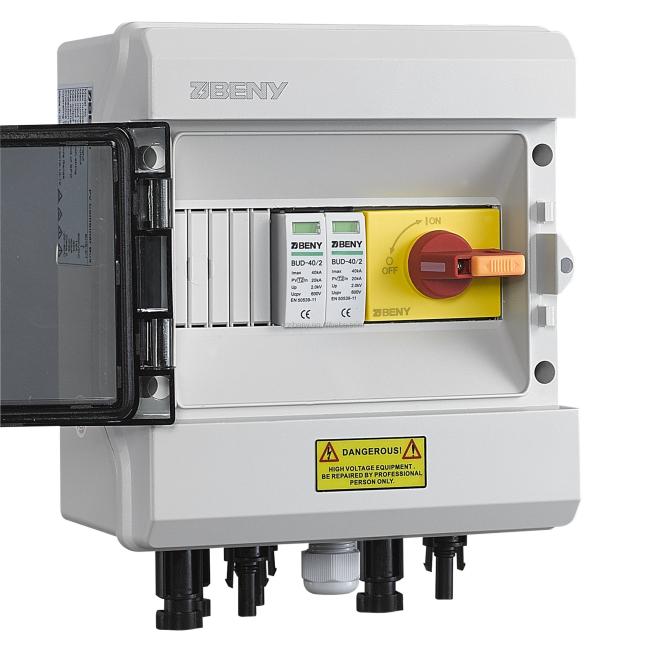

Solar DC Combiner Box BHS-2/1M
- IP65 PC enclosure:UV resistance and flame retardant plastic
- 600V 1000V DC disconnect switch 4P 32A
- 600V 1000V DC surge arrester recommend by well know inverter brands
- MC4 connectors for input and output
| Model | BHS-2M |
| Certificate | TUV |
| Standard | IEC62109 IEC61439 |
| Warranty | 5 Years for any quality problems |
| Voltage | 600V 1000V |
| DC Switch Mechanical Cycle | 15000 |
| DC Switch Electrical Cycle | 1000 |
| Protection Degree | IP65 |
We can customize 1 string to 32 strings combiner box for solar PV application.
Please contact us for customize solutions and free diagram.
Tim Wu
Email: wjl(at)zjbeny.com
Skype: timwu9111
Web: www.zjbenydc.com
Tips of the Quality Solar Combiner Box:
1. Enclosure: A direct impact on the life of the combiner.
- Most combiners box are installed outdoor, IP65 IP66 degree is important.
- UV resistance and good flame retardant for PC plastic enclosure.
- The larger enclosure for better cooling of internal components.
2. True DC components for solar PV.
- As TOP 1 solar DC components manufacturer in China, the solar combiner box is equiped with TRUE DC disconnect switch, 1000V DC surge arrester which is used in SolarEdge Inverter too and Finger safe touch 1000V DC fuse holder.
- The fuse should be TOP brands from LITTEL or Bussmann.
Tim Wu
Email: benyi(at)zjbeny.com
Skype: timwu9111
Web: www.zjbenydc.com
Thousands of installations with 0 failure



ZJBENY is located in Yueqing City, the switch city of China.
We are specialized in solar DC components for 30 years.
The first DC switch manufacturer listed by AS 60947.3:2018 and UL508i in China.
Top 1 DC components and DC string box supplier in China.
