AC Distribution Box for Solar PV ON Grid Distribution
Price:
$42.00/pieces 1-49 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZJBENY
Product Description
Live Stream
Now Click for More
Products Description

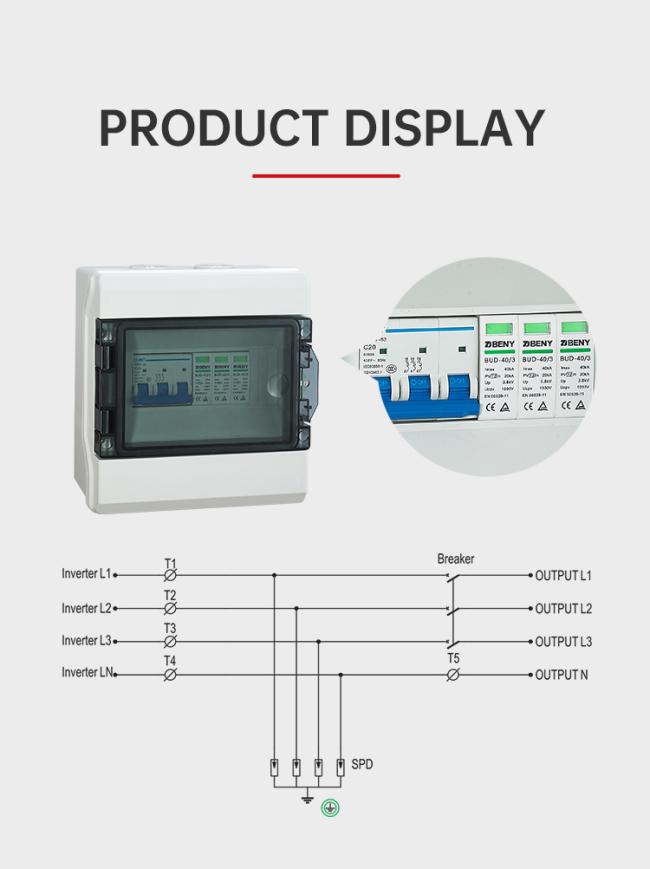

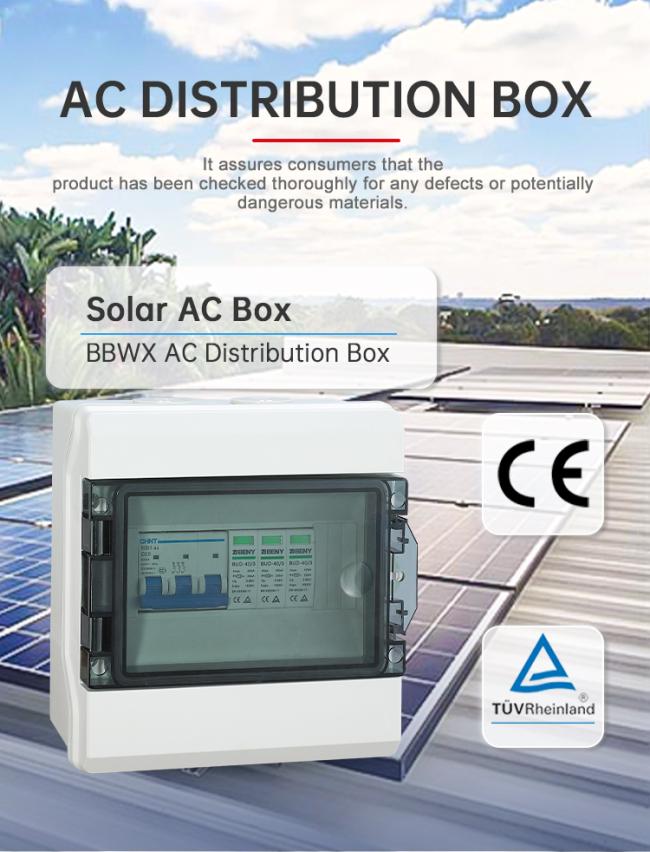

AC Distribution Box

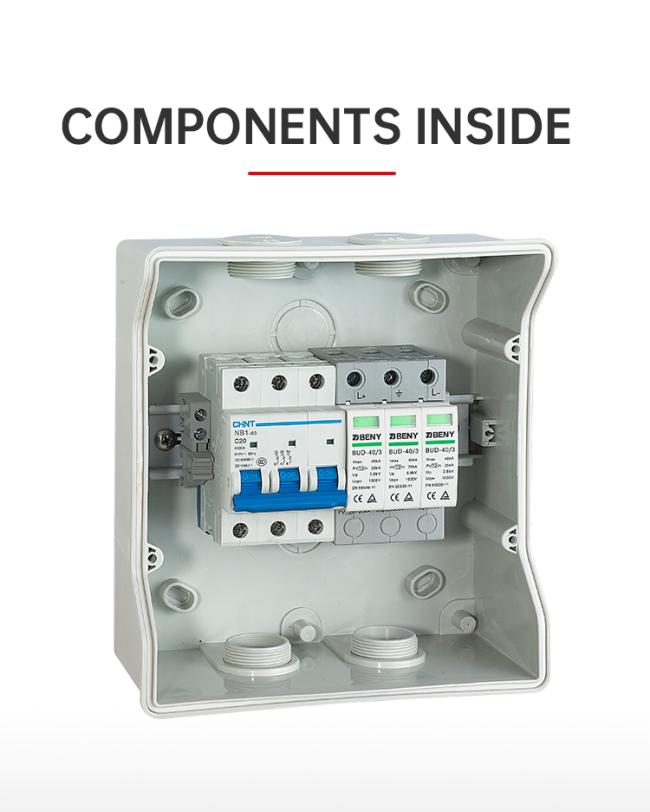

-BBWX is a series of AC distribution box for on-grid solar residential system. -Build-in with AC breaker and AC SPD from 220V-400V.BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||
Model No. | BBWX | |
Rated Voltage | AC 220V~400V | |
Rated Current | 0-125A | |
Rated Frequency | 50-60Hz | |
Enclosure | ||
Material Type | Polycarbonate/ABS | |

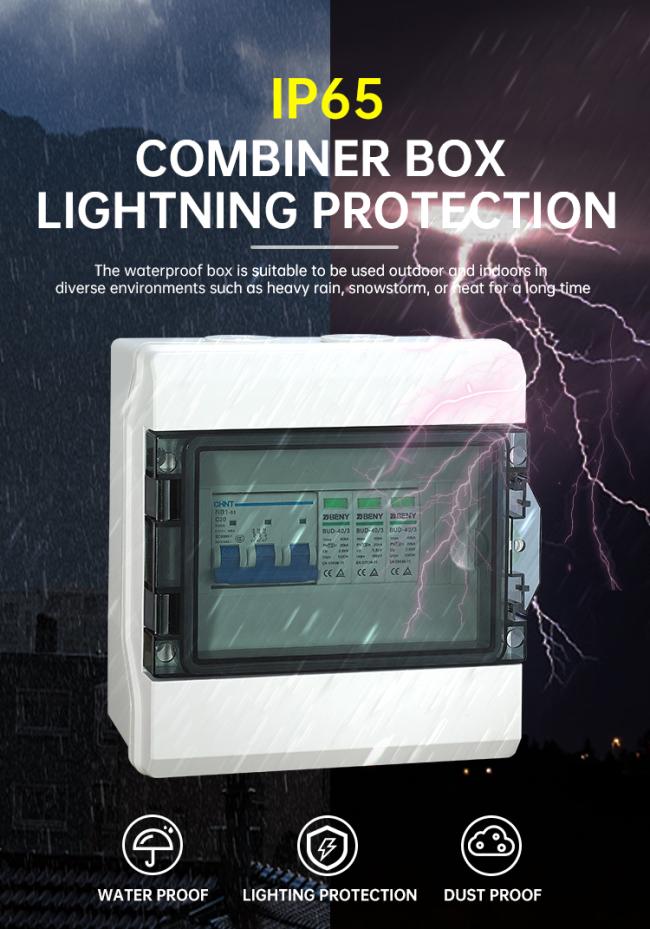

Degree of Protection | IP65 | |
Degree of Resistance to Impacts | IK10 | |
Dimension（W*H*D） | 292*220*120mm | |
Cable input Entry | PG25 2.5-25mm² | |
Output Cable Gland | PG21 2.5-25mm² | |
Modular Measurement and Control Relays | BB1H-63 | |
Network number of phases | Single Phase/3 Phases | |
Rated Current | 0-125A | |
Measurement range | 220V~400V voltage AC | |
Supply Frequency | 50~60Hz±10％ | |
AC Surge Arrester | ||
Electric Rating | 220V~440V,50-60HZ | |
Maximum Discharger Current | 40KA | |
Certification | CE | |
