UL98 Listed 2P 1500V 250A DC Disconnect Switch Load Break Switch

Price Negotiable
Price: $80.00/pieces >=6 pieces
MOQ: 6 pieces
Delivery Time: Negotiable
Brand: ZJBENY
Product Description
Product Description

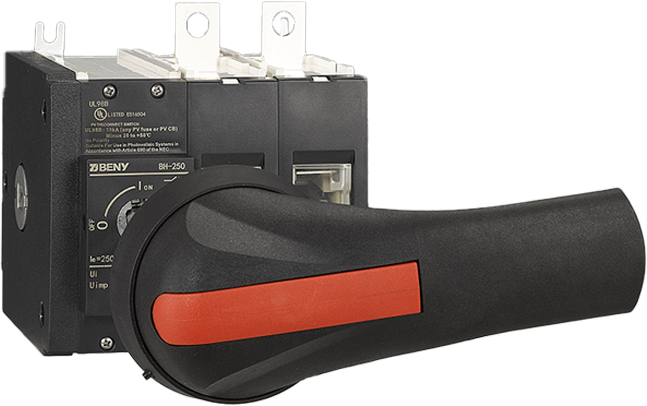

Solar DC switch disconnect up to 1500V 250A UL listed



One BH-250-4P DC switch disconnect can hold two 1000V strings, current range from 80A to 250A.
One BH-250-3P switch can hold one DC string at 1500V, current range from 80A to 250A.

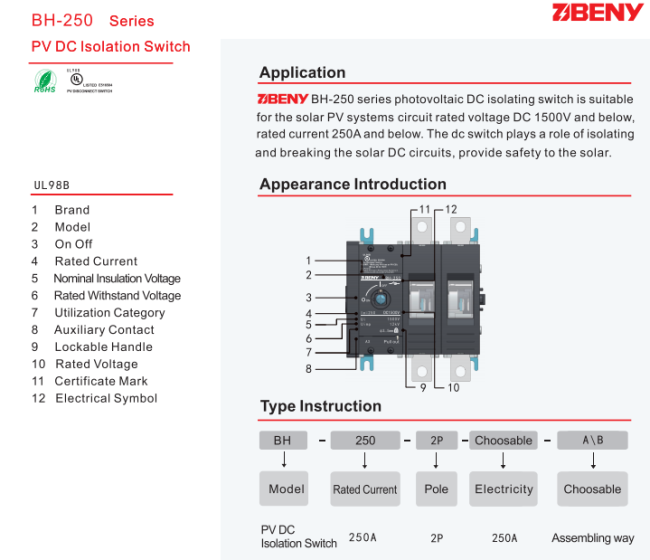

BH-250 series solar disconnect is developed for 1000V 1500V utility-scale photovoltaic power plants.





Key features

*Non-polar switch
*Modular and compact design
*Reliable DC arc extinguishing technology with PCT patents
*High capacity 10KA for 50ms test.
*Lower power losing
*IEC , UL98 listed

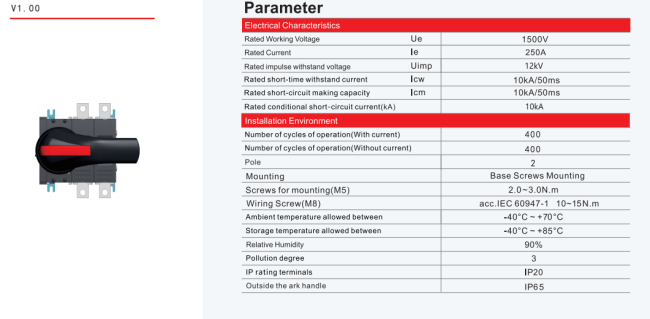

Technical data
