DC DISCONNECT SWITCH 1500V DC isolator switch
Solar DC switch disconnect up to 1500V 250A

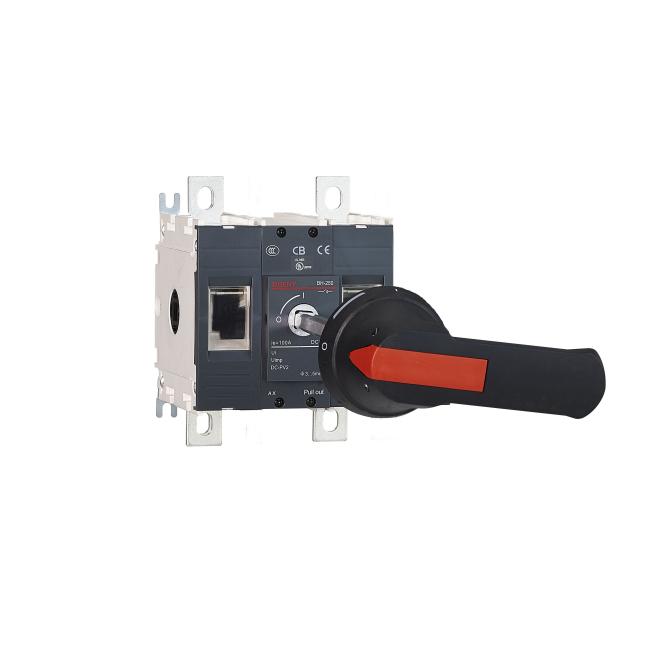

BH-250 DC switch according to IEC60947.3 and AS60947.3 PV standard.
One BH-250-2P DC switch disconnect can hold one 1000V string, current range from 80A to 250A.
One BH-250-3P switch can hold one DC string at 1500V, current range from 80A to 250A.
One BH-250-4P DC switch disconnect can hold two 1000V strings, current range from 80A to 250A.
BH-250 series solar disconnect is developed for 1000V 1500V utility-scale photovoltaic power plants.
Features
*IEC60947.3 and AS60947.3
*2P 4P 1000V 80A-250A
*3P 1500V 80A-250A
*Patented arc extinguished chamber
*Lockable handle
| Model | BH-250 |
| Poles | 2P 3P 4P |
| Standard | IEC60947.3/ AS60947.3 |
| Rated Current | 80A,100A,125A,160A,200A,250A |
| Rated Operational Voltage (Ue) | 1000V,1500V |
| Mechanical Cycle | 10000 |
| Electrical Cycle | Ie<=100A: 300 , Ie>100A: 400 |
| Protection Degree | IP20 switch body, IP66 for enclosure |
| Polarity | No Polarity |
| Certificate | TUV SAA |
Q:Can I get a sample before I place an order ?
A:Yes,of course and sample fee will be charged but it is refundable if you place order afterwards.
Q:When will I receive my order normally?
A:Normally , It takes 1 week from 1-100 pieces, 2 weeks from 100- 500 pieces, 3-4 weeks if it ups to 500 pieces..
Q:What is your payment methods ?
A:We can accept 100% TT via Alibaba .
Q:What is your shipping methods?
A:Normally we ship goods by express ,by air or sea.
Q:How long the warranty lasts for?
A:Our policy allows to exchange within 5 years.
