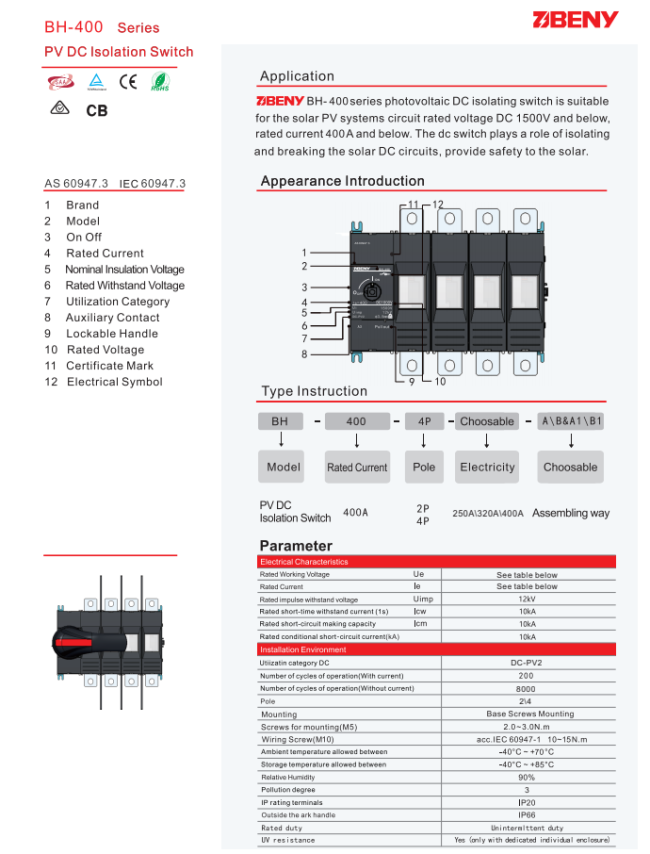

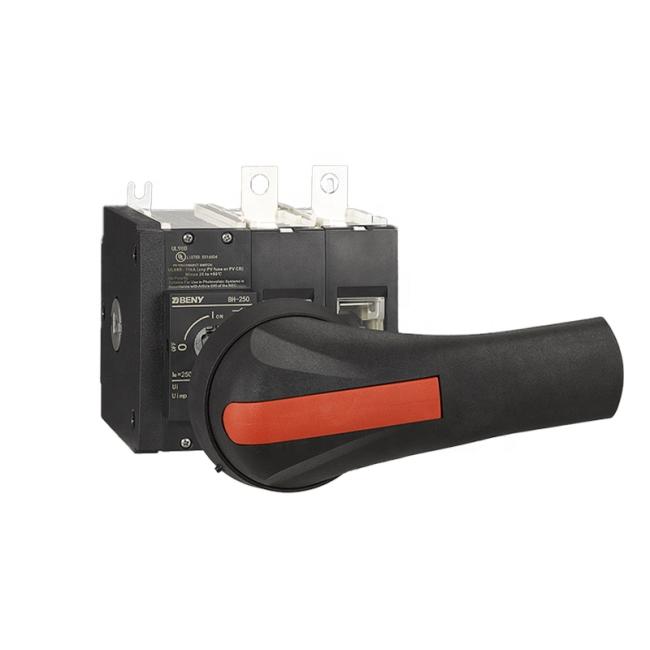

DC Isolator Switch Disconnector 400A 1000V UL98 Standard 2P
Solar disconnects up to 1500V 250A 1 string
BH-400 Solar disconnect safety switch for 1000V and 1500V string, current range from 250A to 400A.
Non-polar solar disconnects easy and safe to switch the solar PV circuits.
Application in 1000V 1500V high power solar inverter and combiner box.
Key features
*Non-polar switch
*Modular and compact design
*Reliable DC arc extinguishing technology with PCT patents
*High capacity 10KA for 50ms test.
*Lower power losing
*IEC , UL98 listed*Non-polar switch
*Modular and compact design
*Reliable DC arc extinguishing technology with PCT patents
*High capacity 10KA for 50ms test.
*Lower power losing
*IEC , UL98 listed

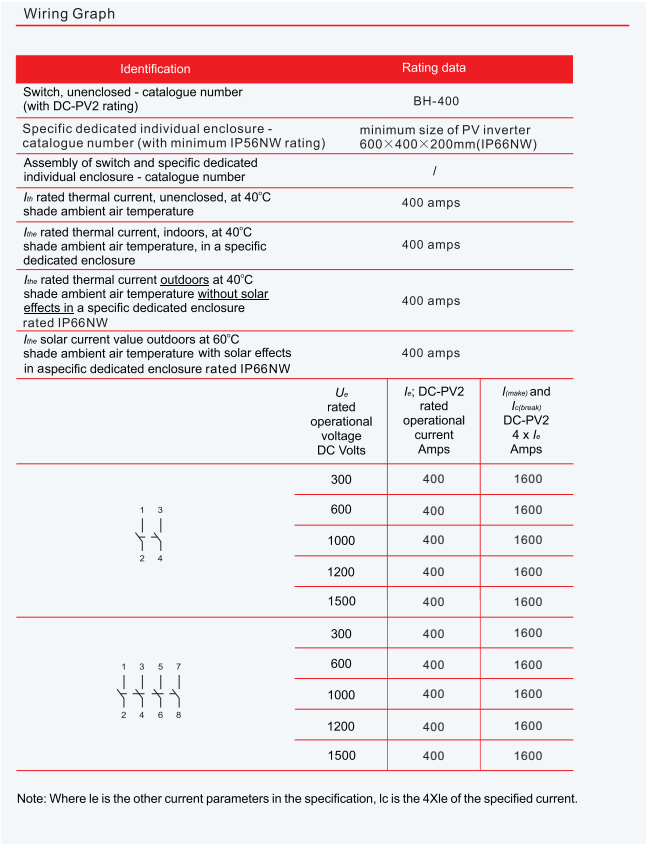

Technical data
| Model | BH-400 |
| Poles | 2P 4P |
| Standard | UL98B ,IEC |
| Rated Current | 250A,320A,400A |
| Rated Operational Voltage (Ue) | 1000V,1500V |
| Mechanical Cycle | 8000 |
| Electrical Cycle | 200-400 |
| Protection Degree | IP20 switch body, IP66 for enclosure |
| Polarity | No Polarity |
| Certificate | UL CB TUV |
ZJBENY is located in Yueqing City, the switch city of China.
We are specialized in solar DC components for 30 years.
The first DC switch manufacturer listed by AS 60947.3:2018 and UL508i in China.
Top 1 DC components and DC string box supplier in China.
