2 pole disconnect switch DC isolator switch electrical switch disconnect 600v dc

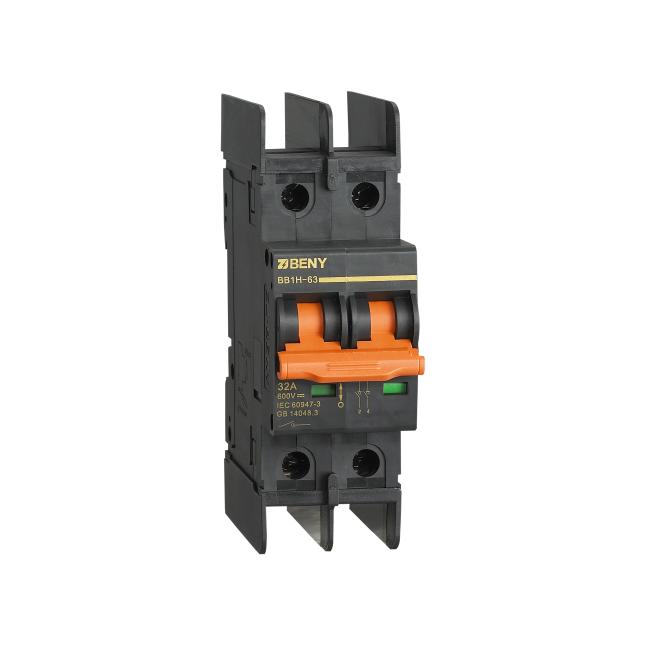

DC isolator switch 300V- 1200V up to 63A
DC switch up to 63A 1200V, compact design for solar DC circuit, UPS, battery energy storage systems application.
Non-polarity DC switch for easier wiring.
Arc flash barrier design keeps solar equipment more safe and reliable.
Features:
* 1200Vdc 63A
* 3ms arc suppression
* IEC 60947.3

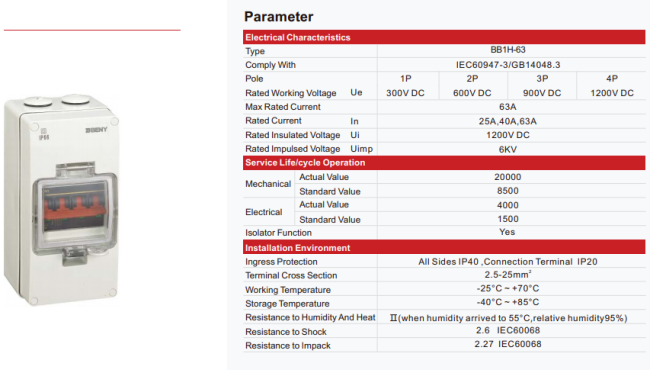

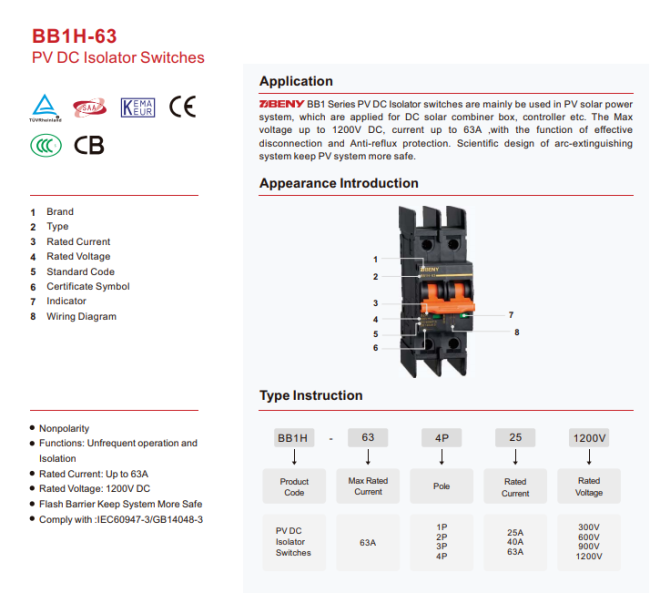

| Model | BB1H-63 |
| Poles | 1P 2P 3P 4P |
| Standard | IEC60947.3 |
| Rated Operational Voltage (Ue) | 300V,600V,900V,1200V |
| Rated Current | 25A 40A 63A |
| Mechanical Cycle | 20000 |
| Electrical Cycle | 4000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | CE/ CB |
Q:Can I get a sample before I place an order ?
A:Yes,of course and sample fee will be charged but it is refundable if you place order afterwards.
Q:When will I receive my order normally?
A:Normally , It takes 1 week from 1-100 pieces, 2 weeks from 100- 500 pieces, 3-4 weeks if it ups to 500 pieces..
Q:What is your payment methods ?
A:We can accept 100% TT via Alibaba .
Q:What is your shipping methods?
A:Normally we ship goods by express ,by air or sea.
Q:How long the warranty lasts for?
A:Our policy allows to exchange within 5 years.
