1500V Isolator Switch IP66 SAA certificate for Solar Panels Isolation
The only true 1500V DC isolator switch in IP66 enclosure

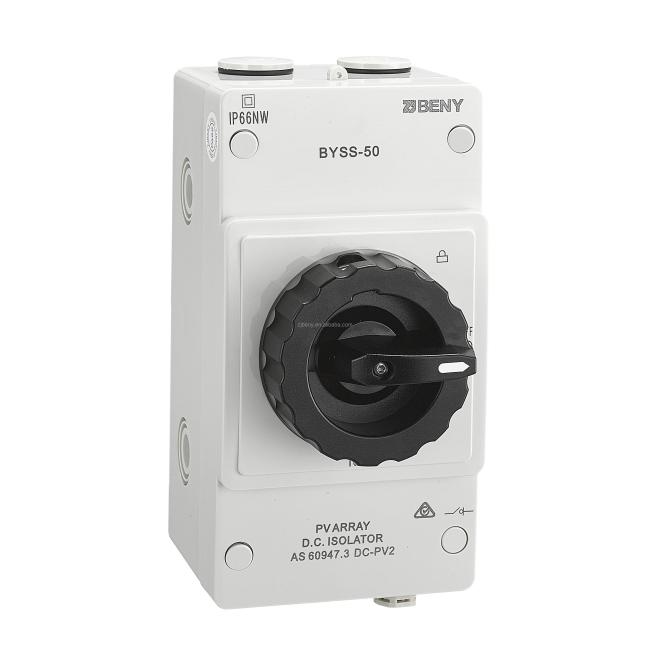

BYSS-50 DC isolator can hold 1500V at 35A, 1000V at 50A per pole.
As the solar panels current rating is increasing day by day, the commercial systems require higher voltage and current rating isolators.
ZJBENY developed compact BYSS-50 for solar commercial systems.
Highlight:
* 1500V 35A / 1000V 50A
* Arc extinguished in 3ms
* IP66 for solar PV outdoor application
* UV resistance and flame retardant material
* AS 60947.3:2018, IEC 60947.1:2015
* Breather valve on the bottom
* Lockable at off position
* Anti-counterfeit label for original ZJBENY
* 5 years warranty and product insurance
Technical data:
| Model | BYSS-50 |
| Poles | 4P |
| Standard | IEC60947.3,AS60947.3 |
| Utilization Category | DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) | 300V,600V,1000V,1200V,1500V |
| Mechanical Cycle | 10000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | SAA / TUV / CB |
On each solar PV installation including ZJBENY, we design and supply DC string level protection for solar PV safety.Thousands of solar PV installations with 0 failure.
DC components/Solar combiner box, DC safety solutions for all kinds of photovoltaic systems.
