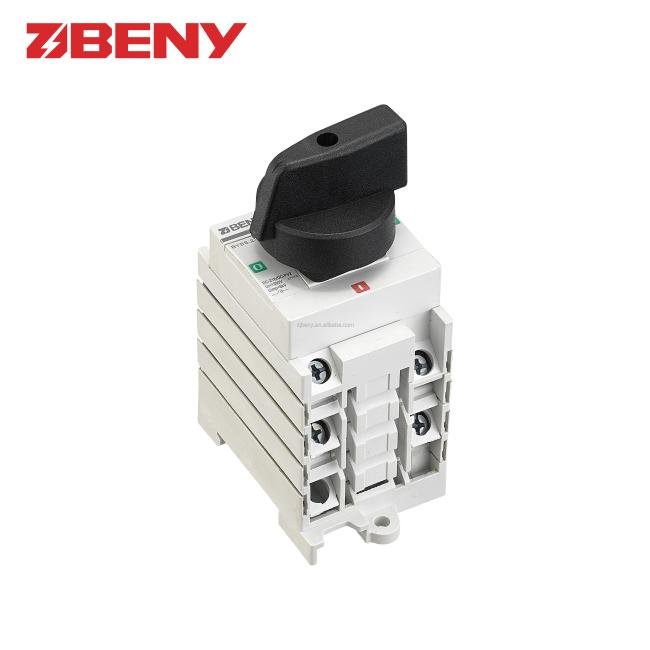

PV DC disconnector switch
1000V 1500V solar DC disconnect switch
The BYSS series DC switch up to 1500V is designed for solar inverter DC side disconnect.
ZJBENY knows how to make reliable and long lifetime DC switches.
The patented arc extinguishing chambers and instruction make fast and safely switch ON and OFF.
The special instruction is only available in ZJBENY DC switch.
IP66 enclosure and more customized solutions for multiply inverters’ application.
Reliable
UL Listed materials
Application in top inverter brands
Patented arc extinguishing instruction for arc interruption in 3ms.
Standards
The first DC switch in China listed by UL508i
IEC60947 , DC-PV2
AS60947, DC-PV2
CCC
Applications
Solar inverters
Solar combiners
Technical data
Model | BYSS.1 / BYSS.2 |
Poles | 2P 3P 4P 6P 8P 9P |
Standard | UL508i / IEC60947.3 |
Utilization Category | DC-PV2 |
Rated Operational Voltage (Ue) | 800V,1000V,1200V,1500V |
Mechanical Cycle | 10000 |
Electrical Cycle | 6000 |
Protection Degree | IP20 switch body |
Polarity | No Polarity |
Certificate | UL / TUV / CCC / SAA |
On each solar PV installation including ZJBENY, we design and supply DC string level protection for solar PV safety.Thousands of solar PV installations with 0 failure.
DC components/Solar combiner box, DC safety solutions for all kinds of photovoltaic systems.
ZJBENY is located in Yueqing City, the switch city of China.
We are specialized in solar DC components for 30 years.
The first DC switch manufacturer listed by AS 60947.3:2018 and UL508i in China.
Top 1 DC components and DC string box supplier in China.
