Solar DC Isolator Switch Disconnector 1000V 32A Waterproof Enclosed Switch

Solar DC switch disconnector

Used for DC Combiner Box

DIN Rail Mounting

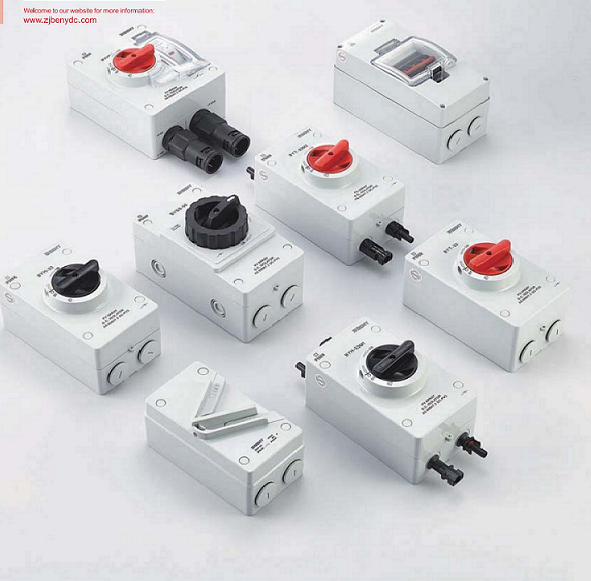

Picture:

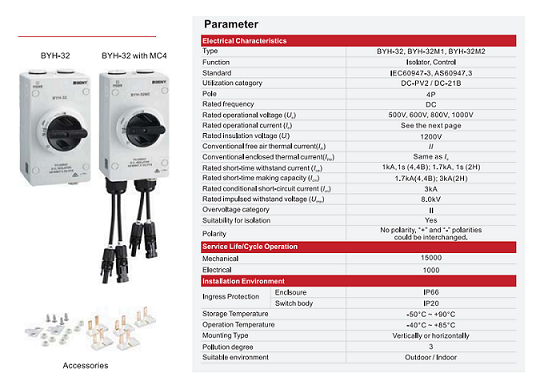

Product Features

1. Single hole mounting 22mm

2. Extremely short power shut off time of less than 3ms

3. IEC/EN60947-3 DC-21B certified

4. 2 Pole, 4 poles available(Single/Double String)

5. 12A,16A,25A,32A up to 1000VDC

6. Ample internal space for easier wiring

7. Padlockable handle

8. SAA, TUV, Rohs Certified

DC switch isolators for photovoltaic only

• The isolator has 4 seperate poles
• Jumpers can be used to change the way that the poles are connected
• Poles can be connected in series parallel or a variation of both series and parallel
• Interconnection of the poles dictates the load that the switch can make and break
• As the mumber of poles used increases so the load switching capacity of the device increases.

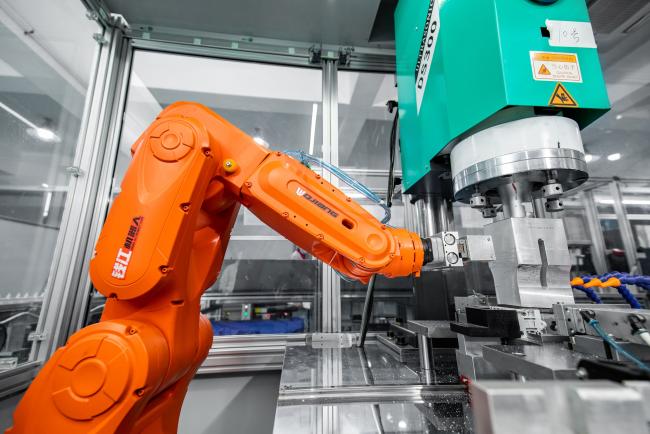

Workshop & Test machine:

• Our workshop is totally dust-free with 6S management methods.
• All workers are strictly trained to be qualified for every position.

Exhibition Show:

We attended 6 exhibitions in 2013. Our profesional products and service attracted many customers from different countries.
