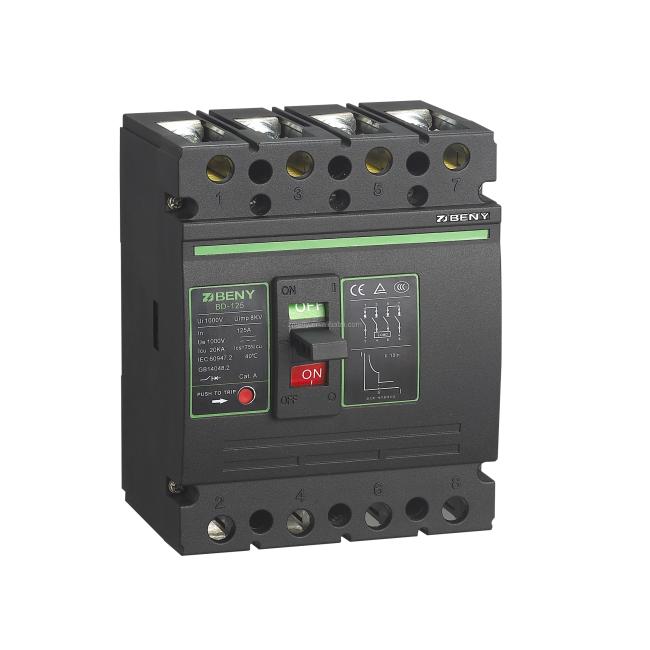

1000V 125A True DC MCCB Circuit Breaker for Solar Energy
True DC MCCB circuit breaker for battery systems
Specification:
* 1000Vdc 125A
* LATI PC plastic in UV resistance and Flame retardant tech.
* IEC 60947.2
* 5 years warranty for free replace
Technical data
| Model | BD-125 |
| Poles | 4P |
| Standard | IEC60947.2 |
| Utilization Category | DC-21B |
| Rated Operational Voltage (Ue) | 500V |
| Mechanical Cycle | 5000 |
| Electrical Cycle | 2000 |
| Protection Degree | IP20 body |
| Polarity | No Polarity |
| Certificate | SAA / TUV |
ZJBENY is located in Yueqing City, the switch city of China.
We are specialized in solar DC components for 30 years.
The first DC switch manufacturer listed by AS 60947.3:2018 and UL508i in China.
Top 1 DC components and DC string box supplier in China.
