Low Voltage Surge Protection Device SPD 1000V Type 2 DC SPD For Solar PV
surge protection device SPD 1000V Type 2 DC SPD for solar PV application
Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.
ZJBENY is the first company in China tests the SPD at the PV standard.
Recommend by top solar inverter companies.
https://www.solaredge.com/sites/default/files/lightning_surge_protection.pdf
Plug-in MOV modules
The surge protection device is consisting of a base part and 3 plug-in high energy MOV protection modules.
Remote signaling contact for monitoring device is for options.
With thermal disconnect mechanical inside for fault indication by red indicator flag.
Features:
* RoHS material
* 600V 1000V Type 2 DC SPD for solar PV application
* According to EN 50539-11, IEC 61643-31
* Thermal disconnect inside for fault indication
* 5 years warranty

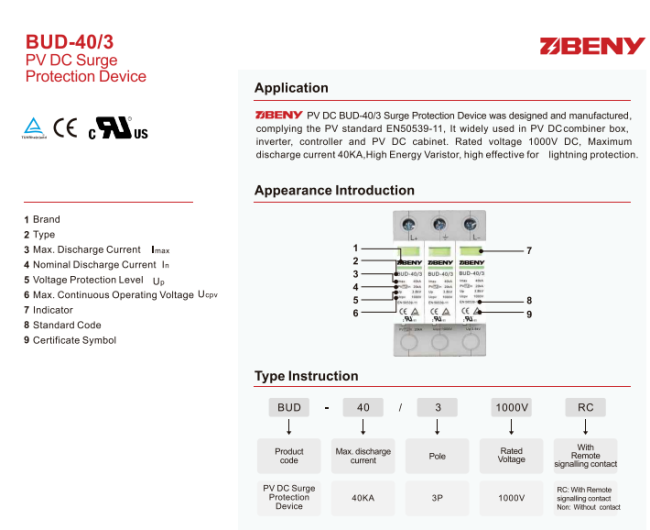

| Model | BUD-40/3 |
| Moulds | 3 |
| SPD according to EN 50539-11 | Type 2 |
| Open Voltage Uoc Max | 1000V |
| Max. discharge current (8/20 µs) [(DC+/DC-) –> PE] (Imax ) | 40KA |
| Nominal discharge current (8/20 µs) [(DC+/DC-) –> PE] (In ) | 20KA |
| Voltage protection level Up | ≤ 3.8KV |
| Response Time (tA ) | ≤ 25 ns |
| Operating state / fault indication | Green/Red |
| Remote Signalling Contact (optional) | Changeover contact |
| For mounting on | 35mm DIN rails |
| Degree of protection | IP20 |
| Certificate | TUV / UL |
Q:Can I get a sample before I place an order ?
A:Yes,of course and sample fee will be charged but it is refundable if you place order afterwards.
Q:When will I receive my order normally?
A:Normally , It takes 1 week from 1-100 pieces, 2 weeks from 100- 500 pieces, 3-4 weeks if it ups to 500 pieces..
Q:What is your payment methods ?
A:We can accept 100% TT via Alibaba .
Q:What is your shipping methods?
A:Normally we ship goods by express ,by air or sea.
Q:How long the warranty lasts for?
A:Our policy allows to exchange within 5 years.
