Highly recommended by Top solar inverter companies

ZJBENY brand SPD is highly recommended by SolarEdge, SMA and many top inverter companies, as a part of DC surge protection solutions in solar PV systems.

According to PV standard IEC 61643

The 1500V DC SPD BUD-1500 complies with standard IEC 61643-31:

Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.

ZJBENY is the first company in China tests SPD to the PV standard and the SPD is suitable for true RoHS. We are supplying the surge devices and solutions to top inverter companies worldwide.

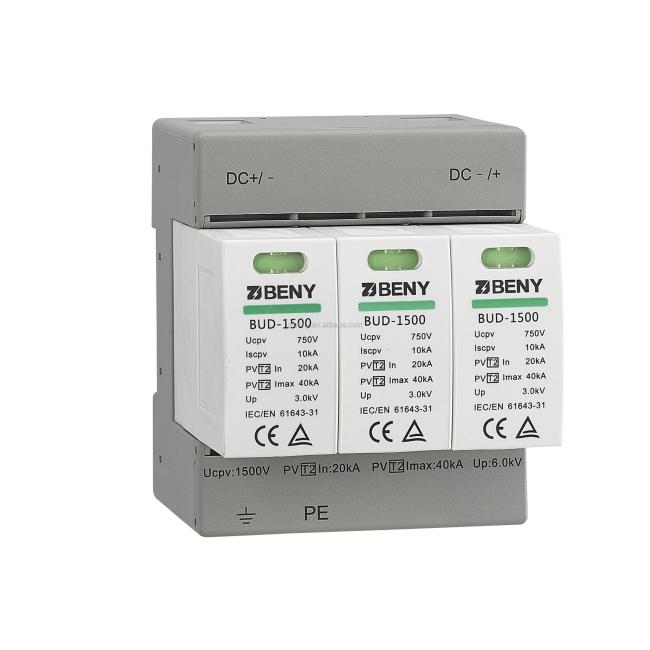

Plug-in MOV modules

The BUD-1500 surge protection device is consisting of a base part and 3 plug-in high energy MOV protection modules. Remote signalling contact for monitoring device is for options. With thermal disconnect mechanical inside for fault indication by red indicator flag.

1500V with TUV certificate.

Highlight:

* Type 2 DC SPD for 1500V solar photovoltaic application

* According to IEC 61643-31:2018

* 3 plug-in high energy MOV

* Thermal disconnect for fault indication

* Remote signal contact for options

* 5 years warranty and TUV certificate

Technical data

On each solar PV installation including ZJBENY, we design and supply DC string level protection for solar PV safety.Thousands of solar PV installations with 0 failure.

DC components/Solar combiner box, DC safety solutions for all kinds of photovoltaic systems.
