Solar System DC Surge Protection Device 2P 1000V For Lightning Protector
Price:
$11.50/pieces 56-111 pieces
MOQ:
56 pieces
Delivery Time:
Negotiable
Brand:
BENY
Product Description
BENY Surge Protector High Quality Solar System 2p 1000V DC Surge Protector for Lightning Protection
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Video Description
Product Specification
Product Introduction
|

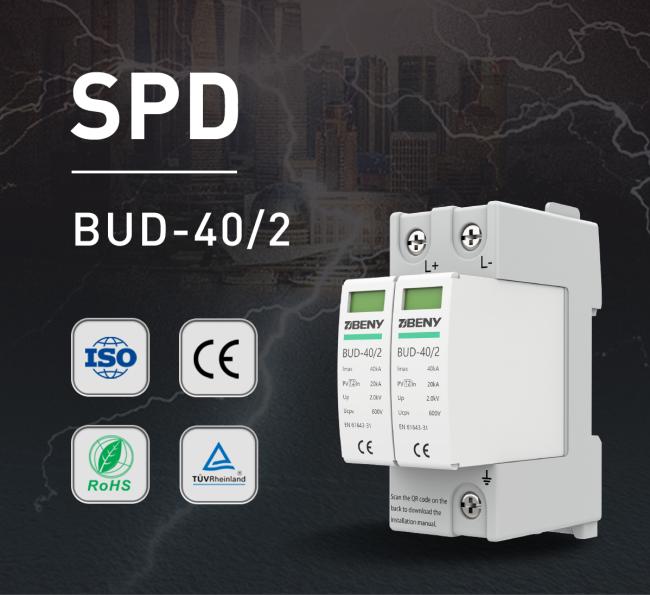

PV DC BUD-40/2 Surge Protection Device
|
|
|
||
|
Pole
|
|
2P
|
||
|
Standard
|
|
EN 61643-31
|
||
|
Electrical Characteristics
|
|
|
||
|
Category IEC/EN
|
|
IEC II/EN2
|
||
|
Open Voltage Uoc Max
|
|
600V DC
|
||
|
Max Continuous Operational Voltage Ucpv
|
|
600V DC
|
||
|
Nominal Discharge Current In(8/20)μs
|
|
20KA
|
||
|
Maximum Discharge Current Imax(8/20)μs
|
|
40KA
|
||
|
Voltage Protection Level Up
|
|
≤2.0KV
|
||
|
Response Time
|
|
≤25ns
|
||
|

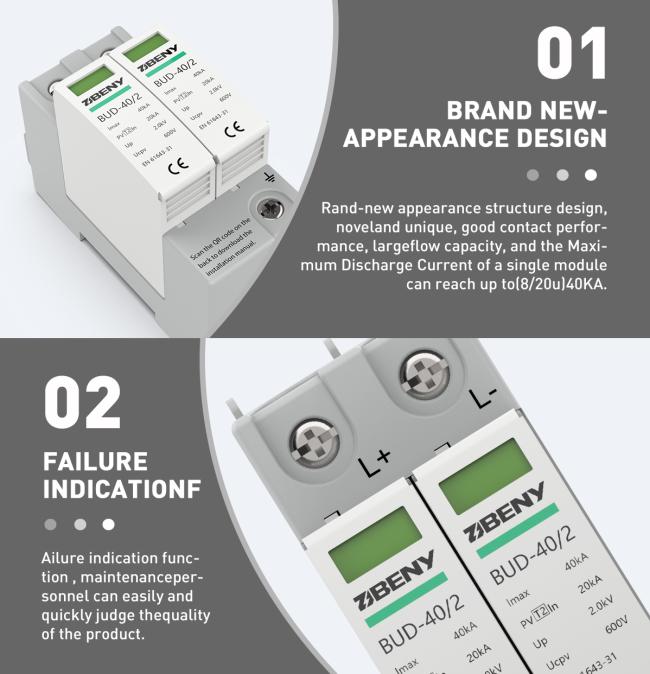

Control and Indication
|
|
|
||
|
Operating State/fault Indication
|
|
Green/Red
|
||
|
Remote Signalling
Contact(Optional) |
Max. Working Voltage(V)
|
30V DC
|
||
|
|
Max. Working Current
|
1A
|
||
|

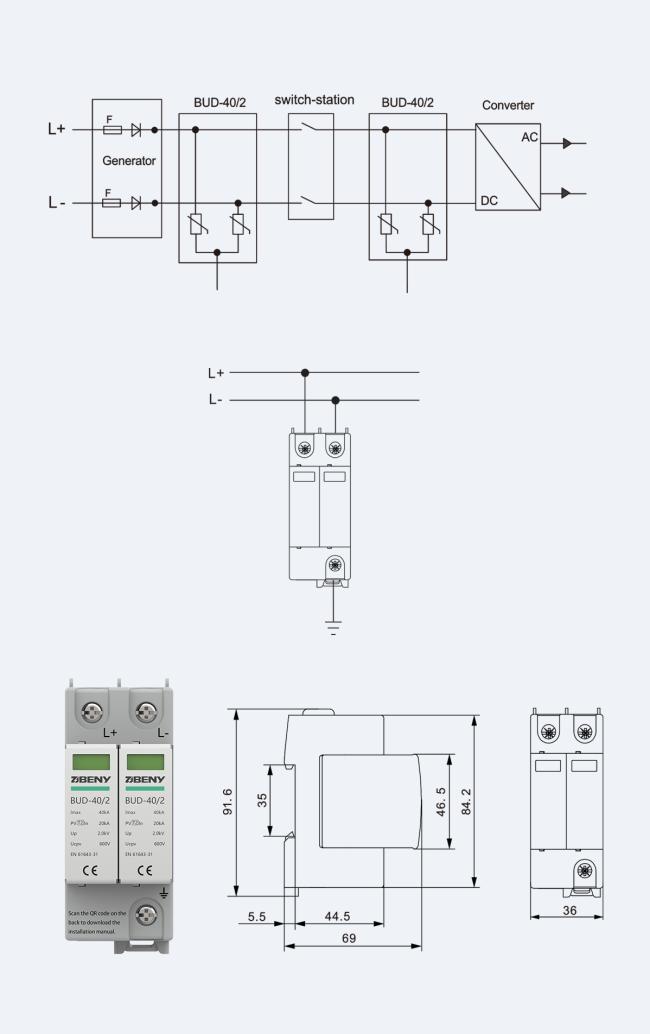

Connection and Installation
|
|
|
||
|
Wire
|
Hard cable mm²
|
4~25
|
||
|
|
Flexible cable mm²
|
4~16
|
||
|
Terminal Screws
|
|
M5
|
||
|
Torque(Nm)
|
Main Circuit
|
2.5
|
||
|
|
Remote Contact
|
0.25
|
||
|
Degree of Protection
|
|
IP20
|
||
|
Installation Environment
|
|
|
||
|
Operating Temperature Range (TU)
|
|
-40°C~+80°C
|
||
|
For Mounting on
|
|
TH35-7.5/DIN35
|
||
|
Relative Humidity
|
|
30%~90%
|
||
|
Weight kg
|
|
0.24
|
||
