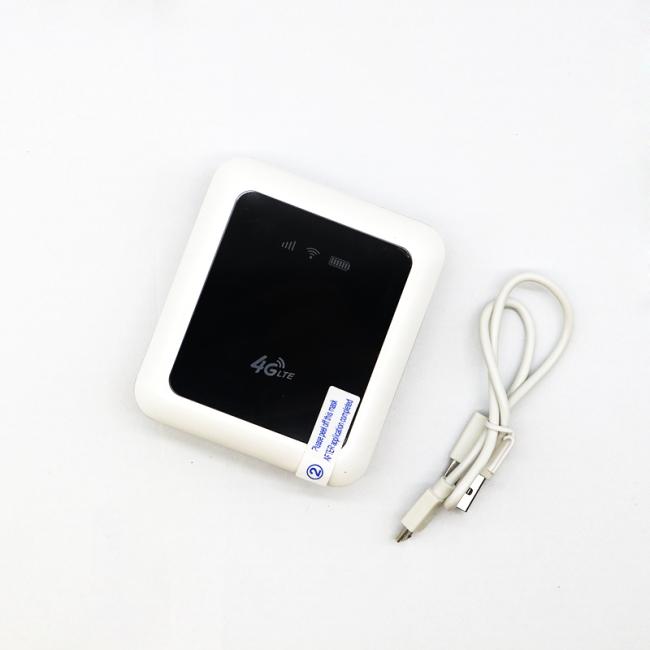

Outdoor Travelling 4G LTE Mobile Wifi Pocket Hotspot Router Mini Wireless Hotspot Modem Routers
| ◇ Basic Product Information | Item | Remark |
| ◇ Model | 4G LTE Router | WiFi hotspot |
| ◇ Platform | MDM9610 | |
| ◇ SA Time | 11.2016 | |
| ◇ Band/Mode | FDD-LTE: B1/B3/B5/B7/B8/B20 UMTS:B1/B8 GSM Quad Band |
|
| ◇ Type | Portable hotspot device with LCD or LED Light | |
| ◇ Size(mm) | 86*76*22mm | 123*109*41 |
| ◇ Weight(g) | 158 | |
| ◇ System memory | NandFlash 1Gb+512Mb | |
| ◇ HW Description | Item | Remark/Supplier |
| ◇ Main CPU or Co-CPU (MHz) | ||
| * CPU (MHz) | 550MHz | MDM9610 |
| * Air interfaces | GSM/GPRS/EDGE | DTM (simple class A), multislot class 12 |
| UMTS | R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL |
|
| FDD-LTE | Cat3 100 Mbps DL / 50Mbps UL | |
| ◇ WIFI | ||
| * Frequency Band | 2.4GHz | |
| * 802.11b/g/n | up to 150Mbps | Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz) |
| * User amount | Up to 10 | |
| * AP Features | Security modes | Open WEP WPA-PSK WPA2-PSK WPA-WPA2 Hybrid mode (Mixed Mode) TKIP-CCMP Hybrid mode (Mixed Mode) WPS 2.0 Hidden SSID supported |
| Concurrency (FC quality for LE1.0) | AP-STA mSSID (AP-AP) – up to 2 SSID's STA-STA communication block/allow between two SSIDs Independent security modes (Open, WEP, WPA, WPA2, WAPI) for concurrency modes above except WEP in both interfaces Channel of operation - same channel |
|
| Other | QoS and PS WMM WMM-PS/uAPSD ERP protection Coexistence LTE coexistence (static channel selection) Data Switching/Forwarding Switching of packets amongst clients Support for forwarding data to and from WAN VPN Pass-through |
|
| ◇ Interface | ||
| * Antenna | 4G/3G/2G Main antenna 4G MIMO/3G Rx Diversity antenna WiFi antenna |
Internal |
| * LCD | 1.46" 128×128 TFT | |
| * USB | Micro USB | USB 2.0 High Speed |
| * SIM/USIM Card slot | Yes | Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 |
| * Micro-SD Card slot | Yes | |
| *尺寸 L*H*W (mm) | 86*76*22mm | |
| *Weight(g) | 252g | |
| ◇ Button | ||
| * Power | Yes | |
| * WPS | Yes | |
| * Reset | Yes | |
| ◇ Battery | Item | Remark/Supplier |
| * Lion battery | 5200mAh | 18650 Lion Battery with PowerBank |
| ◇ Other Description | Item | Remark/Supplier |
| ◇ Electrical performance spec | ||
| * RF Power Spec | Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 |
|
| ◇Environmental reliability test condition | ||
| * Normal Operation | 0°C to +45°C | |
| * Restricted Operation | -10°C to +55°C | |
| * Storage | -20°C to +70°C | |
| ◇ Compliance | ||
| * ROHS | YES, EU RoHS | |
| * JATE | Yes | |
| * TELEC | Yes | |
| * PSE | YES | |
| * others | depend on customer required | |
