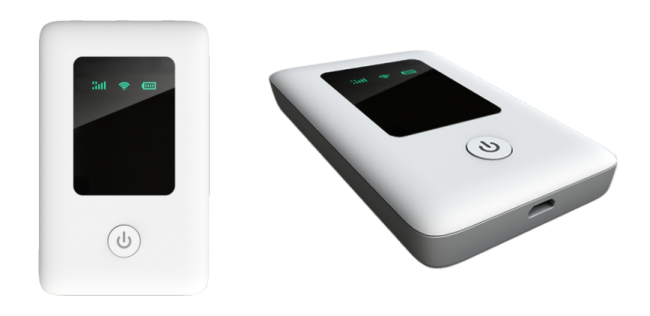

CAT 4 4G LTE WiFi Router With LCD Dual Antenna ZX297520V3 2100mAh Battery
Price:
US$22-US$25/PC
MOQ:
1
Delivery Time:
5-8 working days
Brand:
SY
Product Description
4G LTE WiFi Router with LCD, Dual Antenna, CAT.4, ZX297520V3, 2100mAh
ID Specifications
Item ID: GW105
Dimension: 96.5*59.5*15mm
Weight: 86.9g
Weight: 86.9g
Hardware Specifications
CPU: ZX297520V3
Standard: 3GPP Release 9
UE Category: CAT.4
Wi-Fi: 2.4GHz (802.11 b/g/n compliant)
Display mode: 1.45 inch LCD (Optional screen)
Battery capacity: 2100mAh
Usage time: 6-8 hours battery life, 72 hours standby
LED Indicators: Power Wi-Fi/ Internet /Signa Strength
SIM: 3FF USIM (support 1.8V / 3.0V)
Power Button: Tact switch x1
Reset Button: Tact switch x1
Power Supply: Input: Universal range 100~240V AC; Output: 5V/ 1A DC (Micro USB length 30cm)
RF Specifications
|
Feature
|
Capability
|
Comments
|
|||
| Min | Typ | Max | Unit | ||
| LTE Max Transmit Power | 22 | dBm | Compliant with 3GPP with margin | ||
| LTE Receiver Sensitivity (FDD) | -93 | dBm | Compliant with 3GPP with margin | ||
|
LTE Antenna Support
Frequency
|
703 | 2690 | MHZ | ||
| Wi-Fi Channel @ 2.4GHz |
Ch 1~13
|
||||
|
2.4GHz
Wi-Fi Channel BW
|
20/40
|
MHZ | |||
| Wi-Fi Power level | 14 | dBm | 11b | ||
| 13 | dBm | 11g | |||
| 11 | dBm | 11n | |||
| Wi-Fi Sensitivity 11n |
≤- 69
|
dBm | |||
Environmental Specifications
|
Feature
|
Capability
|
Comments
|
|||
|
Min
|
Typ | Max | Unit | ||
| Operating temperature | 0 | 40 |
℃
|
||
| Storage temperature | -20 | 45 |
℃
|
||
| Operating humidity | 10 | 85 | % | ||
| Storage humidity | 10 | 85 | % | ||
EMC Specifications
| Feature | Standard | Capability | Comments |
| Immunity to ESD | EN 61000 -4-2 | Compliant | Air +/8 KV; Contact +/-4KV |
| Immunity to burst | EN 61000 -4-4 | Compliant | L/N/L-N+/-1KV |
| Immunity to surge | EN 61000 -4-5 | Compliant | L-N+/-1KV |
| Immunity to Conducted RF disturbances |
EN 61000 -4-6 | Compliant | 0.15-80 MHz |
| Immunity to Voltage Dips and short interruption |
EN 61000 -4-11 | Compliant | |
| Harmonic current emissions |
EN 61000 -3-2 | Compliant | |
| Voltage fluctuations and flicker |
EN 61000 -3-3 | Compliant | |
| Conducted emission test, class-B |
EN 55022 | Compliant | 0.15-30 MHz |
Software Specifications
|
Networking
|
||||
|
No.
|
Feature
|
Status
|
Comments
|
|
| 1 |
Ipv4
|
Support
|
||
| 2 |
Ipv6
|
Support
|
||
| 3 |
Ipv4/ v6 dual stack
|
Support
|
||
| 4 | NAT Mode |
Support
|
Customizable
|
|
| 5 | DHCP Server |
Support
|
||
| 6 |
NTP Client
|
Support
|
||
| 7 |
HTTP Server
|
Support
|
Customizable
|
|
| 8 |
Dynamic NAT
|
Support
|
Customizable
|
|
| 9 |
Manual APN configuration
|
Support
|
||
| 10 |
IP address reservation from DHCP IP pool
|
Support
|
||
| 11 |
Check status of DHCP IP address pool
|
Support
|
||
| 12 |
DHCP IP Pool Modification
|
Support
|
||
| 13 |
DHCP Subnet mask modification
|
Support
|
||
| 14 |
DNS modification
|
Support
|
||
| 15 |
SMS over SGs Func at LTE
SMS's receiving and reading
|
|||
|
Device Management
|
||||
| No. | Feature | Status | Comments | |
| 1 |
Web Access (Remote/Local)
|
Support
|
||
| 2 |
Configuration from web
|
Support
|
||
| 3 |
Admin Password-web
|
Support
|
||
| 4 |
User Password-web
|
Support
|
||
| 5 |
Factory default reset
|
Support
|
||
| 6 |
Firmware update through web
|
Support
|
||
| 7 |
Tr069
|
Support
|
Customizable
|
|
| Status | ||||
| No. | Feature | Status | Comments | |
| 1 |
User Name/ Password configuration
|
Support
|
||
| 2 |
Wi-Fi SSID/ Password configuration
|
Support
|
||
| 3 |
Firewall
|
Support
|
||
| 4 |
IP Filter
|
Support
|
||
| 5 |
MAC Filter
|
Support
|
||
| 6 |
URL Filter
|
Support
|
Customizable
|
|
| Wi-Fi | |||
| No. | Feature | Status | Comments |
| 1 |
Network Name (SSID)
|
Support
|
|
| 2 |
SSID Broadcast
|
Support
|
|
| 3 |
Broadcast Switch
|
Support
|
|
| 4 |
802.11 b/g/n Mode selection
⚫ 802.11b
⚫ 802.11g
⚫ 802.11n
⚫ 802.11 b/g/n
|
Support
|
|
| 5 |
Encryption algorithm
⚫ None
⚫ WPA-PSK
⚫ WPA2-PSK
|
Support
|
|
| 6 |
Bandwidth selection 20M, 40M, 20/40MHz
|
Support
|
Factory Default
20/40MHz
|
| 7 |
Maximum users
|
10 users
|
2.4 GHz
|
Package Content
| Item | Description | Remarks |
| GW105 MIFI | X 1 | |
| USB cable | X 1 | 5V 1A |
| Manual book | X 1 |
