4G LTE Wifi Router With Sim Card Slot, 1*10/100/1000M RJ45 And 1*10/100M RJ45
Technical Parameter
| Module | Parameters |
| User interface |
1*10/100/1000M RJ45 1*10/100M RJ45 1*POTS; |
| PON |
EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Transmission distance:20KM |
|
GPON: upstream 1.25Gbps/downstream 2.5Gbps Transmitting optical power: 0.5~5dBm Optical receive sensitivity:-7dBm~-28dBm |
|
|
EPON:upstream 125Gbps/downstream 1.25Gbps Transmitting optical power: 0~4dBm Optical receiver sensitivity:>-7~-27dBm |
|
| Ethernet |
1*10/100/1000M+1*10/100Mauto-negotiation Full/half duplex mode |
| POTS Port |
1*RJ11 connector Balanced Ring,55V RMS |
| Size | 140mm(L)X90mm(W)X30mm(H) |
| Environment |
Operating temperature:0°C~60°C Operatinghumidity:10%~85%(non-condensing) Storage temperature:-40°C~80°C Storage humidity:5%~95%(non-condensing) |
| Power supply |
12V/1A DC |
| Power | <7W |
| Management |
WEB/TELNET/TR069/OMCI/OAM |
Voice Service Functions
- With the heartbeat function, support the main producing soft exchange platform
- Support high / low speed mode transparent transmission, T38 two fax
- Support 1 POTS interface and the three party call, three party support local mixing
- Support POTS port GR909 line test functionSupport dynamic PPPOE, DHCP and static IP
- 7* 24 hour call loss is less than or equal to 0.01%
- Support SIP (compatible with IMS), H.248, MGCP three VolP protocol, and the soft switch platform the mainstream can be good intercommunication
- Support ITU-T G.711, G.723.1, G.729 and other three kinds of compressionalgorithm; echo cancellation conforming to ITU-T G.168-2002, an echo cancellerfor the longest 128m
- Support high-speed Modem (56Kbps) dial access; support RFC2833 andredundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, thehotline, alarm clock, abbreviated dialing and other value-added services
Ordering Information
| Product Model | Descriptions |

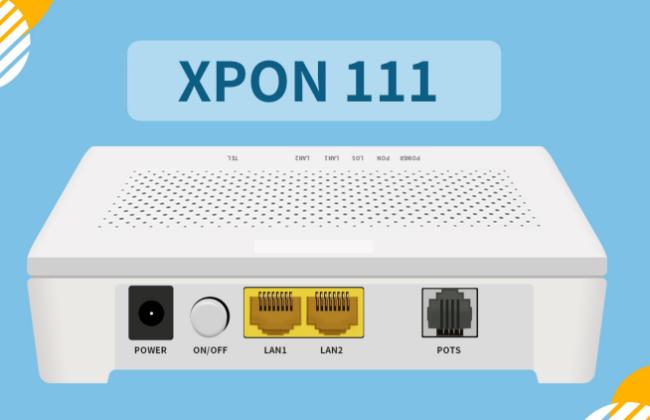

| XPON 111 |
1*10/100/1000M+1*10/100MEthernetinterface(RJ45) |
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
Q6. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
