Marine Rubber Airbag Launching Balloon For Dock Land Launch Boat Vessel
Marine Rubber Airbag Launching Balloon for Dock Land Launch Boat Vessel
Description

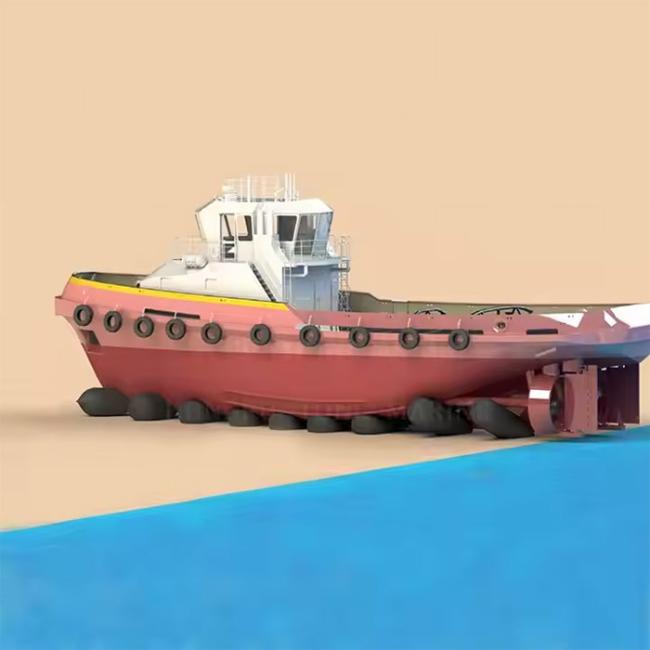

Rubber Airbags have transformed ship launching by providing a flexible and portable alternative to dry docks. These airbags are placed beneath the hull and inflated to lift and roll vessels into the water. Their ability to distribute weight evenly ensures smooth and safe launching, even for large ships.
Constructed with reinforced rubber layers, these airbags can withstand heavy loads and repeated use. Their resistance to saltwater and UV rays ensures durability during prolonged exposure. Rubber Airbags eliminate the need for permanent infrastructure, making them a cost effective solution for shipyards worldwide.
Specifications
| Item | Description |
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Material | NBR |
| Diameter | 0.5m-3.0m, or as Request |
| Length | 1.0m-28.0m, or as Request |
| Working Pressure | 0.05-0.25 mpa |
| Technics | High pressure, overall winding, explosion-proof |
| Use | ship launching and docking |
| Thickness | 5-13 ply |
| Standard | Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories | Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |

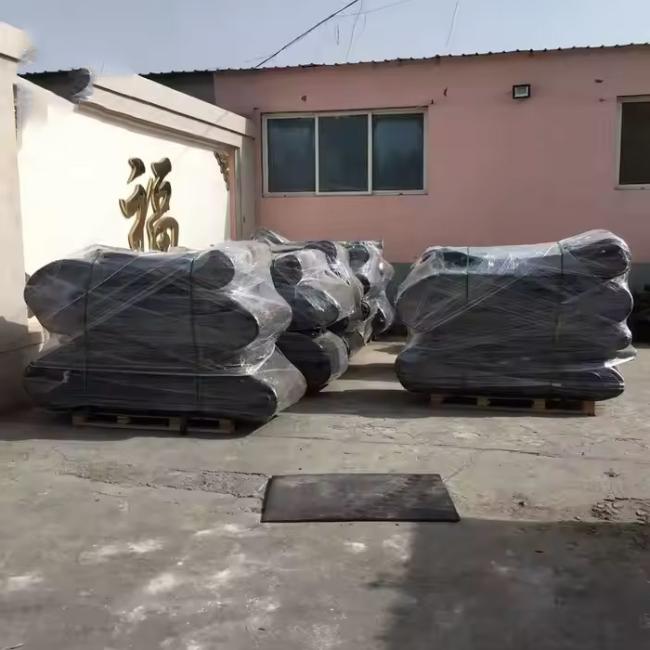

| Packaging | Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords | Rubber Airbag |
| Certificates | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ | 1 |
| OEM | Welcome |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be produced follow client's requirements. | ||||
Features
Quick Deployment
Designed for fast inflation and immediate use, reducing project downtime.
Portable
Lightweight and easy to transport, making them ideal for use in remote locations.
Compact Storage
Deflates and folds into a compact size for easy storage when not in use.
Simple Inflation Process
Can be inflated with air compressors, making the setup process easy and quick.
Applications
● Deepwater exploration support
● Temporary vessel buoyancy in dry docks
● Transport of submerged equipment
● Underwater salvage of shipwrecks
Advantages
Commitment to Innovation
Continuous product innovation to meet evolving market demands.
On Time Delivery
Reliable shipping and delivery schedules to ensure timely project completion.
Specialized Applications
Capability to design products for niche or specialized marine applications.
Proven Safety Record
Reliable products that help reduce the risks involved in marine operations.
FAQ
1. How much weight can a Rubber Airbag support?
The weight capacity varies by size and model, typically ranging from a few tons to over 200 tons.
2. Can Rubber Airbags be used in saltwater environments?
Yes, they are designed to resist saltwater corrosion and perform effectively in marine environments.
3. Are Rubber Airbags reusable?
Yes, Rubber Airbags are reusable, provided they are well-maintained and stored properly.
4. How do you inflate a Rubber Airbag?
They can be inflated using manual pumps, electric air compressors, or other standard inflation equipment.
