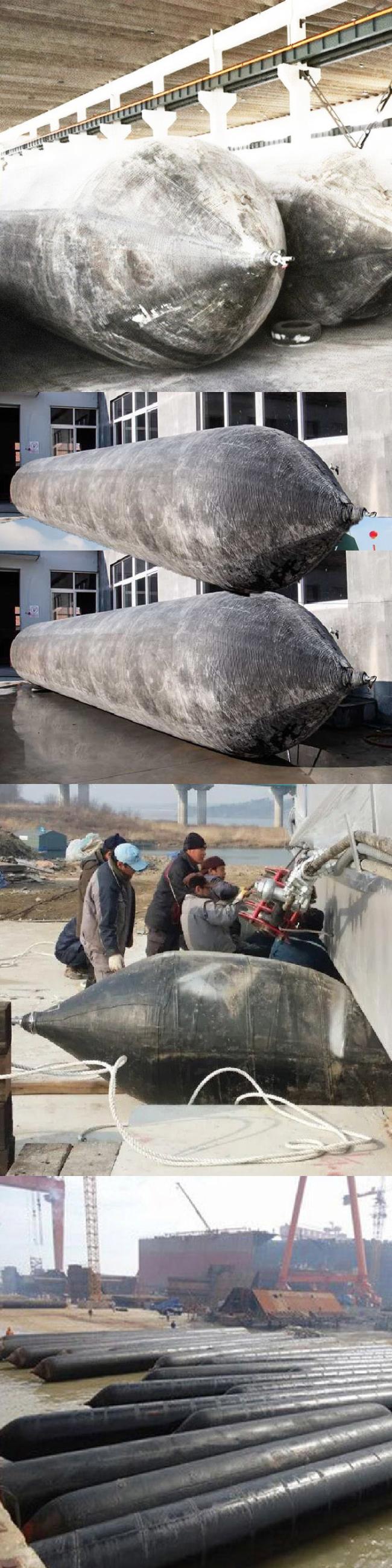

3M Boat Air Bags Marine Balloon Ship Launching Lifting Salvage Rubber Airbag
Boat Air Bags Marine Balloon Ship Launching Lifting Salvage Rubber Airbag
Description
Specifications
| Item | Description |
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Model Number | HM-BAB359 |
| Material | Industrial-Grade Natural Rubber |
| Diameter | 0.5m-3.0m, or as Request |
| Length | 1.0m-28.0m, or as Request |
| Working Pressure | 0.05-0.25 mpa |
| Technics | High pressure, overall winding, explosion-proof |
| Use | ship launching and docking |
| Thickness | 5-13 ply |
| Standard | Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories | Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |
| Packaging | Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords | Boat Air Bags |
| Certificates | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ | 1 |
| OEM | Welcome |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be produced follow client's requirements. | ||||
Features
Low Maintenance
Requires minimal maintenance, reducing operational costs and making it easy to keep in working condition.
Multiple Applications
Suitable for a wide range of applications, including boat launching, salvage, towing, and lifting operations.
Pressure Sensitive Valves
Equipped with pressure release valves for safe operation and to prevent over-inflation.
Safe and Reliable
Designed to meet international safety standards, offering peace of mind during use.
Applications
● Launching newly built vessels.
● Hauling vessels for maintenance and repairs.
● Refloating stranded or grounded ships.
● Salvaging sunken vessels.
Advantages
Durability
Our Boat Air Bags are designed to withstand extreme conditions, ensuring long-lasting performance and reduced maintenance costs.
Strong R D Team
Our dedicated research and development team constantly innovates to improve product designs and incorporate the latest technological advancements.
High Quality Materials
We use only premium materials to manufacture our Boat Air Bags, ensuring superior strength and durability.
Comprehensive Testing
Each Boat Air Bag undergoes rigorous testing, including pressure testing and durability trials, before being released for sale.
FAQ
1. What is a Boat Air Bag?
A Boat Air Bag is an inflatable device used to provide buoyancy and assist in launching, recovering, or salvaging boats.
2. How does a Boat Air Bag work?
Boat Air Bags work by being inflated with air, which provides flotation and support for vessels during various marine operations.
3. Can a Boat Air Bag be used for both small and large boats?
Yes, Boat Air Bags come in a variety of sizes to accommodate both small recreational boats and larger commercial vessels.
4. What materials are Boat Air Bags made from?
Boat Air Bags are made from durable rubber or synthetic materials, designed to resist wear, tear, and environmental damage.
