NBR Marine Rubber Airbag And NBR Marine Rubber Airbag
NBR Marine Rubber Airbag and Launching Airbag for Ship Marine
Description
Heavy-Duty Marine Rubber Airbag Our Heavy Duty Marine Rubber Airbags are specifically designed for challenging tasks requiring high load-bearing capacity. Built with thicker rubber layers and reinforced polyester fabric, these airbags can lift and support large vessels and offshore structures.
Hongruntong Marine ensures that each airbag is tested for strength and durability, guaranteeing reliable performance in demanding environments. These airbags are perfect for offshore projects and heavy cargo relocation, offering superior stability and safety.
Specifications
| Item | Description |
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Material | NBR |
| Diameter | 0.5m-3.0m, or as Request |
| Length | 1.0m-28.0m, or as Request |
| Working Pressure | 0.05-0.25 mpa |
| Technics | High pressure, overall winding, explosion-proof |
| Use | ship launching and docking |
| Thickness | 5-13 ply |
| Standard | Conducted by ISO14409 and GB/T1590-2006 system. |
| Accessories | Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube |
| Packaging | Inner-Plastic Bag; Outer-Standard Wooden Pallets. |
| Keywords | Rubber Airbag |
| Certificates | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| MOQ | 1 |
| OEM | Welcome |
| Diameter |
Working Pressure |
Working Height |
Bearing Capacity | |
| KN/m | Ton/m | |||
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 | ||
| 0.4m | 131.95 | 13.46 | ||
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 | ||
| 0.5m | 131.95 | 13.46 | ||
| 0.4m | 150.80 | 15.39 | ||
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 | ||
| 0.7m | 125.66 | 12.82 | ||
| 0.6m | 141.37 | 14.43 | ||
| 0.5m | 157.08 | 16.03 | ||
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.37 | 14.43 | ||
| 0.7m | 155.51 | 15.87 | ||
| 0.6m | 169.65 | 17.31 | ||
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 | ||
| 1.0m | 125.66 | 12.82 | ||
| 0.9m | 138.23 | 14.11 | ||
| 0.8m | 150.80 | 15.39 | ||
| 0.7m | 163.36 | 16.67 | ||
| 0.6m | 175.93 | 17.95 | ||
| * Other size can be produced follow client's requirements. | ||||
Features
Extreme Temperature Tolerance
Effective in both high and low-temperature environments.
Abrasion Resistance
Engineered to resist wear from abrasive surfaces.
Tear Resistance
Reinforced fabric prevents tearing during heavy load-bearing operations.
Weatherproof
Designed to perform reliably in a variety of weather conditions.
Applications

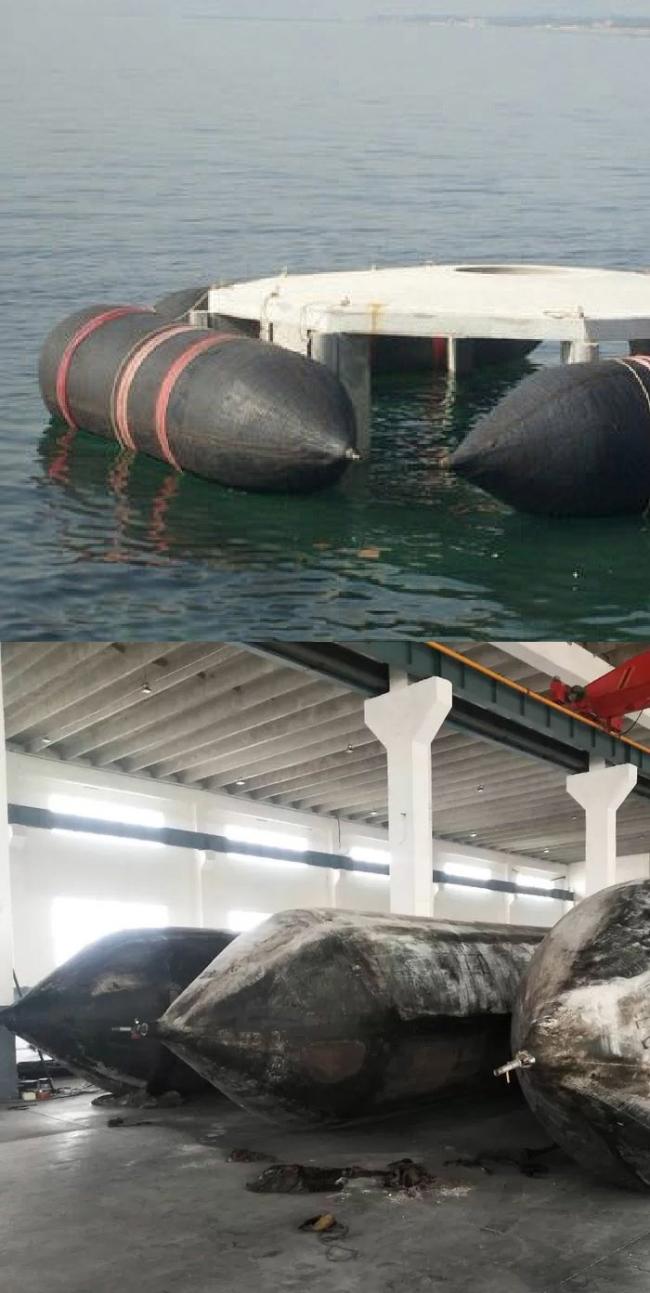

● Salvage operations
● Offshore platform relocation
● Oil rig repositioning
Advantages
ISO Certification
Adherence to international quality standards and certifications.
Strong R D Capabilities
Dedicated research and development team focused on innovation and product improvement.
High Load Capacity
Capable of handling massive weights, from small boats to large vessels.
Durability in Harsh Conditions
Designed to withstand saltwater, UV radiation, and extreme temperatures.
FAQ
1. Are Rubber Airbags environmentally friendly?
Yes, they are reusable and made from eco-friendly materials, reducing their environmental impact.
2. What industries use Rubber Airbags?
Industries such as shipbuilding, marine salvage, construction, oil and gas, and heavy machinery commonly use Rubber Airbags.
3. Can Rubber Airbags handle extreme temperatures?
Yes, they are designed to perform in a wide temperature range, typically from -20°C to 60°C.
4. How do I choose the right Rubber Airbag for my project?
Consider factors like the weight and size of the object, environmental conditions, and the specific application to select the right airbag.
