Crane Load Test Water Bags Enhanced Safety Features Equipped With Overpressure Valves And Reinforced Seams
Price:
US$220-US$320
MOQ:
1
Delivery Time:
5-6 Work Days
Brand:
Hongruntong Marine
Product Description
Crane Load Test Water Bags Enhanced Safety Features Equipped With Overpressure Valves And Reinforced Seams
Description
Our Crane Load Test Water Bags are manufactured using high strength PVC-coated polyester fabric, ensuring durability and resistance to harsh environmental conditions. The material is rigorously tested for UV resistance, abrasion, and puncture protection, making it highly reliable for repeated use. The reinforced seams and robust lifting points enhance the longevity of the bags, allowing them to withstand extreme loads without failure.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) | |
| BPA Free / Tris Free / Formaldehyde Free | |
| Does Not Contain Conflict Minerals | |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources | |
| Available sizes | 5000 kg |
| 8,000 kg | |
| 1,0000 kg | |
| 15,000 kg | |
| 20,000 kg | |
| 30,000 kg | |
| 50,000 kg | |
| 100,000 kg | |
| Special sizes could be customized | |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) |
Filled Height (Length) |
Max Diam (ø) |
Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg | |
| lbs | USG | ft | ft | ft | lbs | |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 | |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 | |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 | |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 | |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 | |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 | |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 | |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 | |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 | |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 | |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 | |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 | |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 | |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 | |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 | |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Leak Proof Design
Uses high-frequency welded seams to ensure no water leakage during testing.
Reduced Manpower Requirement
Easy handling and setup require fewer personnel, lowering operational costs.
Proven Performance
Used by professionals worldwide for reliable and efficient load testing.
Trusted Manufacturer
With over 30 years of experience, our company guarantees superior quality and expert craftsmanship.

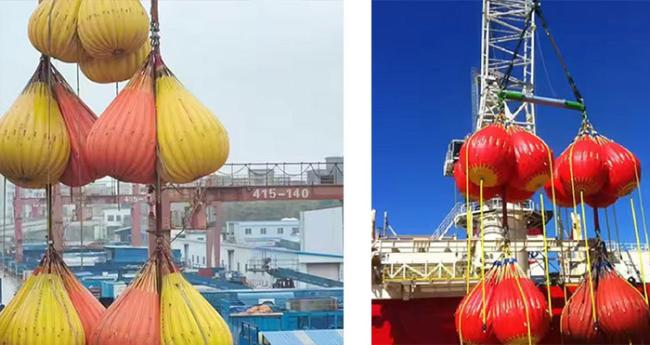

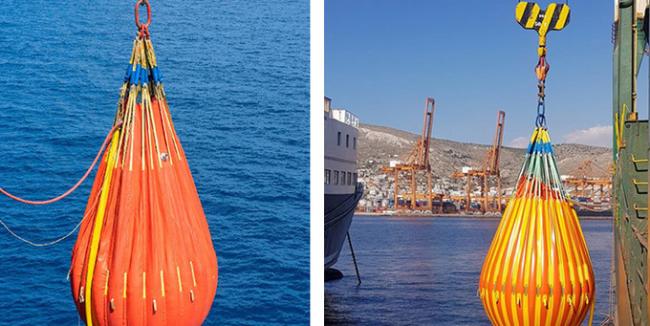

Applications
● Davit and Lifeboat Load Testing
● Bridge and Gantry Crane Testing
● Construction Site Crane Load Testing
Advantages
Over 30 Years of Manufacturing Experience
Decades of expertise in producing high-quality crane load test water bags.
Strict Quality Control
Every product undergoes rigorous inspection and testing to ensure safety and reliability.
Premium Grade Materials
Made from high-strength, PVC-coated polyester fabric with excellent durability and resistance.
Customizable Solutions
We offer tailored designs, including different capacities, shapes, and branding options.
FAQ
1. Do you provide technical support and guidance?
Yes, we offer technical support, operation guidance, and on-site assistance if required.
2. What happens if a water bag is punctured during testing?
Our water bags are designed with reinforced materials to resist punctures, but in case of damage, we provide repair kits and replacement options.
3. Are water bags environmentally friendly?
Yes, they use water as a load, reducing environmental impact compared to solid weights, and are made from recyclable materials.
4. How can I order or get a quotation for your water bags?
You can contact us via email, phone, or our website with your requirements, and we will provide a detailed quotation and consultation.
