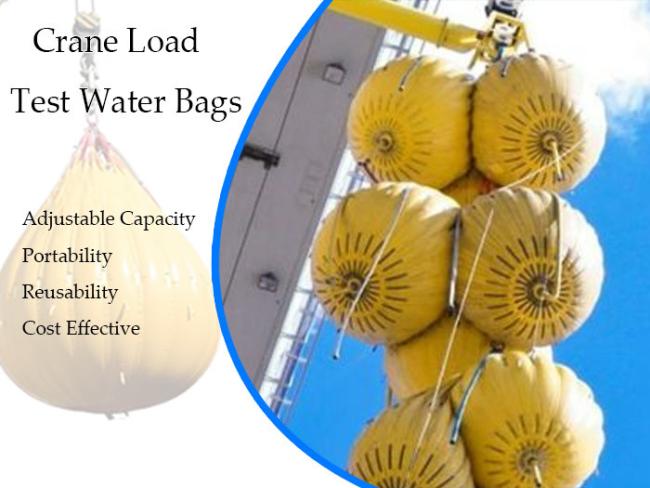

Crane Load Test Water Bags Temperature Pressure Resistant Performs Well In Extreme Conditions
Price:
US$20-US$150
MOQ:
1
Delivery Time:
5-6 Work Days
Brand:
Hongruntong Marine
Product Description
Crane Load Test Water Bags Temperature Pressure Resistant Performs Well In Extreme Conditions
Description
Safety is our top priority. Our water bags feature heavy-duty stainless steel lifting rings, pressure relief valves, and secure filling and discharge systems to ensure controlled water flow during testing. The stable design minimizes load shifts and prevents sudden pressure fluctuations, reducing risks and ensuring safe and reliable crane load testing. Additionally, all our products comply with international safety standards, ensuring their suitability for various industrial applications.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH) | |
| BPA Free / Tris Free / Formaldehyde Free | |
| Does Not Contain Conflict Minerals | |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources | |
| Available sizes | 5000 kg |
| 8,000 kg | |
| 1,0000 kg | |
| 15,000 kg | |
| 20,000 kg | |
| 30,000 kg | |
| 50,000 kg | |
| 100,000 kg | |
| Special sizes could be customized | |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) |
Filled Height (Length) |
Max Diam (ø) |
Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg | |
| lbs | USG | ft | ft | ft | lbs | |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 | |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 | |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 | |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 | |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 | |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 | |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 | |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 | |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 | |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 | |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 | |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 | |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 | |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 | |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 | |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Minimal Environmental Impact
Uses water as a test load, making it an eco-friendly alternative to traditional weights.
Compatible with Various Cranes
Suitable for offshore, shipyard, industrial, and construction crane testing.
Heavy-Duty Lifting Accessories
Comes with high-strength shackles, slings, and fittings for secure attachment.
Precision Load Testing
Allows accurate measurement and adjustment of test loads for precise calibration.
Applications
● Emergency Lifting Equipment Certification
● Aerospace Ground Support Load Testing
● Manufacturing Facility Overhead Hoist Testing
Advantages
Compliance with International Standards
Our products meet global safety certifications, including ABS, DNV, LEEA, and ISO.
Advanced Welding Technology
High-frequency welding ensures strong, leak-proof seams for long-lasting performance.
Heavy-Duty Lifting Accessories
Supplied with robust shackles, slings, and reinforced lifting points for maximum safety.
Lightweight Portable
Easy to transport, store, and handle compared to traditional solid weights.
FAQ
1. Do you provide accessories with the water bags?
Yes, we provide necessary accessories such as filling hoses, discharge valves, shackles, and load cells.
2. What is the minimum working temperature for the water bags?
Our water bags can operate in temperatures ranging from -30°C to 70°C.
3. How do you inspect a water bag before use?
Inspect the bag for any visible damage, leaks, or wear on seams, and ensure all fittings are properly attached.
4. Can multiple water bags be used together for testing?
Yes, multiple water bags can be connected and used simultaneously for large-scale load tests.
