Comprehensive comparison of industrial applications of silicon carbide ceramic nozzles and alumina ceramic nozzles
Product Description
In high-wear industries like cement, steel, and thermal power, nozzle selection directly impacts production efficiency and costs. Silicon carbide (SiC) and alumina (Al₂O₃) are two mainstream ceramic nozzle materials. This article provides an in-depth comparison of these materials based on wear resistance, corrosion resistance, service life, and cost, helping you choose the best option for your specific application.
In demanding industrial applications such as sandblasting, dust cleaning, desulfurization, and spray cooling, nozzles must withstand the constant erosion of high-speed particles and the corrosive effects of chemical media. Ceramic materials, due to their exceptional hardness and wear resistance, are an ideal metal replacement. Silicon carbide ceramic nozzles and alumina ceramic nozzles are our two main products, each with its own unique advantages and suitable for different scenarios.
Product Core Advantages and Differentiation Analysis
Core Advantages of Silicon Carbide Ceramic Nozzles
Ultra-Long Service Life: In high-wear conditions such as tailings conveying and coal washing, the service life is 1.5-3 times that of 99% alumina nozzles, reducing downtime and replacement frequency and lowering operation and maintenance costs.
Adaptability to Harsh Operating Conditions: Its dual advantages of high-temperature and strong corrosion resistance make it suitable for high-temperature corrosive environments such as continuous casting cooling in steelmaking, denitrification spray guns for thermal power boilers, and spraying in chemical reactors.
Stable Operating Performance: The dense crystal structure makes the flow channel resistant to wear and deformation. Even after long-term use, atomization uniformity remains above 90%, ensuring process stability and reducing product quality fluctuations.
Core Advantages of Alumina Nozzles
High Cost-Effectiveness: At only 30%-60% of the price of silicon carbide ceramic nozzles, it offers the best cost-effectiveness for medium-to-low-wear, ambient-temperature conditions such as cement production line dust removal and port spraying. - Good Formability: It can be manufactured into complex, custom-shaped spray structures, such as fan, cone, and spiral spray patterns, to suit diverse atomization needs.
Established Application System: With mature production processes and high-quality stability, it has established comprehensive selection and application solutions for small and medium-sized industrial applications.
| Performance Dimensions | Silicon Carbide Ceramic Nozzle | Aluminum Oxide Nozzle | Advantages |
| Mohs hardness | 9.2 (second only to diamond) | 8.5-9.0 (increases with increasing aluminum oxide content) | Silicon carbide is harder and more scratch-resistant. |
| Wear Resistance (Relative Value) | 1.0 (Baseline Value) | 0.4-0.7 (92% Aluminum Oxide: 0.4, 99% Aluminum Oxide: 0.7) | Silicon carbide has significantly better wear resistance than aluminum oxide and a longer service life. |
| High-temperature resistance | Long-term operating temperature: 1200°C, short-term operating temperature: 1600°C | Long-term operating temperature: 800-1100°C (the higher the content, the higher the temperature). | Long-term operating temperature: 800-1100°C (the higher the content, the higher the temperature). |
| Corrosion Resistance | Resistant to strong acids, strong bases, and molten metals, but not resistant to hydrofluoric acid. | Resistant to neutral and weak acids and bases, but susceptible to damage in highly corrosive environments. | Silicon carbide offers comprehensive corrosion resistance and is suitable for complex corrosion conditions. |
| Impact Resistance | Flexural Strength 400-500 MPa, Medium Toughness | Flexural Strength 300-450 MPa (Toughness Slightly Lower with High Alumina Content) | Silicon Carbide Has Slightly Better Impact Resistance and Greater Resistance to Operating Vibration |
| Atomization Performance | Flow channel smoothness Ra ≤ 0.8 μm, atomization uniformity ≥ 95% | Flow channel smoothness Ra ≤ 1.2 μm, atomization uniformity 90%-95% | Silicon carbide atomization is more uniform, resulting in higher fluid delivery efficiency |
Export Market Coverage
Both products have been validated in the international market. Core export markets include: the cement and mineral processing industries in Southeast Asia (Vietnam, Thailand, and Malaysia); the thermal power and chemical industries in the Middle East (Saudi Arabia and the UAE); the steel and construction machinery industries in Europe (Germany and Italy); and the coal and port industries in the Americas (the United States and Brazil). We have established long-term partnerships with over 120 companies in over 30 countries.
Packaging and Transportation Solutions

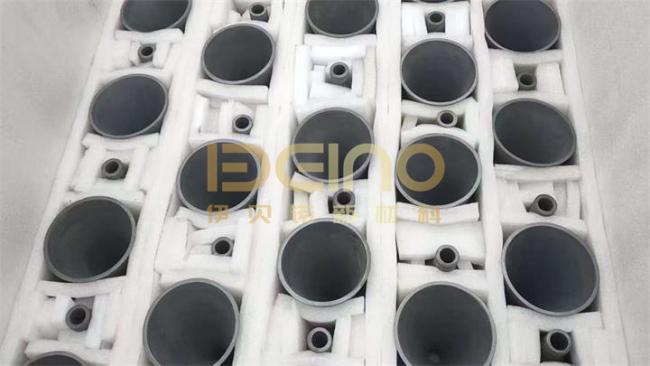

Packaging: We utilize a four-level protective packaging system consisting of individual EPE foam packaging, anti-static bubble wrap, layered rigid cartons, and reinforced wooden pallets to ensure damage-free transportation.
Transportation Guarantees: We partner with renowned logistics companies such as DHL, FedEx, and COSCO Shipping, offering a variety of shipping methods, including sea, air, and land transport. We can offer various trade terms, including door-to-door (DDP) and port-to-port (CIF), tailored to customer needs. Full logistics information is traceable.
