ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100
ISUZU 600P 130hp 21m Telescopic Boom Bucket Truck Aerial Work Manlift Truck
Product Description

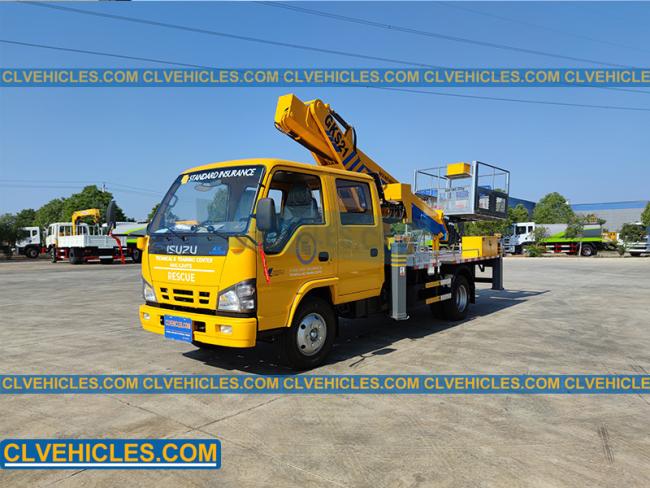

Japan Brand New 600P Telescopic Boom 21m bucket Aerial Truck
-About Aerial Platform Truck:
Our unique design operation system of three-section telescopic boom could help the worker stable operation in the air.
The main purposes are: maintaining, installing, cleaning, camera shooting, ship bulding, chemical industry, electric power, pruning and streetlight changing etc. in the air from 8m to 24m height.
-Characteristics:
1. The boom is made of high-strength steel plate HQ60/5mm welded and formed, and the outriggers are made of low-alloy Q345 profile, with no welds around, beautiful appearance, strong force and high strength;
2. The cylinder drive chain drives the telescopic arm to expand and contract synchronously, which is stable and reliable;
3. H-shaped outriggers have good stability, the outriggers can be operated at the same time or individually, and the operation is flexible and can adapt to a variety of working conditions;
4. The turntable rotates in two directions at 360°, and adopts an advanced worm and worm integrated closed reduction mechanism; (with self-lubricating and self-locking functions)
5. Automatic control by controller, with display screen, set protection mode to limit amplitude, safe and reliable;
6. Two-position operation of getting off the car and the hanging basket, electro-hydraulic proportional speed regulation;
7. Getting off and getting on is interlocked, the operation is safe and reliable;
8. The hanging basket adopts advanced static hydraulic automatic leveling, which is more stable and reliable;
9. There are engine start and stop switches for getting off the car and the hanging basket, which is easy to operate and save fuel;
Product Parameters
| Vehicle Description | |||||
| Vehicle model | Platform Truck | Overall dimensions(mm) | 7385×1980×3140 | ||
| GVW (kg) | Appro×7000 | Operational height (m) | 18 | ||
| Mass in working order (kg) | Appro×6165 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Cab | Double row cab with A/C | ||||
| Wheel base (mm) | 3815 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2000 | |||
| Rear axle | 4800 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Oil brake | ||||
| Transmission | 5-speed MSB | ||||
| Tire specification | 7.00R16 | ||||
| Engine Description | |||||
| Engine manufacture | ISUZU Engines | ||||
| Engine model | 4KH1CN5HD | ||||
| Emission standard | Euro 5 | ||||
| Up-parts Description | |||||
| Bucket | |||||
| Max. working highe (m) | 21m | ||||
| Max. working radius (m) | 8 | ||||
| Rated loading (kg) | 200 | ||||
| Size (mm) | 1100*600*1200 | ||||
| Type | Insulation type | ||||
| Boom | |||||
| Type | Three section , Telescopic | ||||
| Rotation Angle | 360 | ||||
| Rotation speed (r/min) | 0-2 | ||||
| Boom Control mode |
1.Bucket control 2.Manual operation |
||||
| Outrigger | |||||
| Type | H | ||||
| Vertical Breadth (mm) | 4000 | ||||
| Horizontal Breadth (mm) | 4000 | ||||
| Adjustment | Adjusted separately | ||||

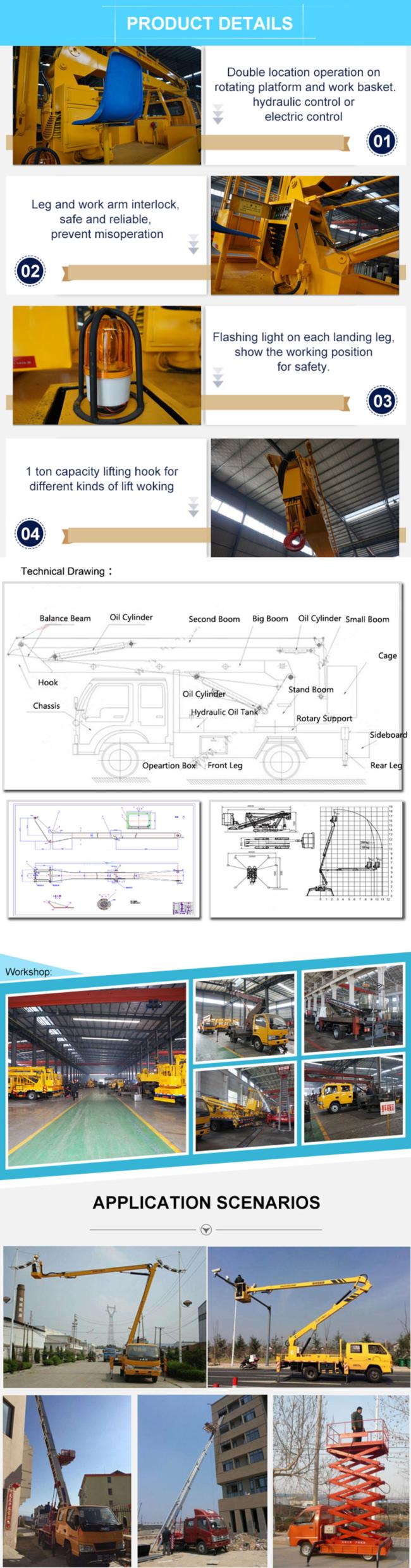

Product Details
