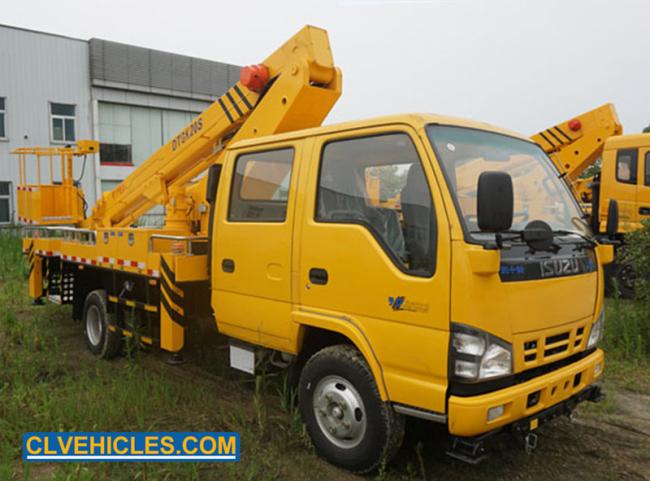

Straight Arm 600P ISUZU Aerial Platform Truck
Price:
USD 50200- USD 55200/ UNIT
MOQ:
1 UNIT
Delivery Time:
45-60 work days
Brand:
ISUZU
Product Description
ISUZU 600P Hydraulic Trailer Boom Lift Tables Straight Arm Aerial Work Vehicle
Product Description
Product Parameters
| Vehicle Description | |||||
| Vehicle model | Platform Truck | Overall dimensions(mm) | 7385×1980×3140 | ||
| GVW (kg) | Appro×7000 | Operational height (m) | 18 | ||
| Mass in working order (kg) | Appro×6165 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Cab | Double row cab with A/C | ||||
| Wheel base (mm) | 3815 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2000 | |||
| Rear axle | 4800 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Oil brake | ||||
| Transmission | 5-speed MSB | ||||
| Tire specification | 7.00R16 | ||||
| Engine Description | |||||
| Engine manufacture | ISUZU Engines | ||||
| Engine model | 4KH1CN5HD | ||||
| Emission standard | Euro 5 | ||||
| Up-parts Description | |||||
| Bucket | |||||
| Max. working highe (m) | 16m | ||||
| Max. working radius (m) | 8 | ||||
| Rated loading (kg) | 200 | ||||
| Size (mm) | 1100*600*1200 | ||||
| Type | Insulation type | ||||
| Boom | |||||
| Type | Three section , Telescopic | ||||
| Rotation Angle | 360 | ||||
| Rotation speed (r/min) | 0-2 | ||||
| Boom Control mode |
1.Bucket control 2.Manual operation |
||||
| Outrigger | |||||
| Type | H | ||||
| Vertical Breadth (mm) | 4000 | ||||
| Horizontal Breadth (mm) | 4000 | ||||
| Adjustment | Adjusted separately | ||||
