100P 98hp 12M ISUZU Aerial Platform Truck
Price:
USD 31600- USD 39200/ UNIT
MOQ:
1 UNIT
Delivery Time:
45-60 work days
Brand:
ISUZU
Product Description
ISUZU 100P 98hp 12M Telescopic Aerial Platform Truck
Product Description
Product Parameters
| Vehicle Description | |||||
| Vehicle model | Platform Truck | Overall dimensions (mm) | Approx. 6000*2050*3050 | ||
| GVW (kg) | Approx.5555 | Operational height (m) | 27 | ||
| Mass in working order (kg) | Approx.4995 | Max. Speed (km/h) | 90 | ||
| Chassis Description | |||||
| Chassis brand | ISUZU | ||||
| Cab | Single row cab with A/C | ||||
| Wheel base (mm) | 3360 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2000 | |||
| Rear axle | 3000 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Oil brake | ||||
| Transmission | 5-speed MSB | ||||
| Tire specification | 7.00-15 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine manufacture | ISUZU Engines | ||||
| Engine model | 4JB1CN | ||||
| Type | Water-cooled four-stroke, supercharged inter-cooling | ||||
| Emission standard | Euro 4 | ||||
| Up-parts Description | |||||
| Working condition | |||||
| Max. working height (m) | 12 | ||||
| Working radius at Max. height (m) | 2 | ||||
| Max. working radius (m) | 8 | ||||
| Working height at Max. radius (m) | 9 | ||||
| Control mode |
1.Bucket control 2.Manual operation |
||||
| Bucket | |||||
| Rated loading (kg) | 250 | ||||
| Size (mm) | 1400*700*1100 | ||||
| Material | Stainless steel | ||||
| Adjusting balance mode | Hydrostatic Leveling System | ||||
| Safety belt | 1 set | ||||
| Boom | |||||
| Type | Telescopic type | ||||
| Section | 3 | ||||
| Rotation Angle | 360 | ||||
| Thickness of boom plate (mm) | 4 | ||||
| Max. rising angle of boom | -20º ~ +75° | ||||
| Outrigger | |||||
| Type | Front V type / Rear H type | ||||
| Vertical Breadth (mm) | 4000 | ||||
| Horizontal Breadth (mm) | 4000 | ||||
| Number | 4 | ||||
| Adjustment | Adjusted separately | ||||
| Supporting leg Control mode | Manual hydraulic operation | ||||
| Hydraulic lock | Two-way hydraulic lock for four legs | ||||
| Strobe light on rear landing legs | Two yellow lights | ||||
| Main body structure | |||||
| Material | High quality carbon steel and profiles, with slip-proof decorative steel plates | ||||
| Tool box | Mould stamping door with stainless steel door lock | ||||
| Fencing | Stainless steel tube | ||||
| Steps | With steps on drivers’ side | ||||
| Guard railing | High quality cold bending carbon steel profile; High strength | ||||
| Wheel casing | Injection mold molding, beautiful, high strength | ||||
| Security configuration | |||||
| Automatic interlock device for different operating position | Prevent the risk of misoperation | ||||
| Hand-operated emergency pump | When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state | ||||
| Emergency stop device for working platform | Used for emergency stop operation and restricted boom operation | ||||
| Automatically limit work range | When the working range reaches the specified value, the dangerous direction is automatically restricted. | ||||
| Leakage protection device | Equipped with leakage protector to ensure the safety of power supply and power tools | ||||

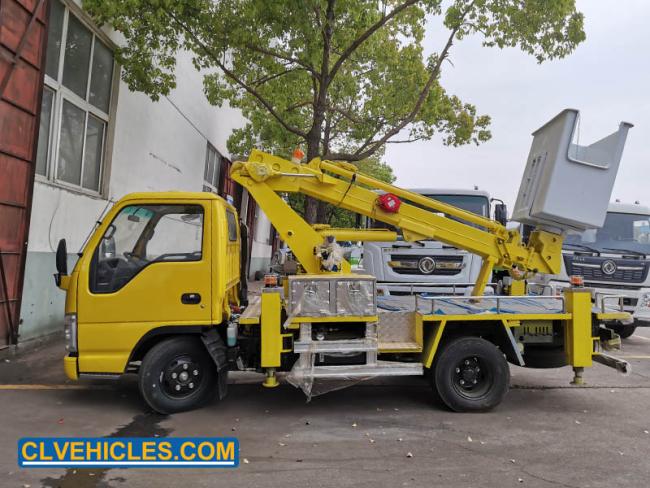

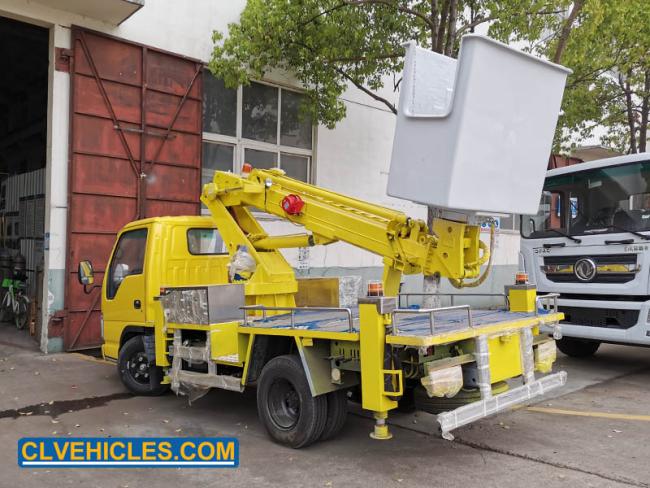

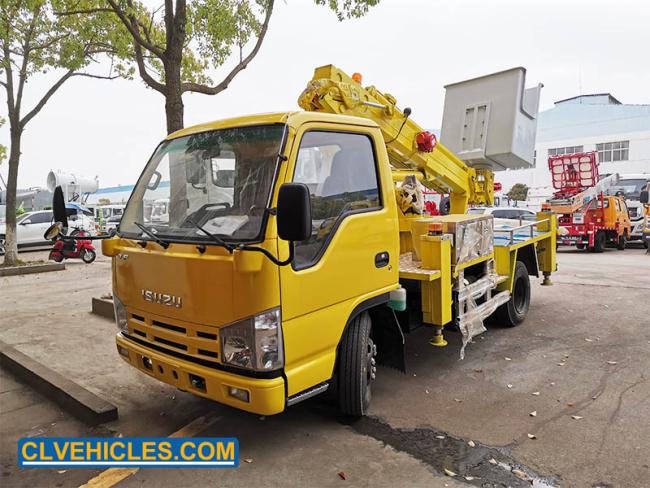

Product Images
1![]()

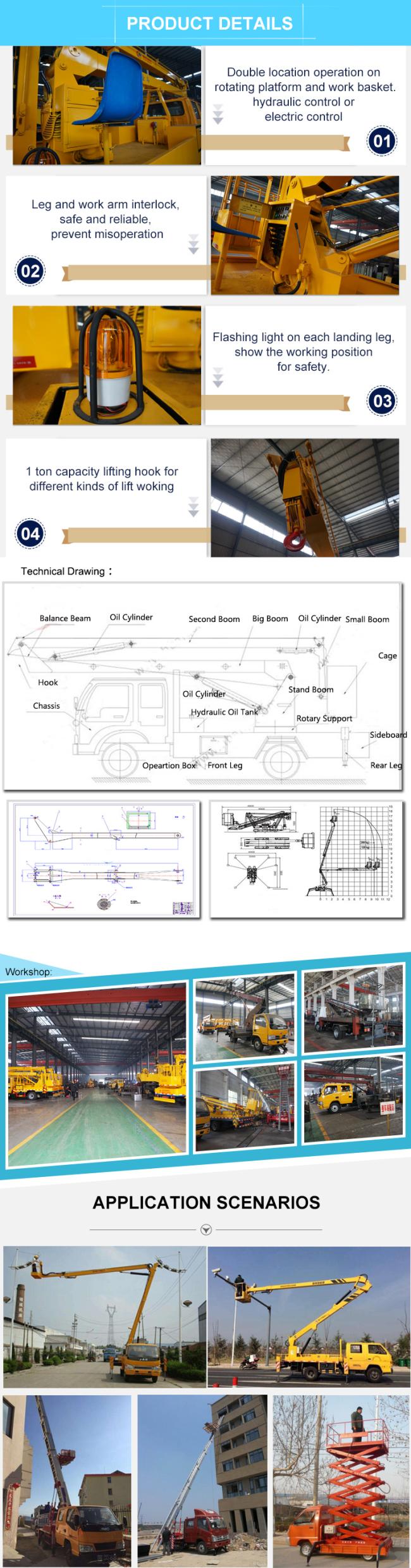

Product Details
